Low Noise Operational Amplifier, Replace MCP6L74
SGM8624
SGM8624.pdf
SGM8624.pdfFEATURES
• Rail-to-Rail Input and Output 3mV Maximum VOS
• High Gain-Bandwidth Product: 3MHz
• High Slew Rate: 1.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 2.3μs
• Low Noise: 17.5nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current SGM8622/4: 210μA/Amplifier
• Small Packaging TSSOP-14 and SOIC-14

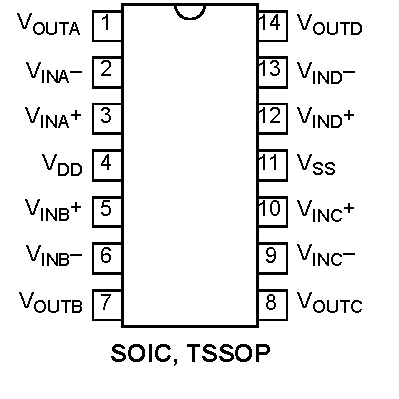

PIN CONFIGUTION
CROSS
FEATURES
• Gain Bandwidth Product: 2 MHz (typical)
• Supply Current: IQ = 150 μA (typical)
• Supply Voltage: 2.0V to 6.0V
• Rail-to-Rail Input/Output
• Extended Temperature Range: –40°C to +125°C
• Available in Single, Dual and Quad Packages
PIN CONFIGUTION
