Low power comparator,SGM8712 Replace TP2012.
SGM8712
SGM8712.pdf
SGM8712.pdfFEATURES
• Ultra Low Power Consumption:
300nA/Channel (TYP) at VS = 1.4V
• Wide Supply Voltage Range: 1.4V to 5.5V
• Propagation Delay: 6μs (TYP) at VS = 1.4V
• Push-Pull Output Current Drive:
19mA (TYP) at VS = 5V
• Rail-to-Rail Input and Output
• -40℃ to +85℃ Operating Temperature Range
• Available in Green MSOP-8 Package
PIN CONFIGUTION
CROSS
FEATURES
• Ultra-Low Supply Current: 200 nA per channel
• Fast Response Time: 13 μs Propagation Delay,
with 100 mV Overdrive
• Internal Hysteresis for Clean Switching
• Offset Voltage: ± 2.0 mV Maximum
• Offset Voltage Temperature Drift: 0.3 μV/°C
• Input Bias Current: 6 pA Typical
• Input Common-Mode Range Extends 200 mV
• Push-Pull Output with ±25 mA Drive Capability
• Output Latch (TP2011N Only)
• No Phase Reversal for Overdriven Inputs
• Low Supply Voltage: 1.6V to 5.5V

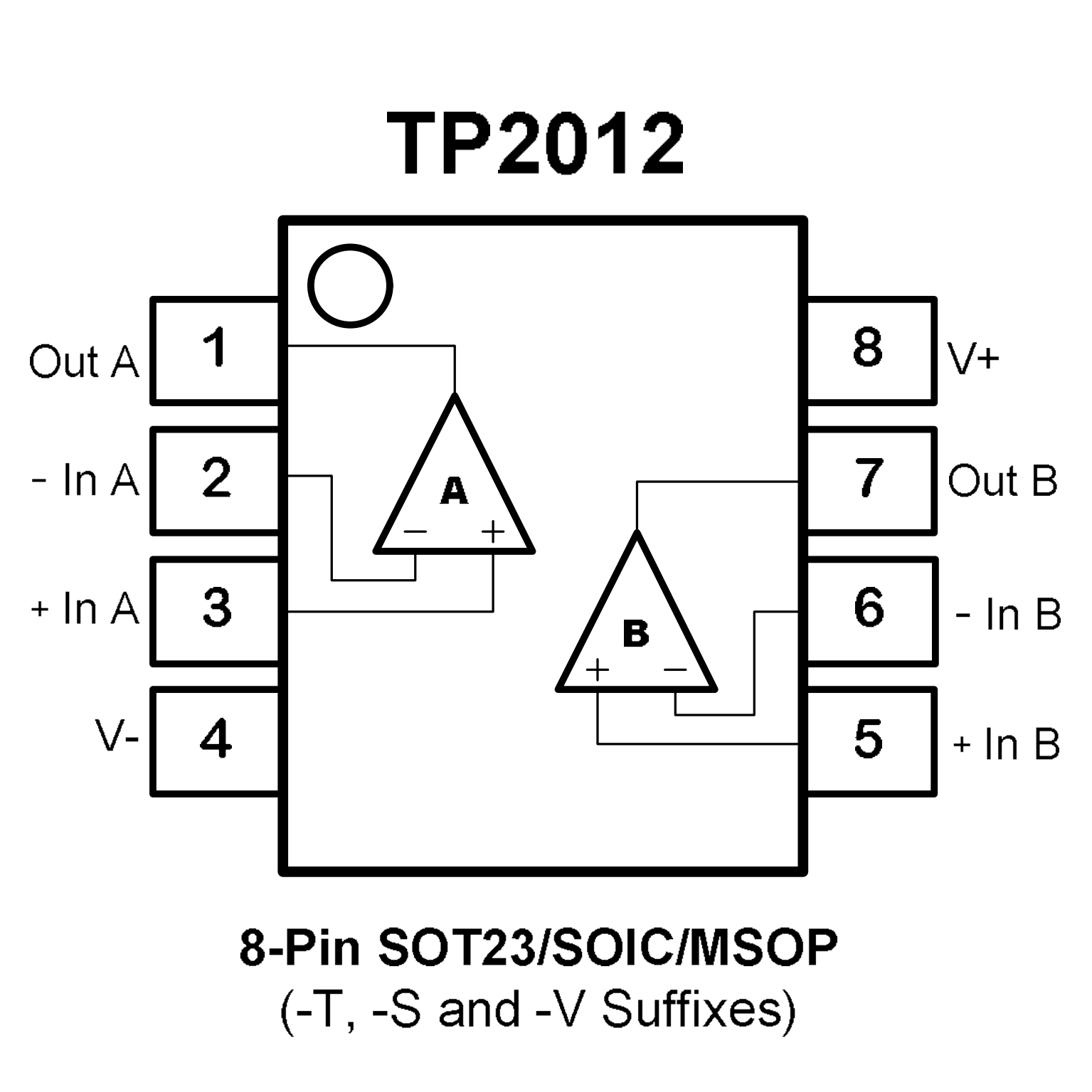

PIN CONFIGUTION
