Nano-Power, Small Size,Low Voltage Comparators,SGM8713A-1 Replace LMV7272.
SGM8713A-1
SGM8713A-1.pdf
SGM8713A-1.pdfFEATURES
• Ultra-Low Supply Current: 300nA (TYP)
• Low Propagation Delay: 5μs (TYP)
• Supply Voltage Range: 1.6V to 5.5V
• Rail-to-Rail Input Common Mode Voltage
• Different Output Structures
Push-Pull Output: SGM8713A-1
Open-Drain Output: SGM8713B-1
• Internal Hysteresis: 6mV (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green XTDFN-0.8×0.8-4L Package

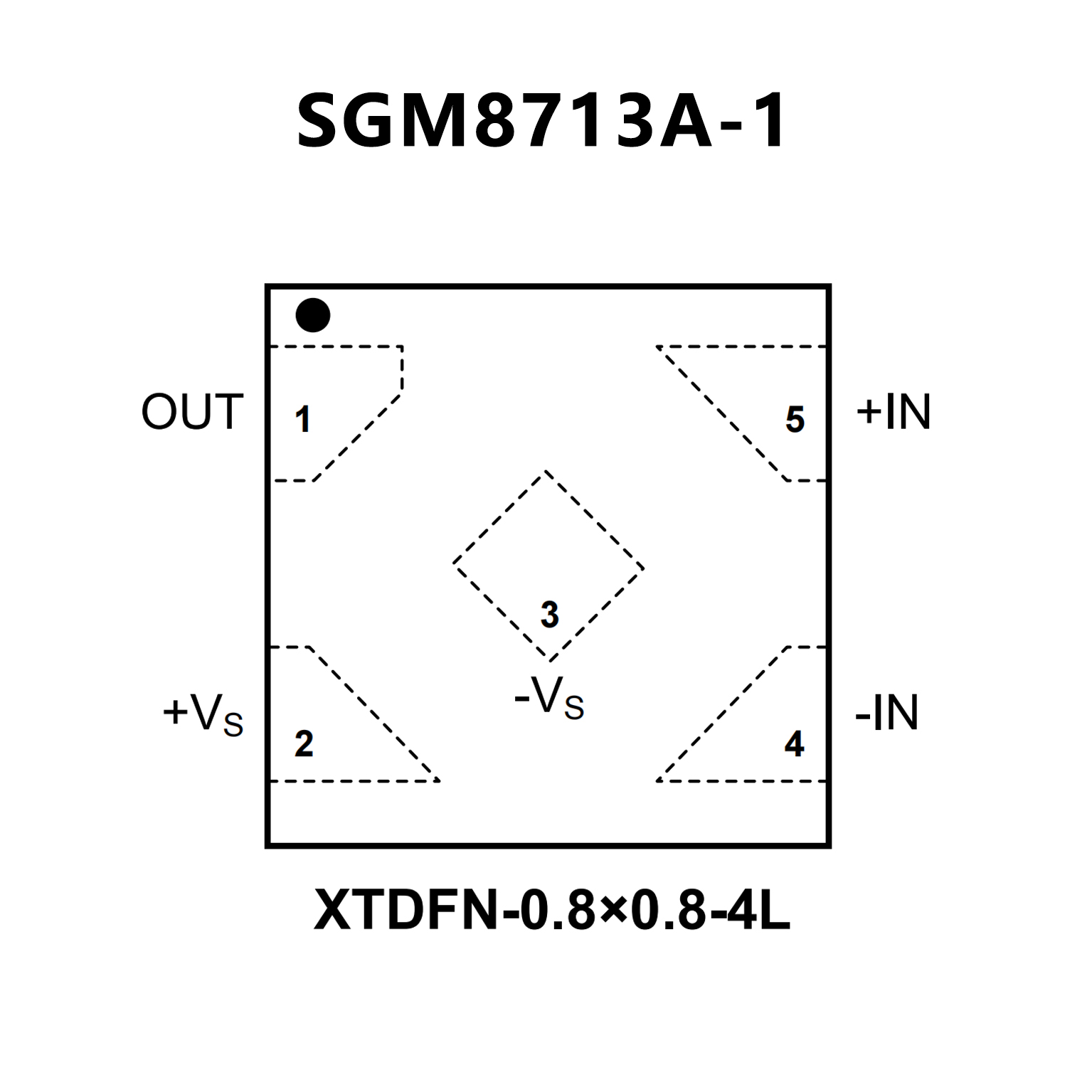

PIN CONFIGUTION
CROSS
FEATURES
• (VS = 1.8 V, TA = 25°C, Typical Values Unless Specified).
• Single or Dual Supplies
• Ultra Low Supply Current 9 µA Per Channel
• Low Input Bias Current 10 nA
• Low Input Offset Current 200 pA
• Low Ensured VOS 4 mV
• Propagation Delay 880 ns (20-mV Overdrive)
• Input Common Mode Voltage Range 0.1 V Beyond Rails
• LMV7272 is Available in DSBGA Package

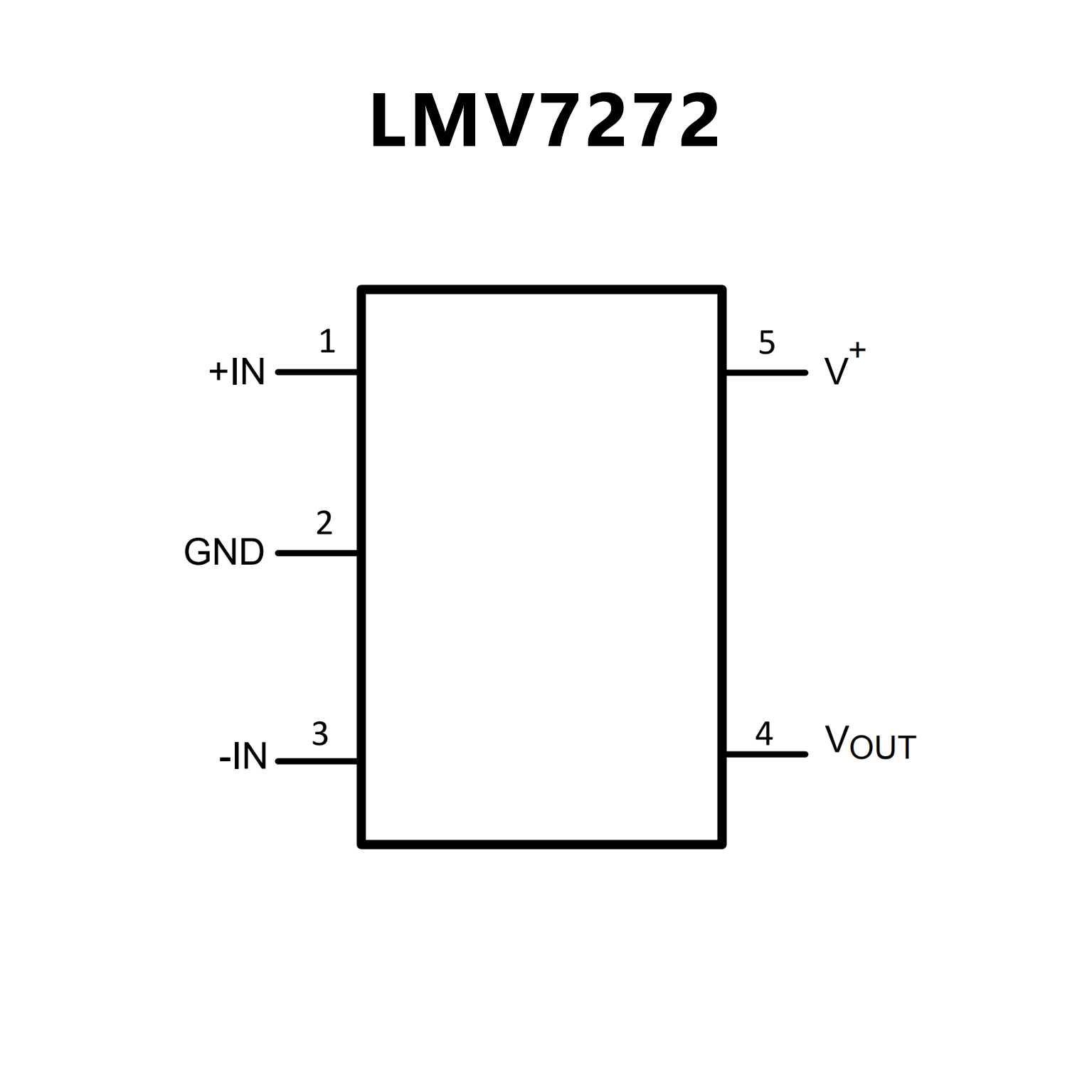

PIN CONFIGUTION
