high speed comparator,SGM8750 Replace TP1946.
SGM8750
SGM8750.pdf
SGM8750.pdfFEATURES
• Fast, 150ns Propagation Delay (10mV Overdrive)
• Low Power Consumption:22μA/Channel (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Open Drain Output
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Output Swing 185mV with 4mA Output Current
• CMOS/TTL-Compatible Output
• -40℃ to +85℃ Operating Temperature Range
• Available in Green MSOP-8 and SOIC-8 Packages

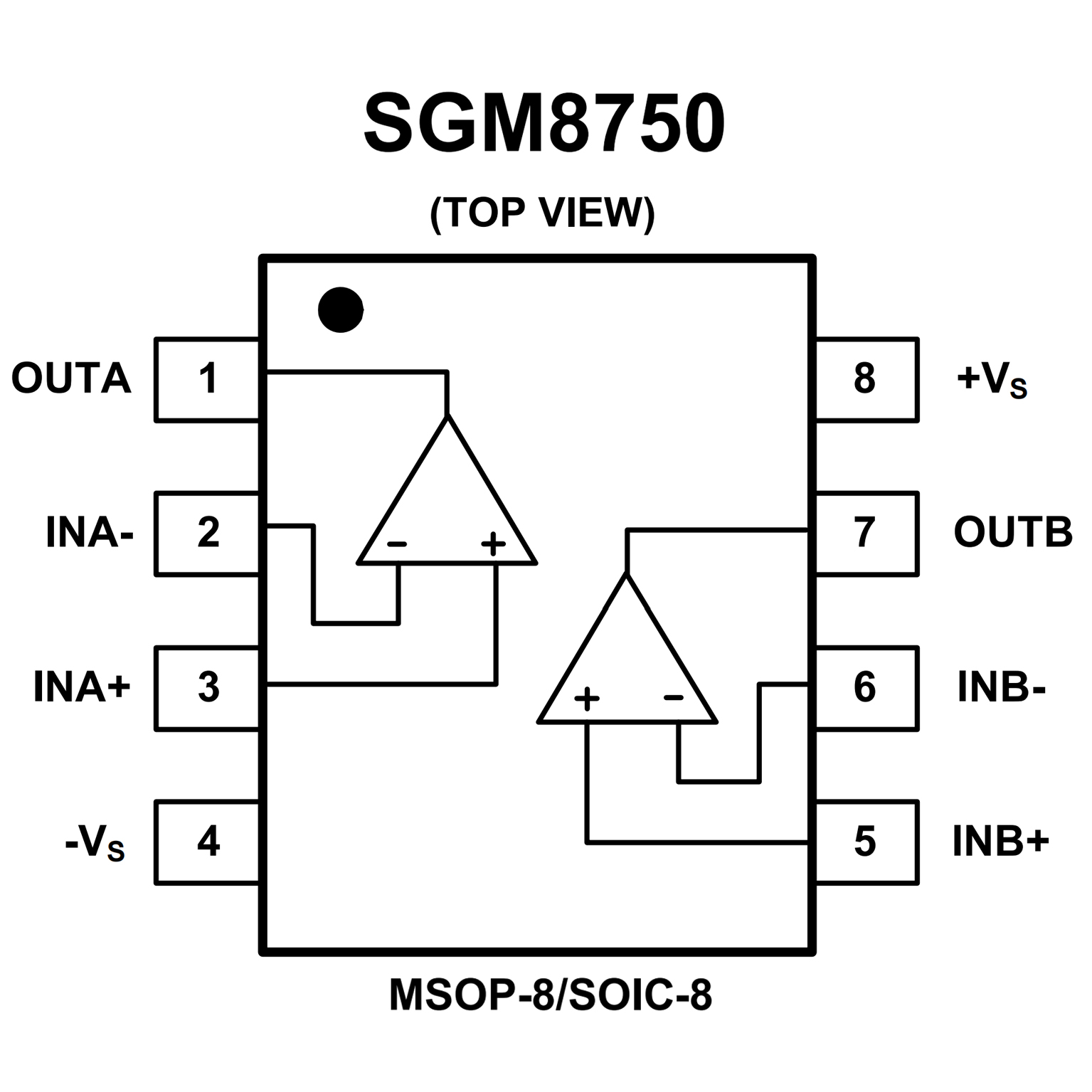

PIN CONFIGUTION
CROSS
FEATURES
• Down to 1.8V Supply Voltage: 1.8V to 5.5V
• Low Supply Current: 49 μA per Channel
• High-to-Low Propagation Delay: 70 ns
• Offset Voltage: ± 3.0 mV Maximum
• Offset Voltage Temperature Drift: 0.3 μV/°C
• Input Bias Current: 6 pA Typical
• Input Common-Mode Range Extends 200 mV
• Internal Hysteresis Ensures Clean Switching
• No Phase Reversal for Overdriven Inputs
• Open-Drain Output for Maximum Flexibility
• Green, Space-Saving SC70 Package Available
PIN CONFIGUTION
