Micro-Power, Single-Supply, WLCSP Comparator with Precision Voltage Reference, SGM8756 Replace LMV7272.
SGM8756
SGM8756.pdf
SGM8756.pdfFEATURES
• Low Supply Current:
40μA (TYP) Quiescent Current
50μA with 100kHz Switching at 5V
• Low Propagation Delay: 280ns (TYP)
• Rail-to-Rail Input and Output
• Push-Pull Output
• Sink and Source Current Capability: 100mA (TYP)
• Internal Hysteresis: 5mV (TYP)
• Internal Voltage Reference:
Accuracy: ±0.4% (MAX)
Temperature Drift: 100ppm/℃ (MAX)
Stable Output Capacitor Range: 0nF to 4.7nF
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green WLCSP-1.4×0.9-6B Package

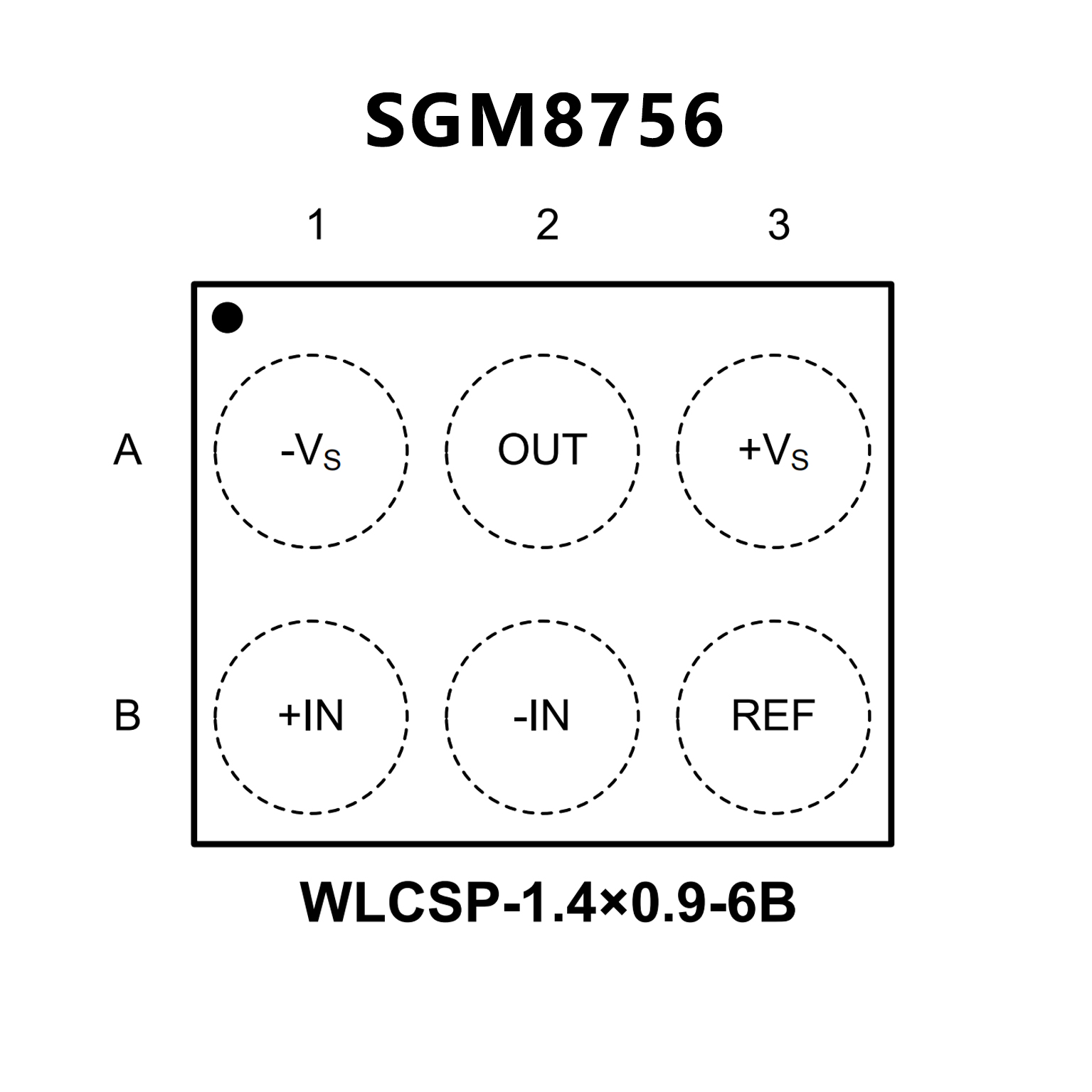

PIN CONFIGUTION
CROSS
FEATURES
• (VS = 1.8 V, TA = 25°C, Typical Values Unless Specified).
• Single or Dual Supplies
• Ultra Low Supply Current 9 µA Per Channel
• Low Input Bias Current 10 nA
• Low Input Offset Current 200 pA
• Low Ensured VOS 4 mV
• Propagation Delay 880 ns (20-mV Overdrive)
• Input Common Mode Voltage Range 0.1 V Beyond Rails
• LMV7272 is Available in DSBGA Package

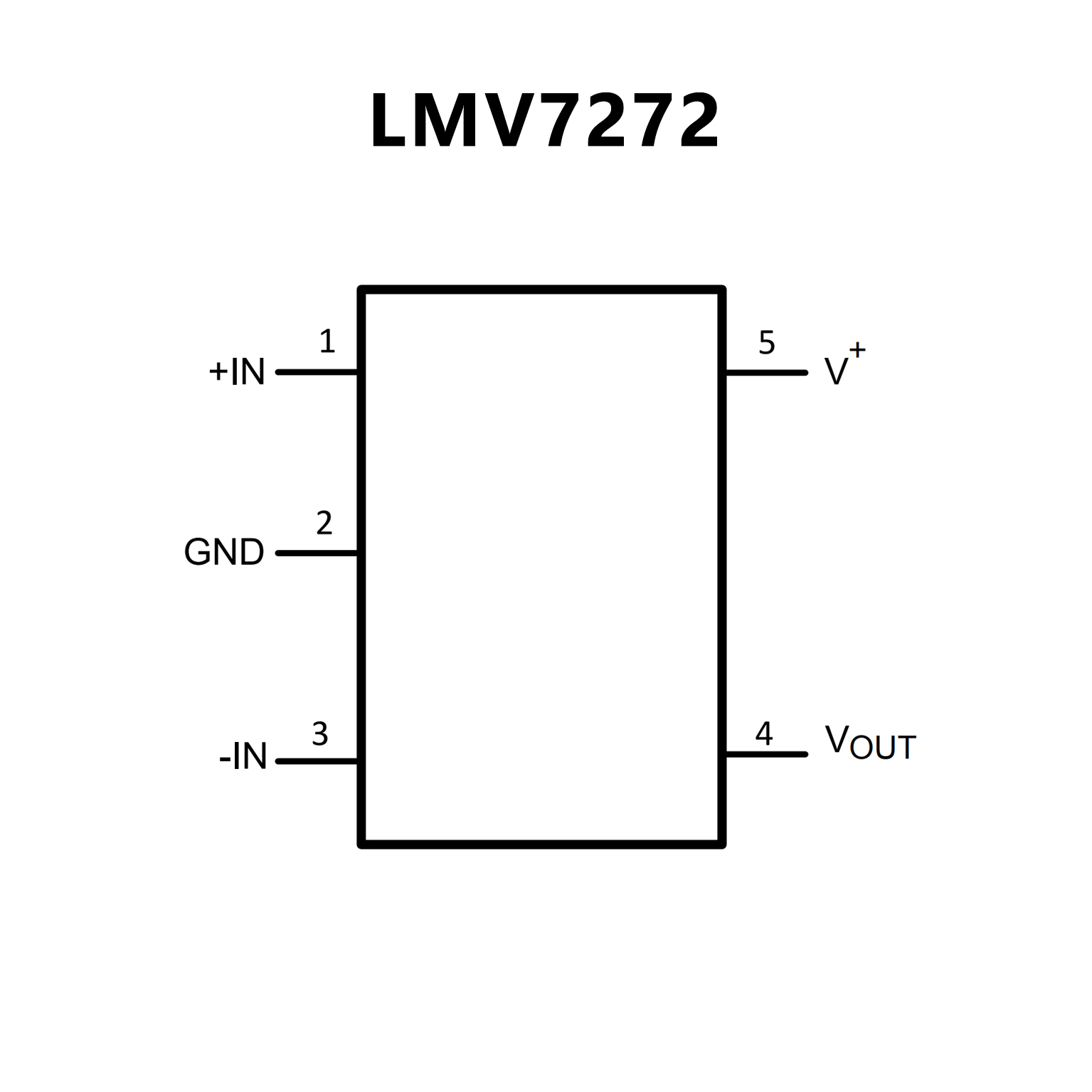

PIN CONFIGUTION
