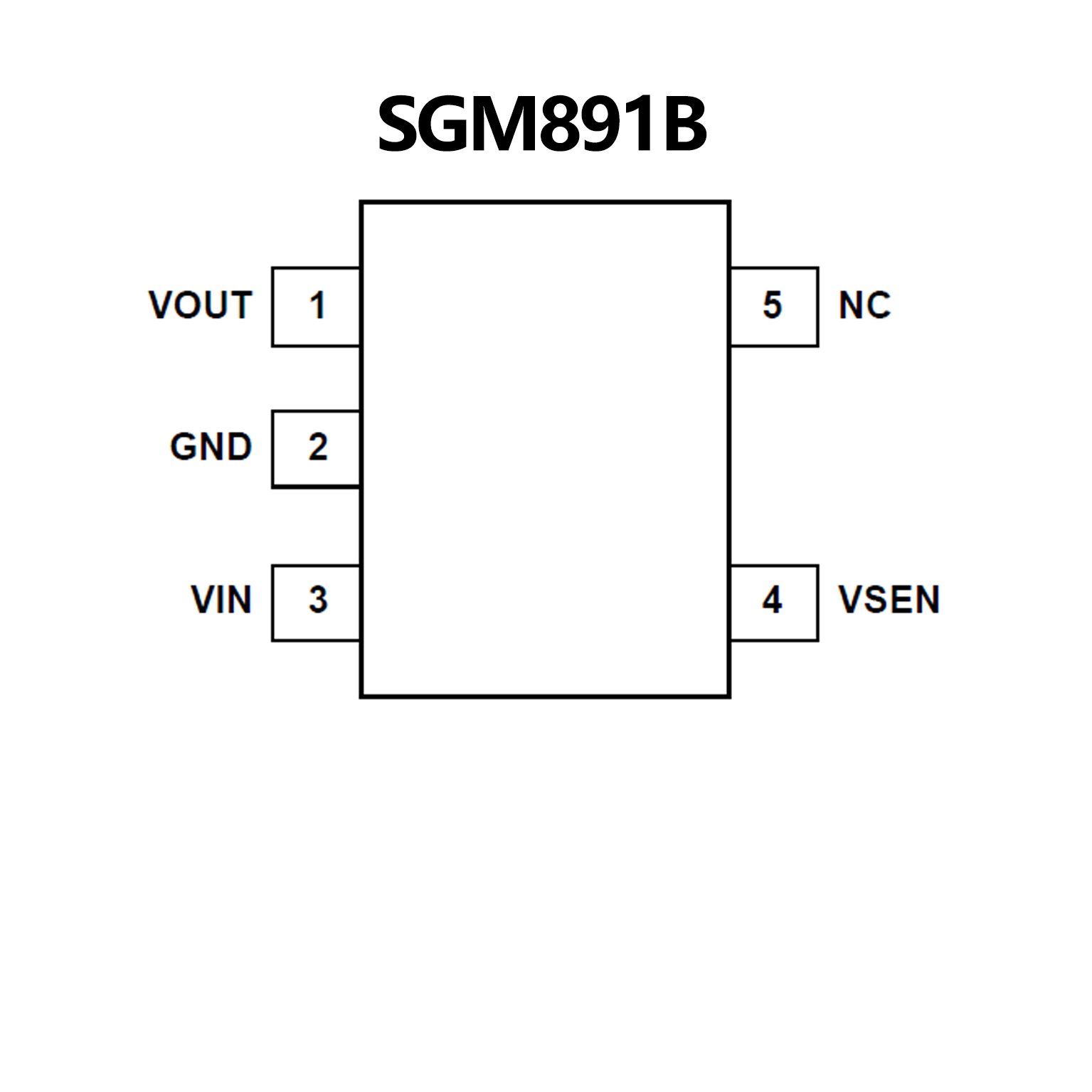

SGM891B.pdf• High Accuracy Detection: ±1% (TYP)
• Low Power Consumption: 0.3μA (TYP) at VIN = 1V
• Detection Voltage Range: 0.8V to 5V (0.1V Increments)
• Operating Voltage Range: 1V to 6V
• Detection Voltage Temperature Coefficient:
±40ppm/℃ (TYP)
• N-Channel Open-Drain Output
• Pin Function:
Power Supply Separation
Adjustable Release Delay Time (SGM890B Only)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package
• High Accuracy :±2% (Detect Voltage≧1.5V)
±30mV(Detect Voltage＜1.5V)
• Low Power Consumption : 0.4μA TYP. (Detect, VIN=1.0V)
• 0.8μA TYP. (Release, VIN=1.0V)
• Detect Voltage Range : 0.8V ~ 5.0V (0.1V increments)
• Operating Voltage Range : 1.0V ~ 6.0V
• Temperature Characteristics : ±100ppm/℃ TYP.
• Output Configuration : CMOS, N-channel open drain
• Pin Function : Power supply separation
• Release delay time adjustable
• Operating Ambient Temperature : -40℃ ~ 85℃

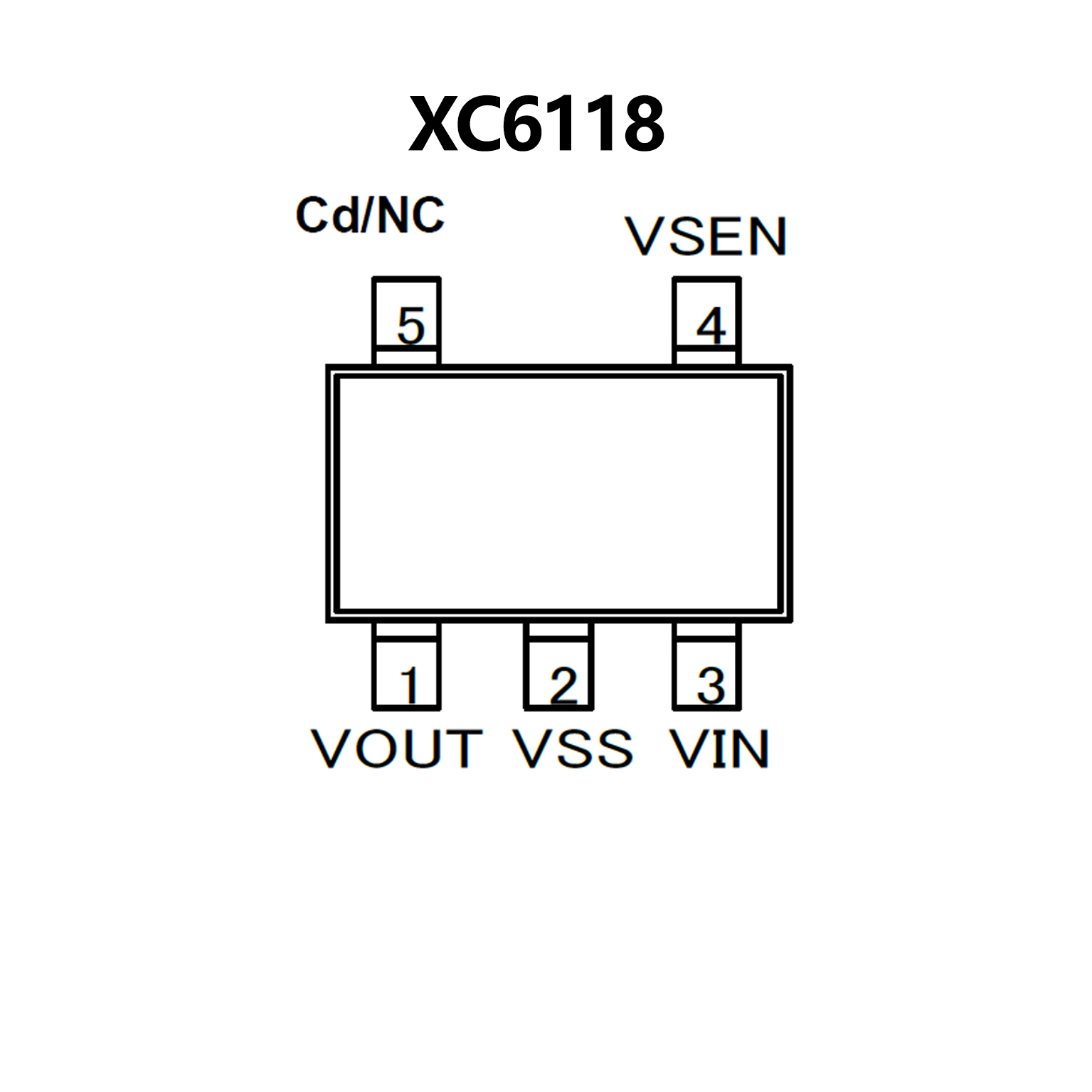

• Packages : USP-4, SOT-25
• Environmentally Friendly : EU RoHS Compliant, Pb Free
