SGM892B.pdf• High Accuracy Detection: ±1% (TYP)
• Low Power Consumption: 0.4μA (TYP) at VIN = 1V
• Detection Voltage Range: 1V to 5V (0.1V Increments)
• Operating Voltage Range: 1V to 6V
• Detection Voltage Temperature Coefficient:±40ppm/℃ (TYP)
• Manual-Reset Input (SGM893B Only)
• N-Channel Open-Drain Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:

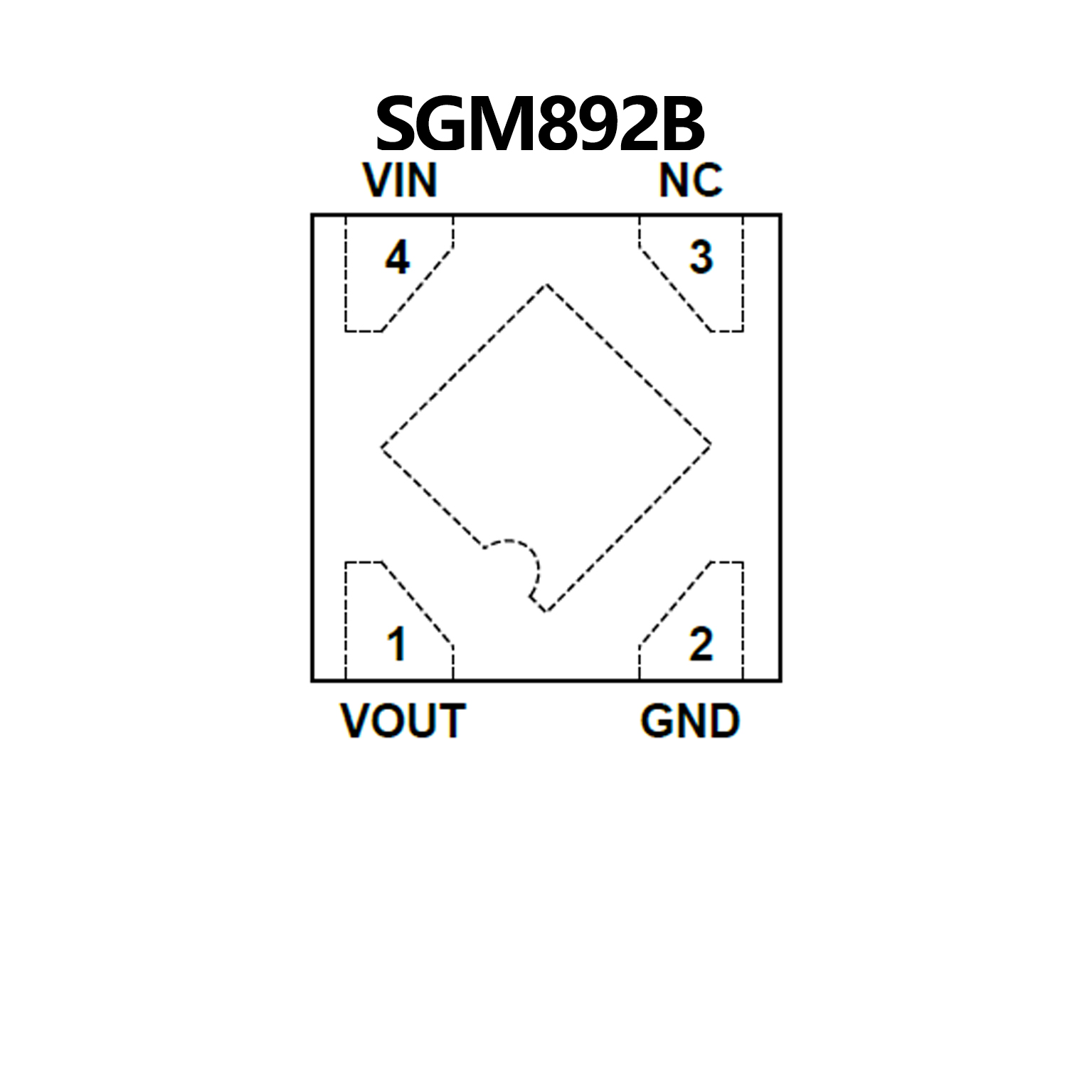

SGM892B Available in Green SOT-23-5,
SOT-23-3and UTDFN-1×1-4L Packages
SGM893B Available in Green SOT-23-5
andUTDFN-1×1-4L Packages
• High Accuracy : ±2%
(Detection Voltage >1.5V) ±30mV
(Detection Voltage <1.5V)
• Low Power Consumption :
0.5μA TYP. in detect state
(VDF=1.0V, VIN= 0.9V)
0.9μA TYP. in release state
(VDF=1.0V, VIN= 1.1V)
• Detect Voltage Options : 0.8V ~ 5.0V (0.1V increments)
• Operating Voltage Range : 0.7V ~ 6.0V
• Detect Voltage Temperature Characteristics
: ±100ppm/ OC
• Output Configuration : CMOS or
N-channel open drain
• Built-In Delay Circuit : Delay Time Adjustable
• Operating Ambient Temperature : -40 OC ~ 85 OC

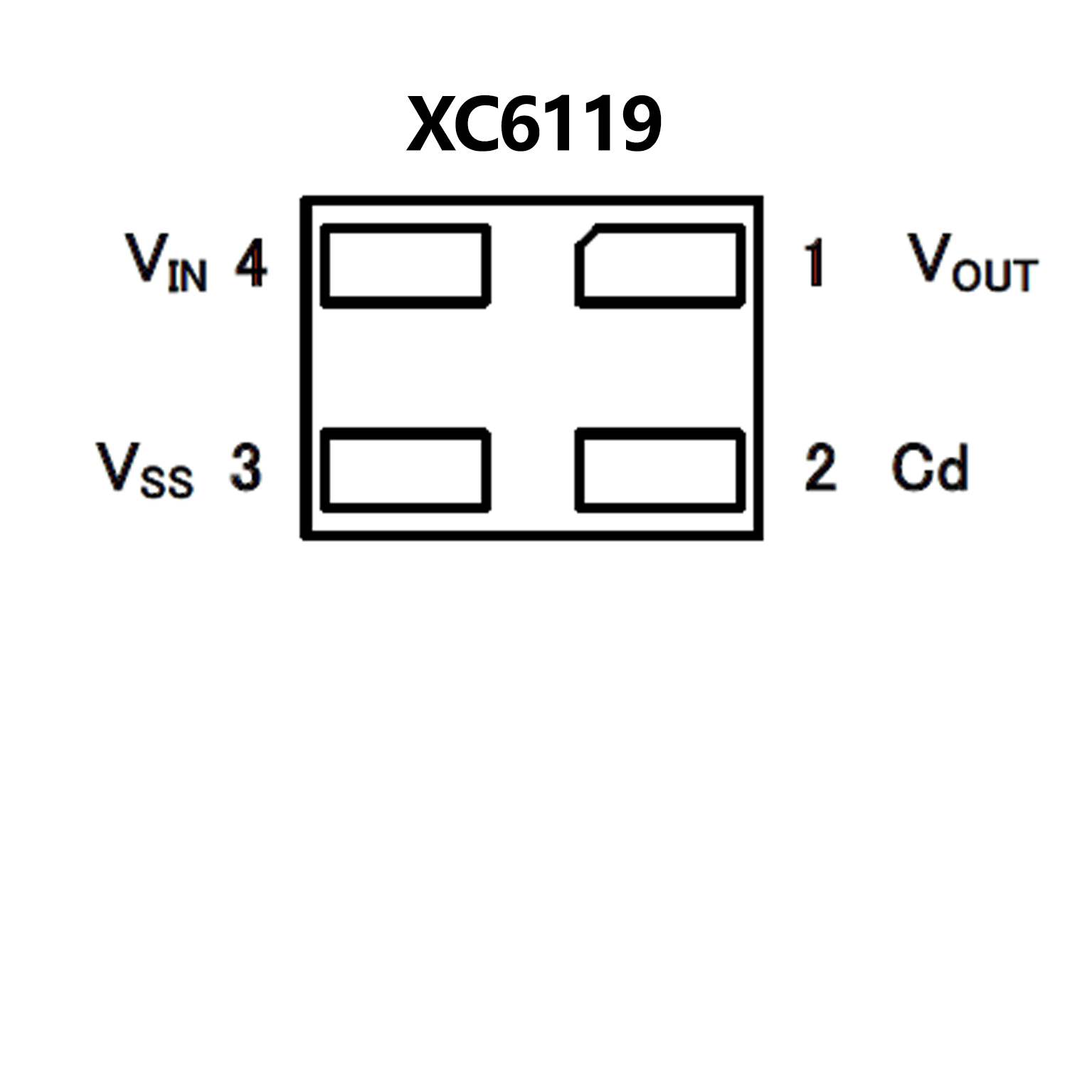

• Packages : SSOT-24, USPN-4
• Environmentally Friendly: EU RoHS Compliant, Pb Free
