High Precision Operational Amplifier, Replace TP5532
SGM8957-2
SGM8957-2.pdf
SGM8957-2.pdfFEATURES
• Low Offset Voltage: 25μV (MAX)
• Low 0.1Hz to 10Hz Noise: 2μVP-P
• Quiescent Current: 20μA/Amplifier (TYP)
• Single Supply Operation
• Integrated RFI Filter
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input/Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8957-2 Available in Green SOIC-8, MSOP-8
and TDFN-3×3-8L Packages

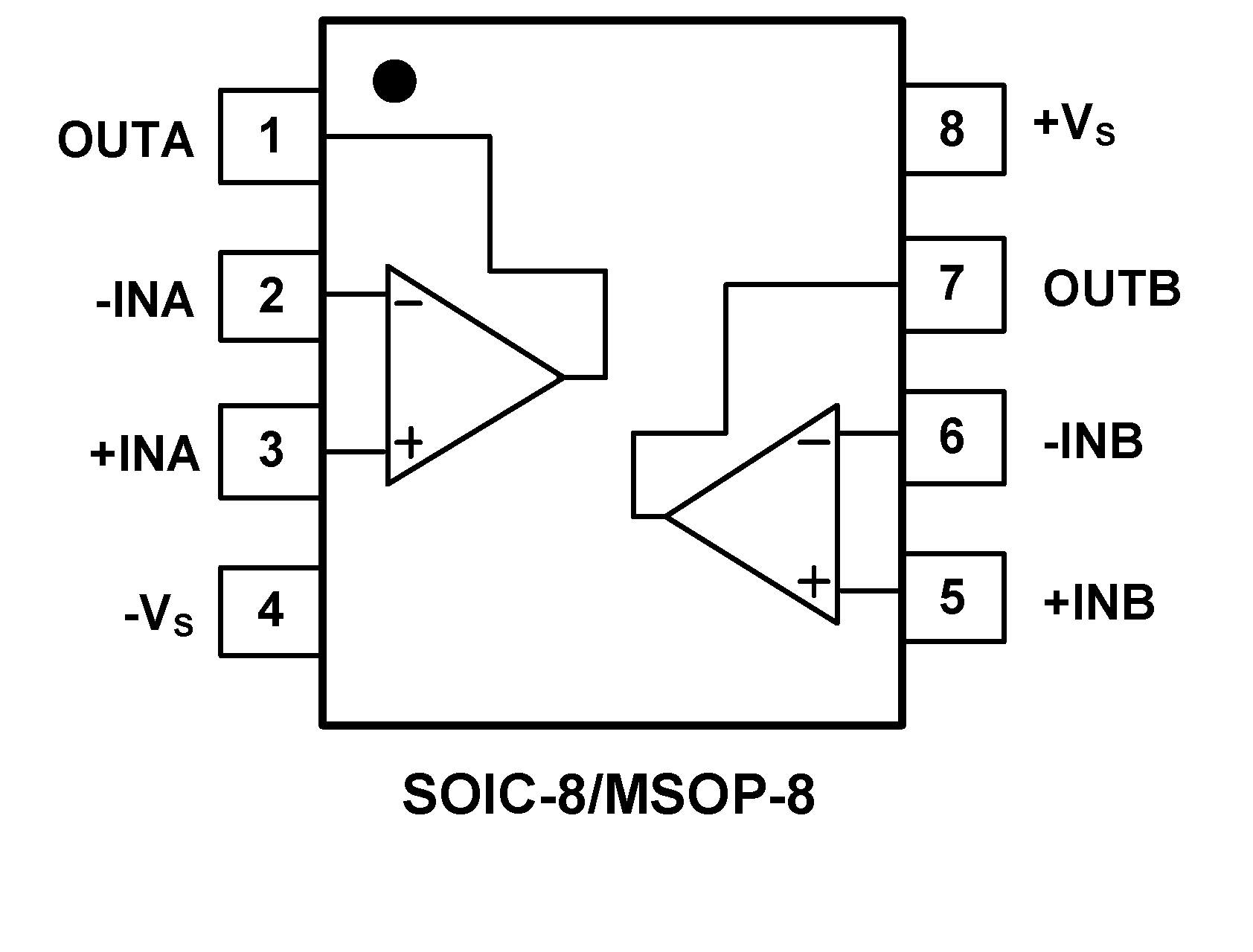

PIN CONFIGUTION
CROSS
FEATURES
• LOW OFFSET VOLTAGE: 10 μV (Max)
• ZERO DRIFT: 0.008 μV/°C
• 0.1Hz to 10Hz Noise: 1.1 μVPP
• Low Supply Current: 34μA per Amplifier
• Bandwidth: 350 kHz
• Slew Rate: 0.16 V/μs
• High Gain, 130 dB High CMRR and PSRR
• Rail-to-rail Input and Output Swing
• –40°C to 125°C Operation Range
PIN CONFIGUTION
