Ultra Small, Supervisory Circuits with Adjustable Sequencing, SGM898 Replace TPS3897.
SGM898
SGM898.pdf
SGM898.pdfFEATURES
• High Voltage Threshold Accuracy:
• +25℃: ±1%
• -40℃ to +125℃: ±1.6%
• Low Power Consumption: 2.1μA (TYP)
• Operating Supply Voltage Range: 1.6V to 5.5V
• Capacitor-Adjustable Delay
• Active-High/Active-Low Enable Input Options
• Active-High/Active-Low Output Options
• Open-Drain (28V Tolerant)/Push-Pull Output Options
• Available in Ultra-Small Green
UTDFN-1.45×1-6ALand TSOT-23-6 Packages

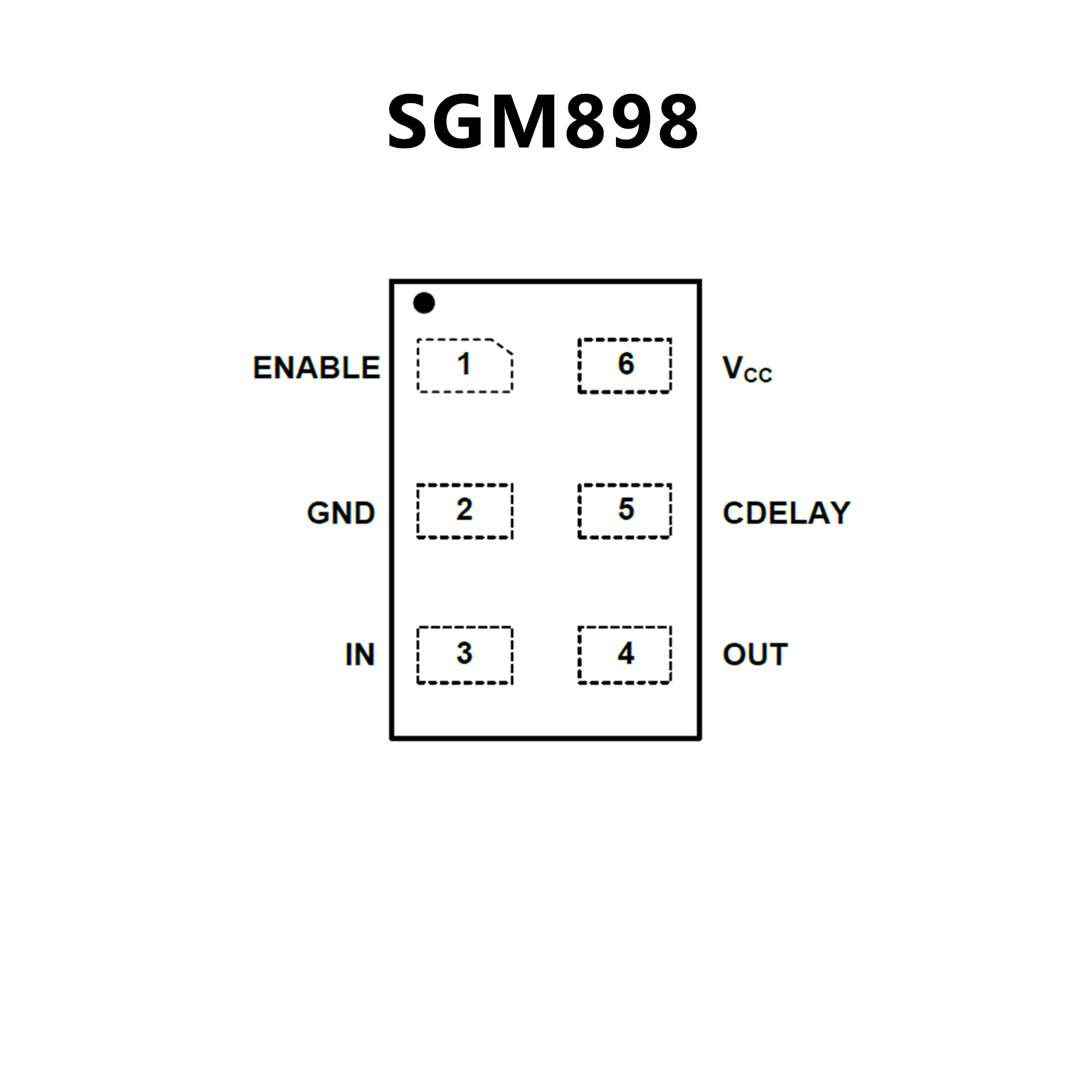

PIN CONFIGUTION
CROSS
FEATURES
• Very Small USON (1.45 mm × 1.00 mm) Package
• Adjustable Threshold Down to 500 mV
• Threshold Accuracy: 1% Over Temperature
• Capacitor-Adjustable Delay Time
• Low Quiescent Current: 6 µA (Typical)
• External Enable Input
• Open-Drain (Rated at 18 V) and Push-Pull Output Options
• Temperature Range: –40°C to 125°C
• Pin-for-Pin Compatible With MAX6895/6/7/8

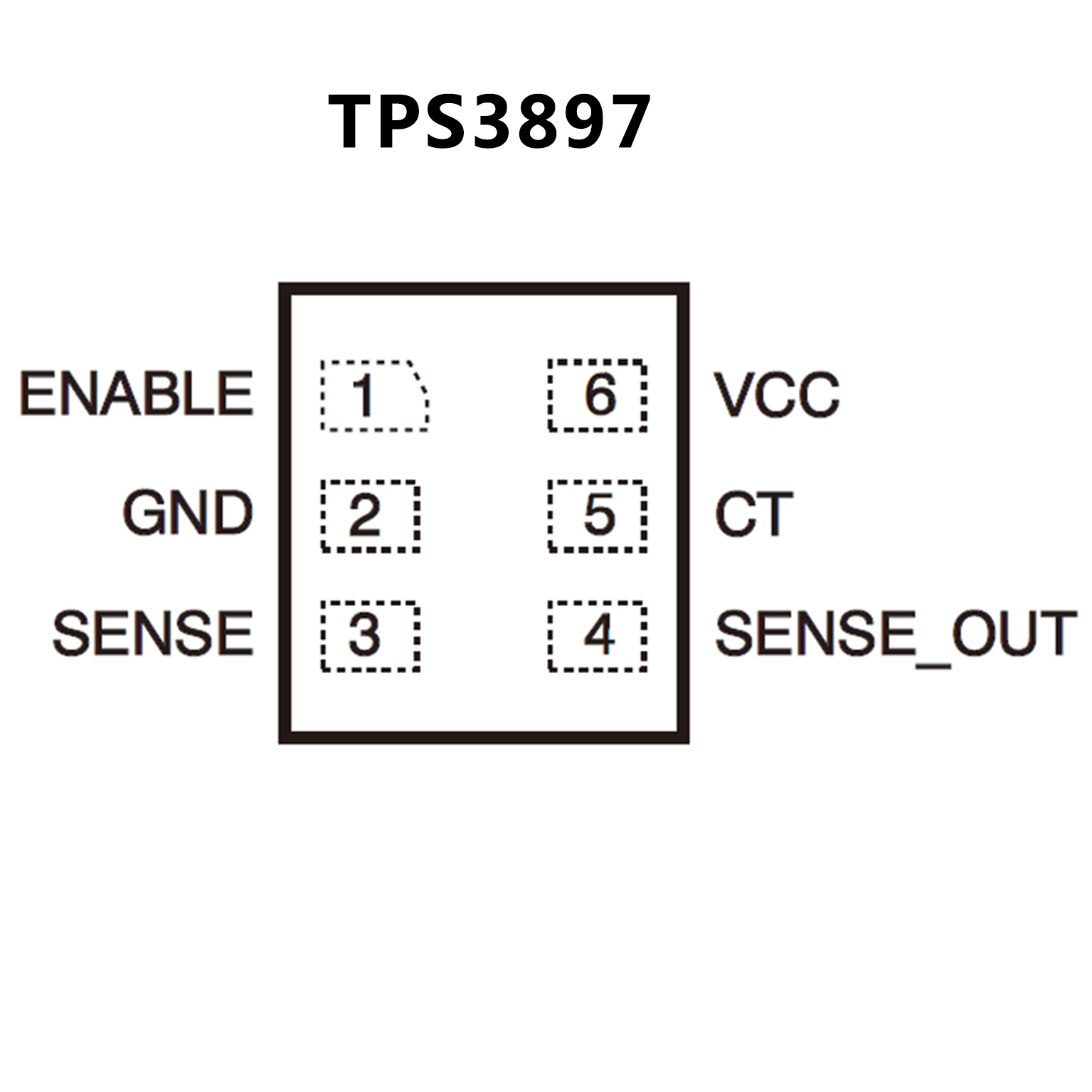

PIN CONFIGUTION
