3A Continuous (4A Peak), 2.2MHz 2.4V to 5.5V, 3D Buck PowerSoC, SGMM2043A P2P MPM3814C.
SGMM2043A
SGMM2043A.pdf
SGMM2043A.pdfFEATURES
• AHP-COT Architecture for Fast Transient Regulation
• 3D Integrated SoC Device with Power IC, Power
Inductor
• 2.4V to 5.5V Input Voltage Range
• 0.6V to 4V Wide Output Voltage Range
• 3A Continuous Output Current
• 4A Peak Output Current
• Low Quiescent Current: 5.7µA (SGMM2043A)
• Switching Frequency: 2.2MHz
• 100% Duty Cycle for the Lowest Dropout
• Power-Save Mode at Light Loads: SGMM2043A
• Force PWM Mode: SGMM2043B
• Output Discharge Function
• Power Good Output
• Thermal Shutdown
• Hiccup Short-Circuit Protection
• Available in a Green EMSIP-2.5×2.5-14L Package

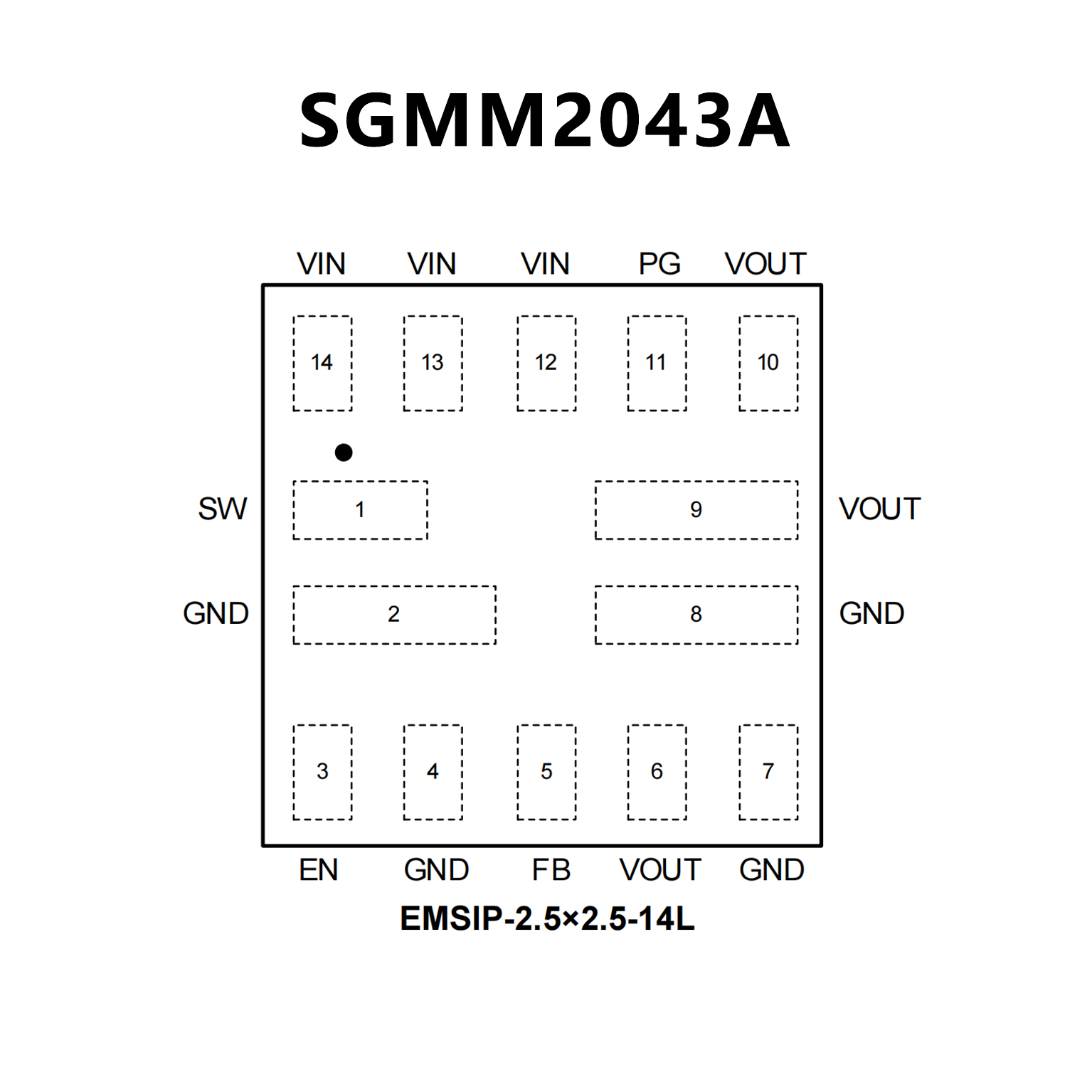

PIN CONFIGUTION
CROSS
FEATURES
• Wide 2.75V to 6V Operating Input Voltage (VIN) Range
• Adjustable Output Voltage (VOUT) from 0.6V
• Up to 1A Continuous Output Current (IOUT)
• 100% Duty Cycle in Dropout
• Up to 92.3% Efficiency with 3.3V to 1.8V
• Forced Continuous Conduction Mode (FCCM)
• Enable (EN) and Power Good (PG) for Power
Sequencing
• Cycle-by-Cycle Over-Current Protection (OCP)
• Short-Circuit Protection (SCP) with Hiccup Mode
• Only Four External Components Required
• Available in an ECLGA-14 (2.5mmx2.5mmx1.2mm)
Package

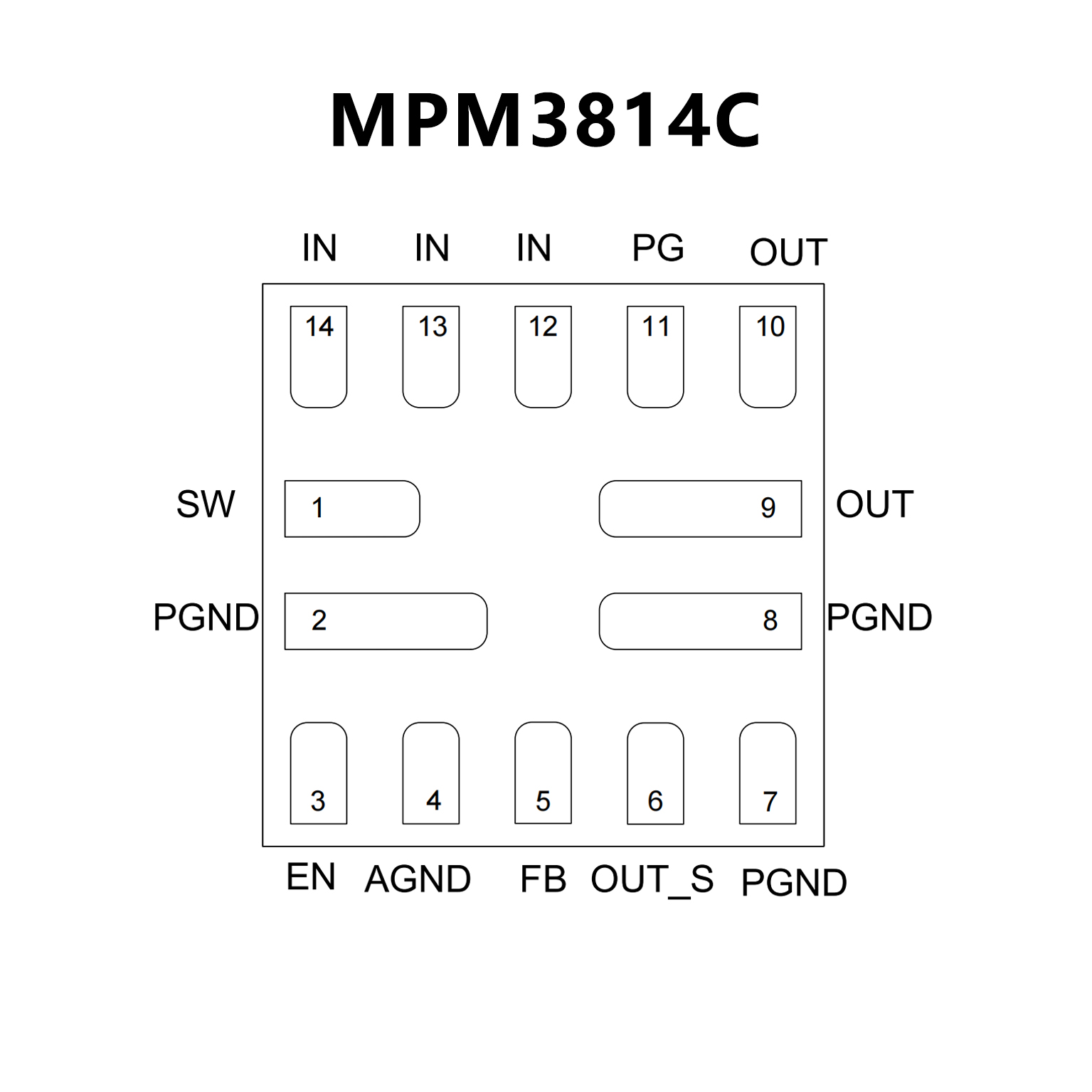

PIN CONFIGUTION
