6A, High Efficiency, 3D Buck PowerSoC, SGMM2060-Replace-MPM3864L.
SGMM2060
SGMM2060.pdf
SGMM2060.pdfFEATURES
• AHP-COT Control
• 6A Continuous Output Current
• 2.7V to 5.5V Input Voltage Range
• 1.2MHz Switching Frequency
• Low Dropout with 100% Duty Cycle
• Adjustable Output Voltage from 0.6V to VIN
• Output Discharge Function
• 1.3ms Internal Soft-Start Time and Pre-Biased
Startup
• Cycle-by-Cycle Over-Current Protection
• Hiccup Mode OCP/Short-Circuit Protection
• Stable with Low ESR Output Ceramic Capacitors
• Thermal Shutdown Protection
• Available in a Green EMSIP-3×3-20L Package

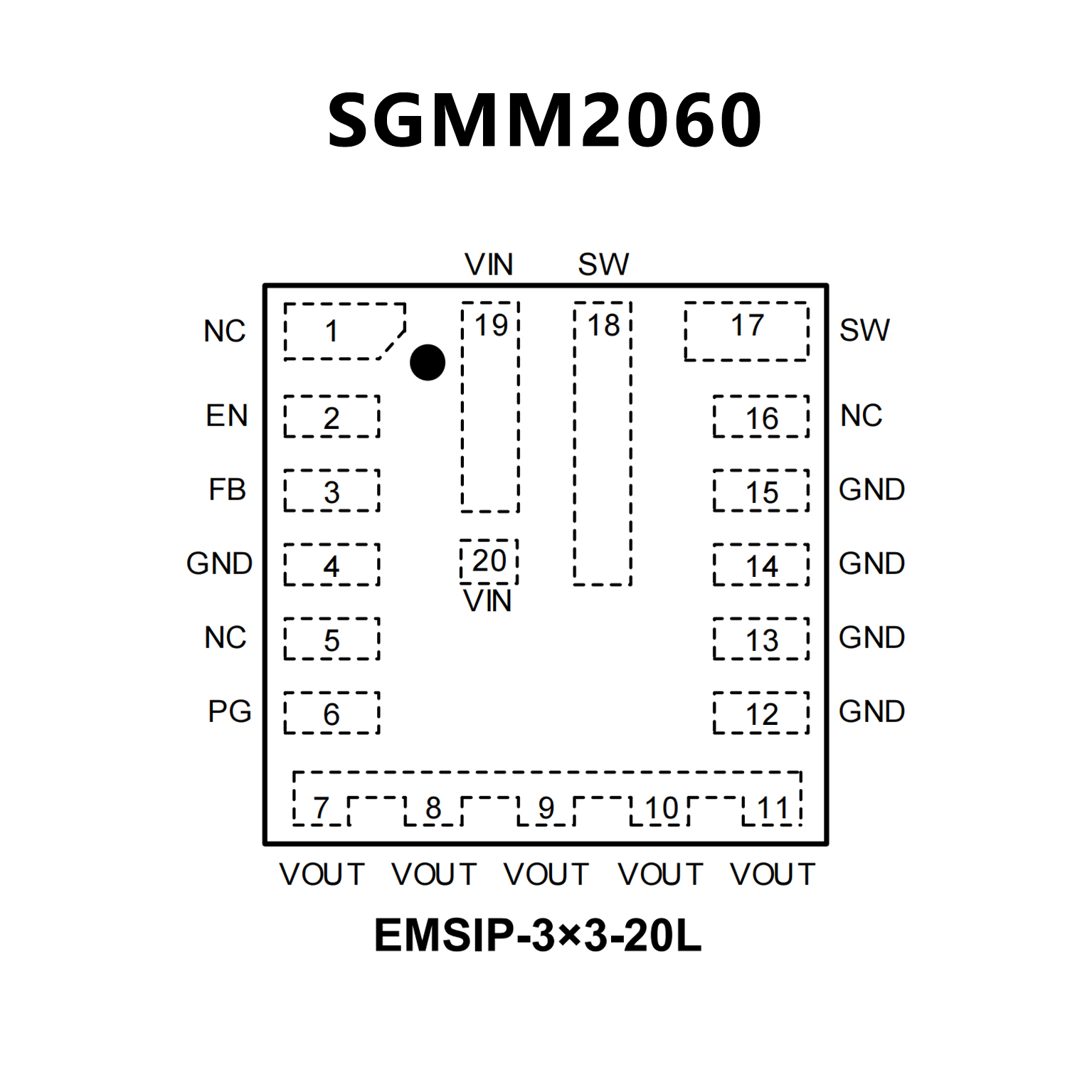

PIN CONFIGUTION
