30V Output, 2.5A Current Limit, 1.2MHz High Efficiency Asynchronous Boost Regulator, STI3508CB P2P LMR62014.
STI3508CB
STI3508CB.pdf
STI3508CB.pdfFEATURES
• 2.5V to 5.5V Input Voltage Range
• Integrated 100mΩ Power MOSFET
• 1.2MHz Fixed Switching Frequency
• Internal 2.5A Switch Current Limit Typically
• Adjustable Output Voltage with 1.225V VFB
• Internal Compensation
• Up to 30V Output Voltage
• Automatic Pulse Frequency Modulation Mode at Light Loads
• Available in a 5-Pin SOT23-5 Package

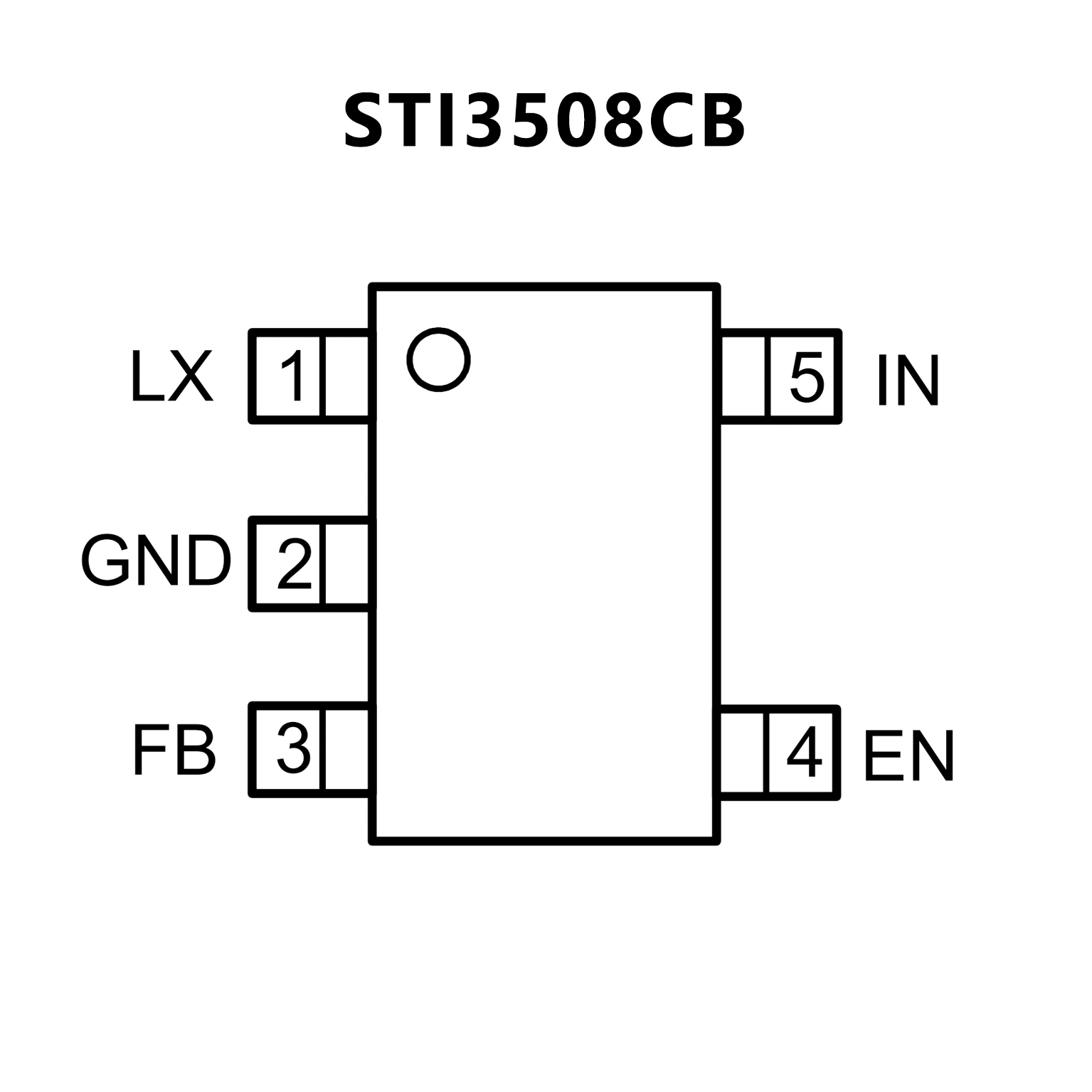

PIN CONFIGUTION
CROSS
FEATURES
• Input Voltage Range of 2.7V to 14V
• Output Voltage up to 20V
• Switch Current up to 1.4A
• 1.6 MHz Switching Frequency
• Low Shutdown Iq, <1 µA
• Cycle-by-Cycle Current Limiting
• Internally Compensated
• 5-Pin SOT-23 Packaging (2.92 x 2.84 x 1.08mm)
• Fully Enabled for WEBENCH® Power Designer

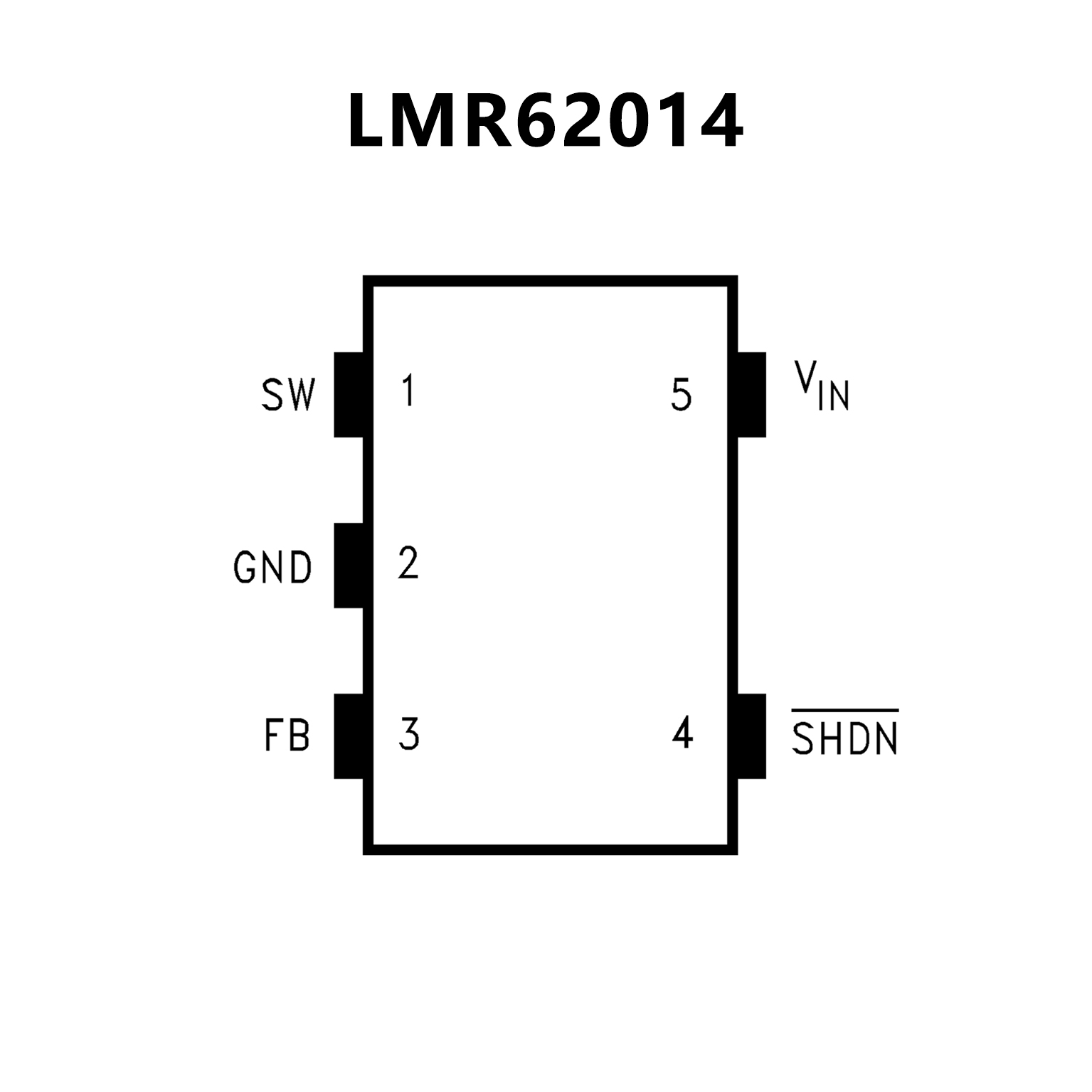

PIN CONFIGUTION
