• AEC-Q100 certification in progress

  Temperature grade1: -40°C to+125°C, TA

•  2μA Low Shutdown Supply Current

•  14μA No-Load Quiescent Current

•  Internal 125mΩ High-Side and 55mΩ LowSide MOSFET

•  External Soft Start (SS)

•  350kHz to 2.5MHz Programmable Switching Frequency

•  Selectable External Clock Signal to

  Synchronize the Internal Oscillator Frequency

•  80ns Minimum on Time

•  Selectable Forced PWM and PFM

•  Power Good (PG) Output

•  Hiccup Over-Current Protection (OCP)

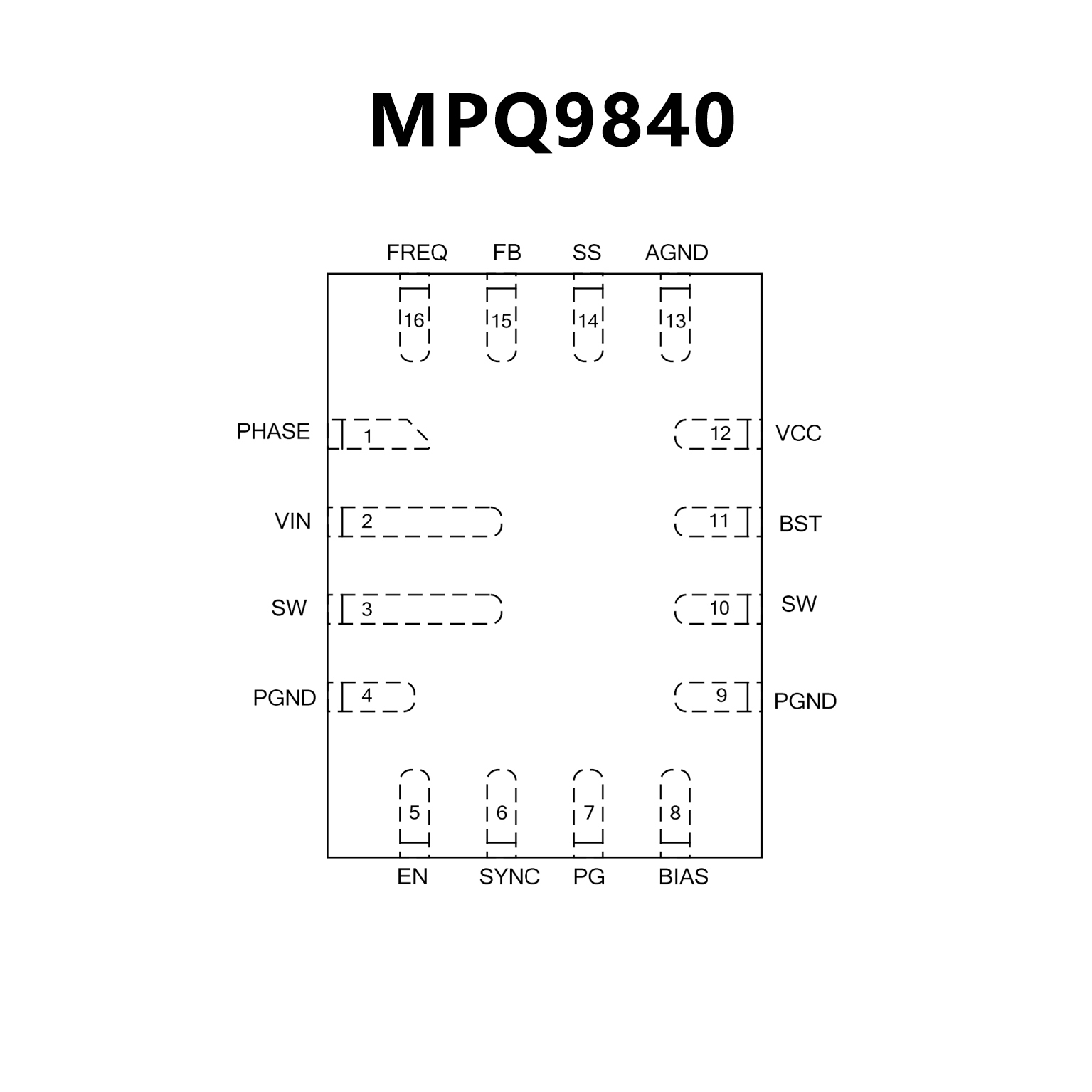

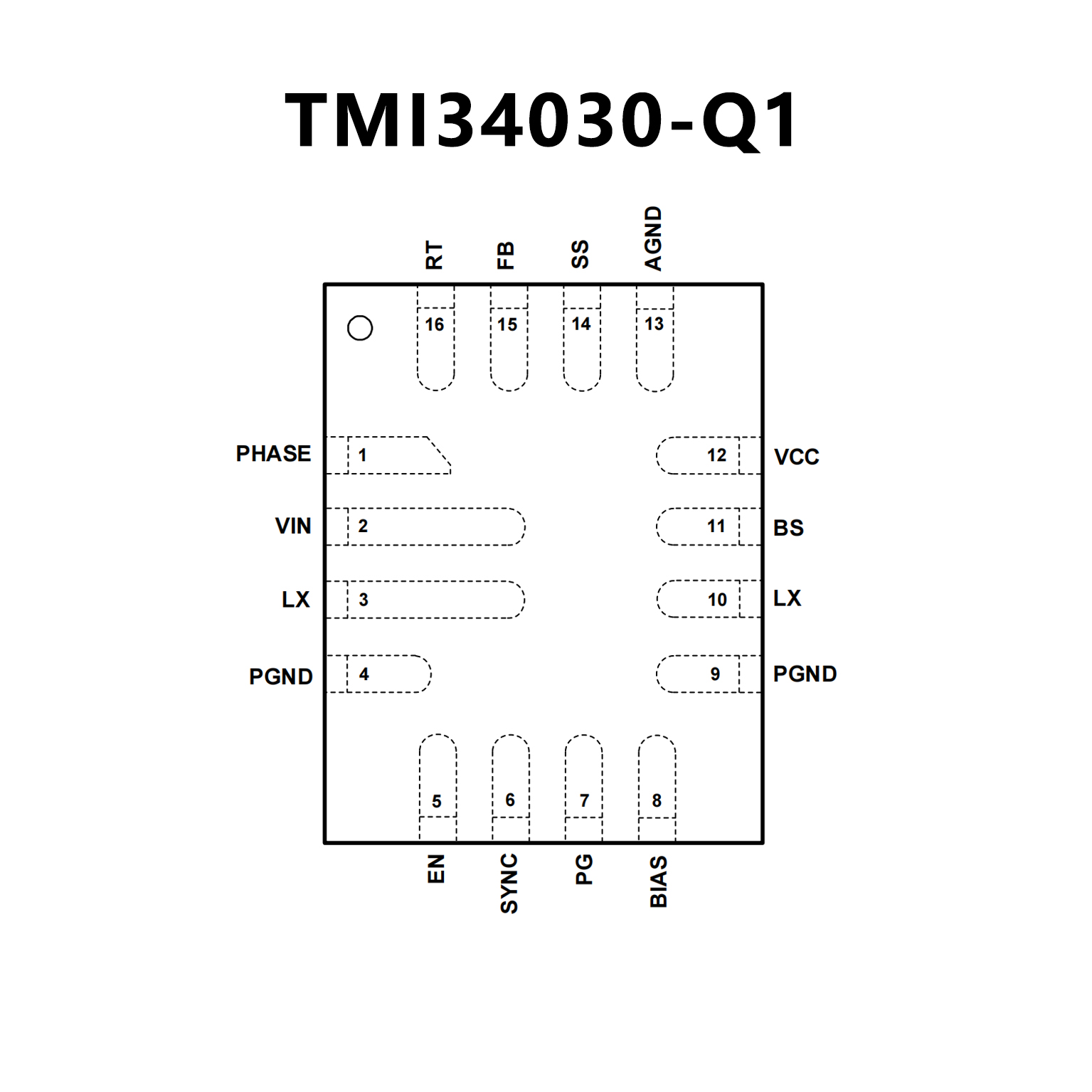

•  Available in a QFN-16 (3mmx4mm) Package
