Precision Adjustable Power Distribution Switch, TMI6260C P2P TPS2551DBV.
TMI6260C
TMI6260C.pdf
TMI6260C.pdfFEATURES
• Integrated 60mΩ Power MOSFET
• Adjustable Current Limit 0.3A to 2.5A (typ.)
• Low Supply Current
• 30μA Typical at Switch On State
• 1μA Typical at Switch Off State
• Wide Input Voltage Range: 2.5V to 5.5V
• Fast Transient Response: 8μs
• 0.1ms Typical Rise Time
• Reverse Current Flow Blocking
• Deglitched Open-Drain Over-Current Flag
Output (TMI6260C and TMI6260D)
• Thermal Shutdown Protection
• Hot Plug-In Application (Soft-Start)
• UL 2367 Certification - E528420
• SOT-23-5/SOT-23-6/DFN2x2-6L Package

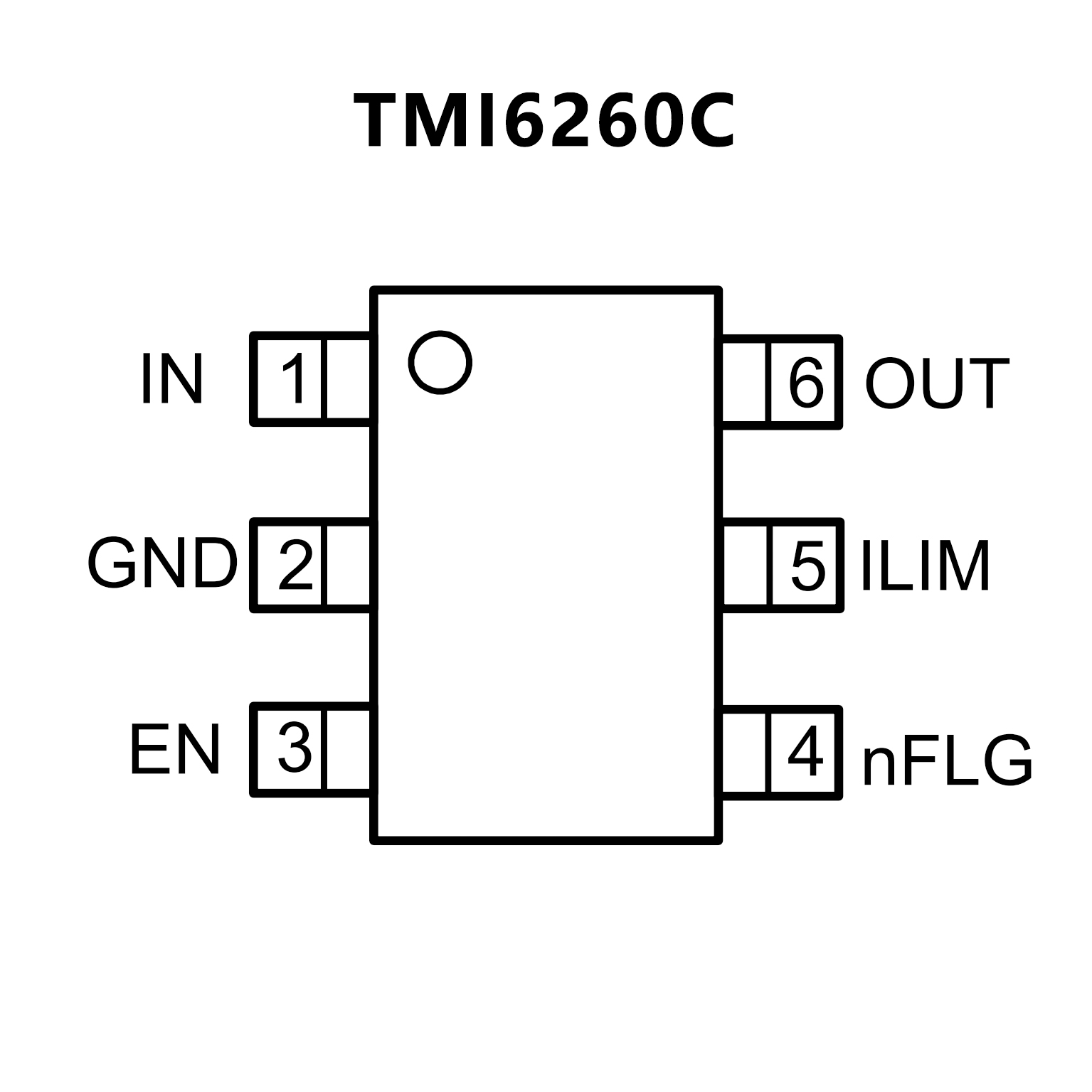

PIN CONFIGUTION
CROSS
FEATURES
• Adjustable Current-Limit, 100 mA–1100 mA
• Fast Overcurrent Response - 2 µS Typical
• 85-mΩ High-Side MOSFET (DBV Package)
• Reverse Input-Output Voltage Protection
• Operating Range: 2.5 V to 6.5 V
• Deglitched Fault Report
• 1-µA Maximum Standby Supply Current
• Junction Temperature Range: –40°C to 125°C
• Built-in Soft-Start
• 15 kV ESD Protection (with external
capacitance)
• UL Listed – File No. E169910
• Current-Limit Resistor Calculator – SLVC163

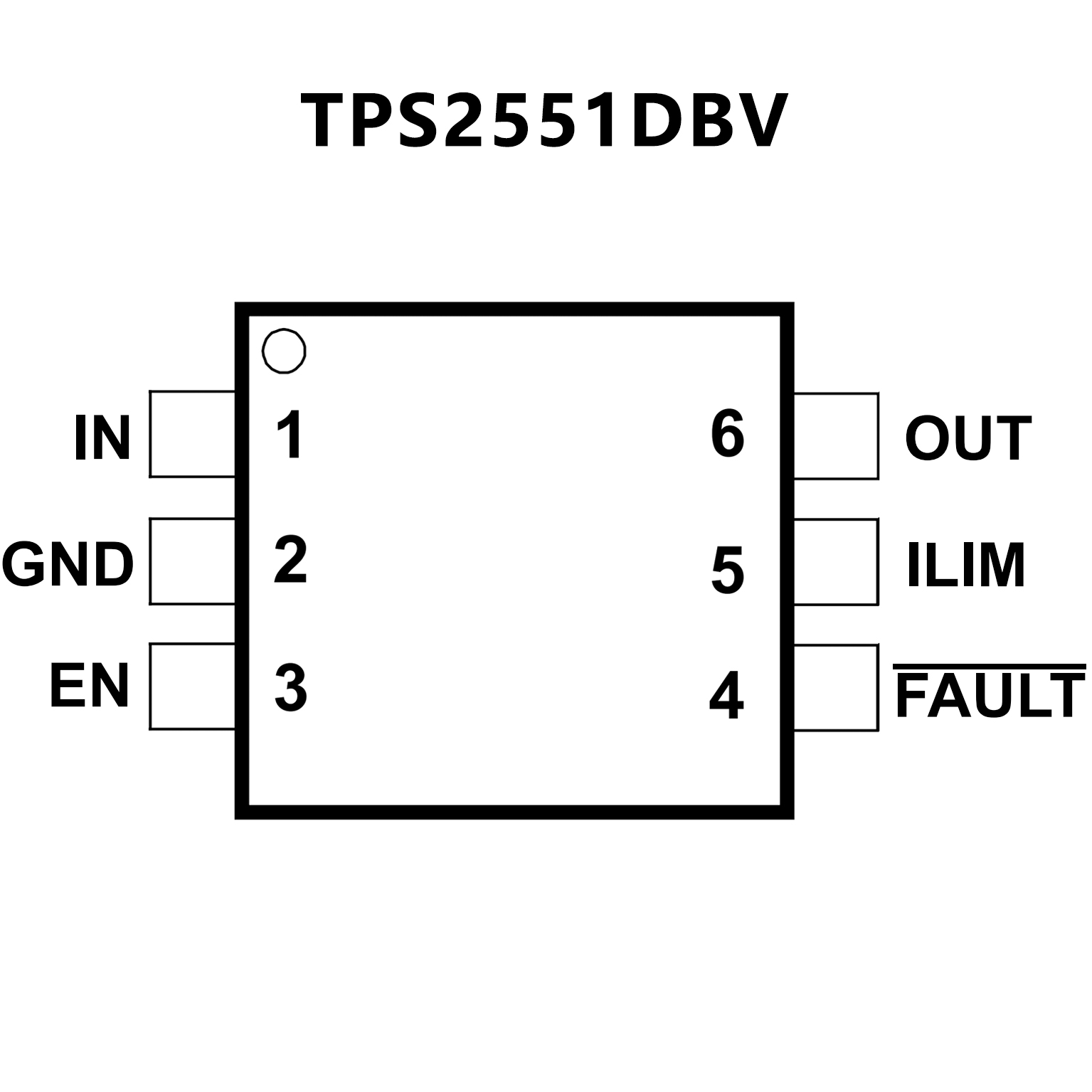

PIN CONFIGUTION
