Precision Adjustable Power Distribution Switch, TMI6260D P2P TPS2553DRVR.
TMI6260D
TMI6260D.pdf
TMI6260D.pdfFEATURES
• Integrated 60mΩ Power MOSFET
• Adjustable Current Limit 0.3A to 2.5A (typ.)
• Low Supply Current
• 30μA Typical at Switch On State
• 1μA Typical at Switch Off State
• Wide Input Voltage Range: 2.5V to 5.5V
• Fast Transient Response: 8μs
• 0.1ms Typical Rise Time
• Reverse Current Flow Blocking
• Deglitched Open-Drain Over-Current Flag
Output (TMI6260C and TMI6260D)
• Thermal Shutdown Protection
• Hot Plug-In Application (Soft-Start)
• UL 2367 Certification - E528420
• SOT-23-5/SOT-23-6/DFN2x2-6L Package

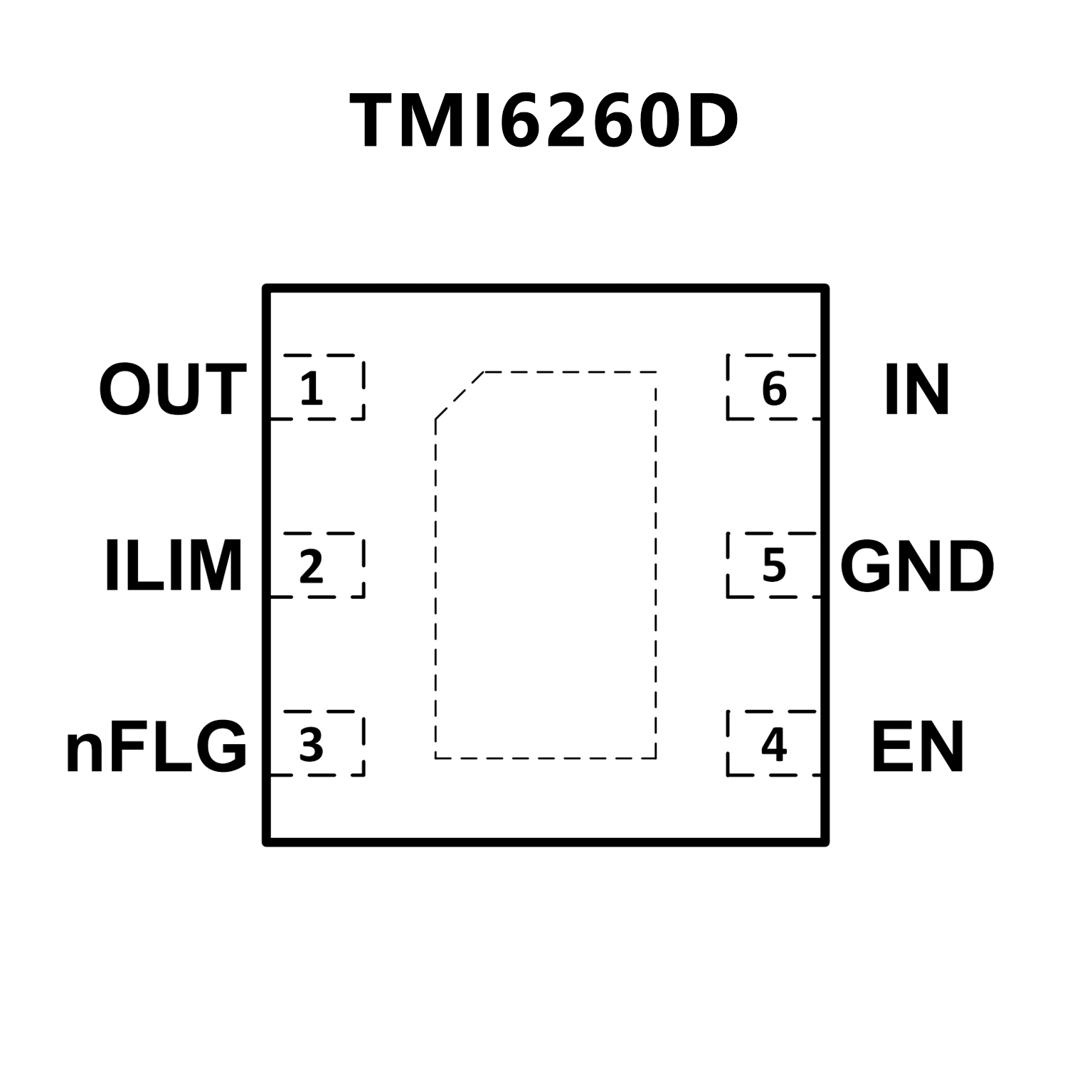

PIN CONFIGUTION
CROSS
FEATURES
• Up to 1.5-A Maximum Load Current
• ±6% Current-Limit Accuracy at 1.7 A (Typical)
• Meets USB Current-Limiting Requirements
• Backwards Compatible With TPS2550 and
TPS2551
• Adjustable Current Limit: 75 mA to 1700 mA
(Typical)
• Constant-Current (TPS255x) and Latch-Off
(TPS255x-1) Versions
• Fast Overcurrent Response - 2 μs (Typical)
• 85-mΩ High-Side MOSFET (DBV Package)
• Reverse Input-Output Voltage Protection
• Operating Range: 2.5 V to 6.5 V
• Built-In Soft Start
• 15-kV ESD Protection per IEC 61000-4-2 (With
External Capacitance)
• UL Listed – File No. E169910 and NEMKO
IEC60950-1-am1 ed2.0
• See the TI Switch Portfolio

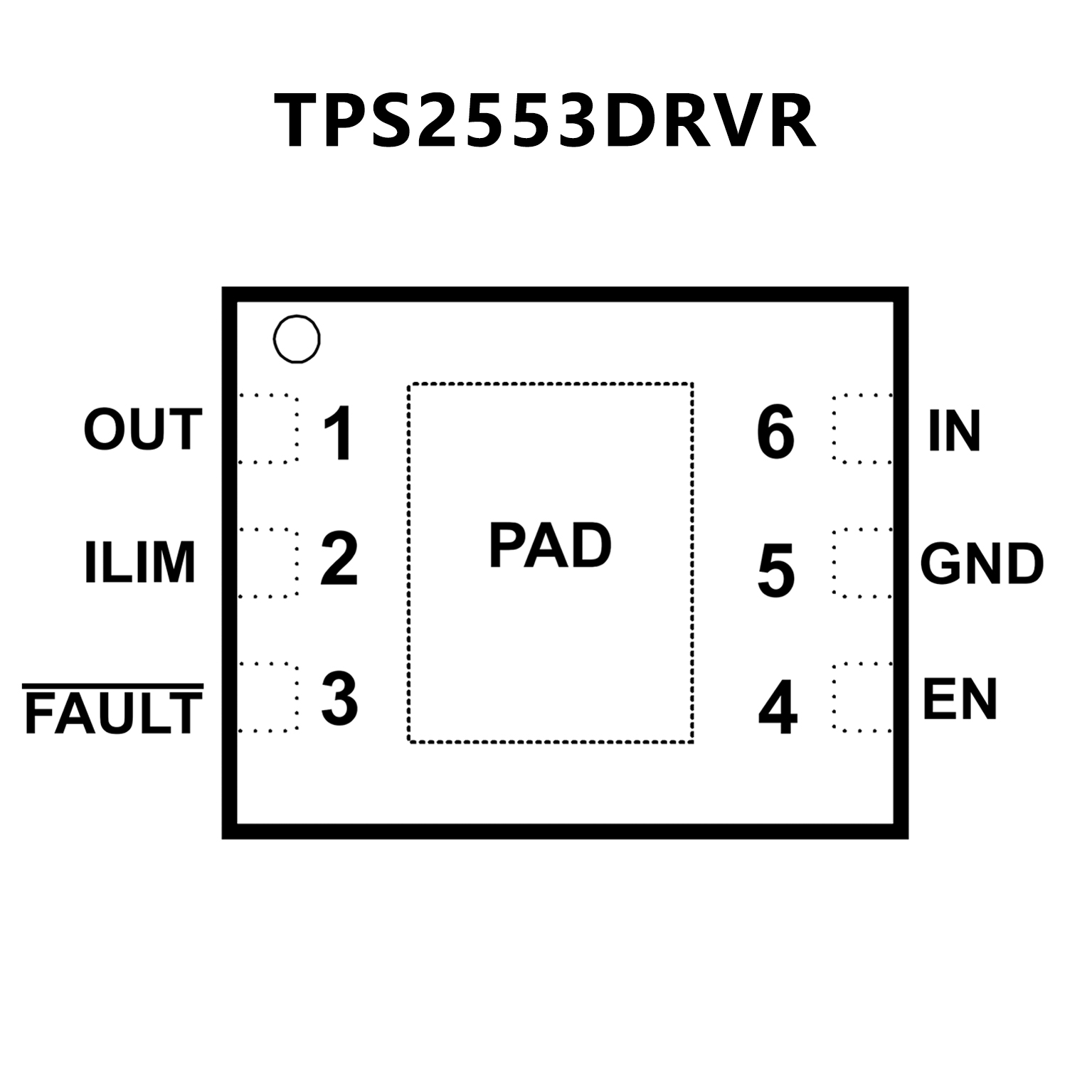

PIN CONFIGUTION
