Dual N-channel TrenchMOS logic level FET, TQM250NH10LDCR RLG Replace BUK9K29-100E.
TQM250NH10LDCR
TQM250NH10LDCR.pdf
TQM250NH10LDCR.pdfFEATURES
• Excellent FOM
• AEC-Q101 qualified
• Wettable flank leads for enhanced AOI
• 100% UIS and Rg tested
• 175°C operating junction temperature
• RoHS Compliant
• Halogen-free

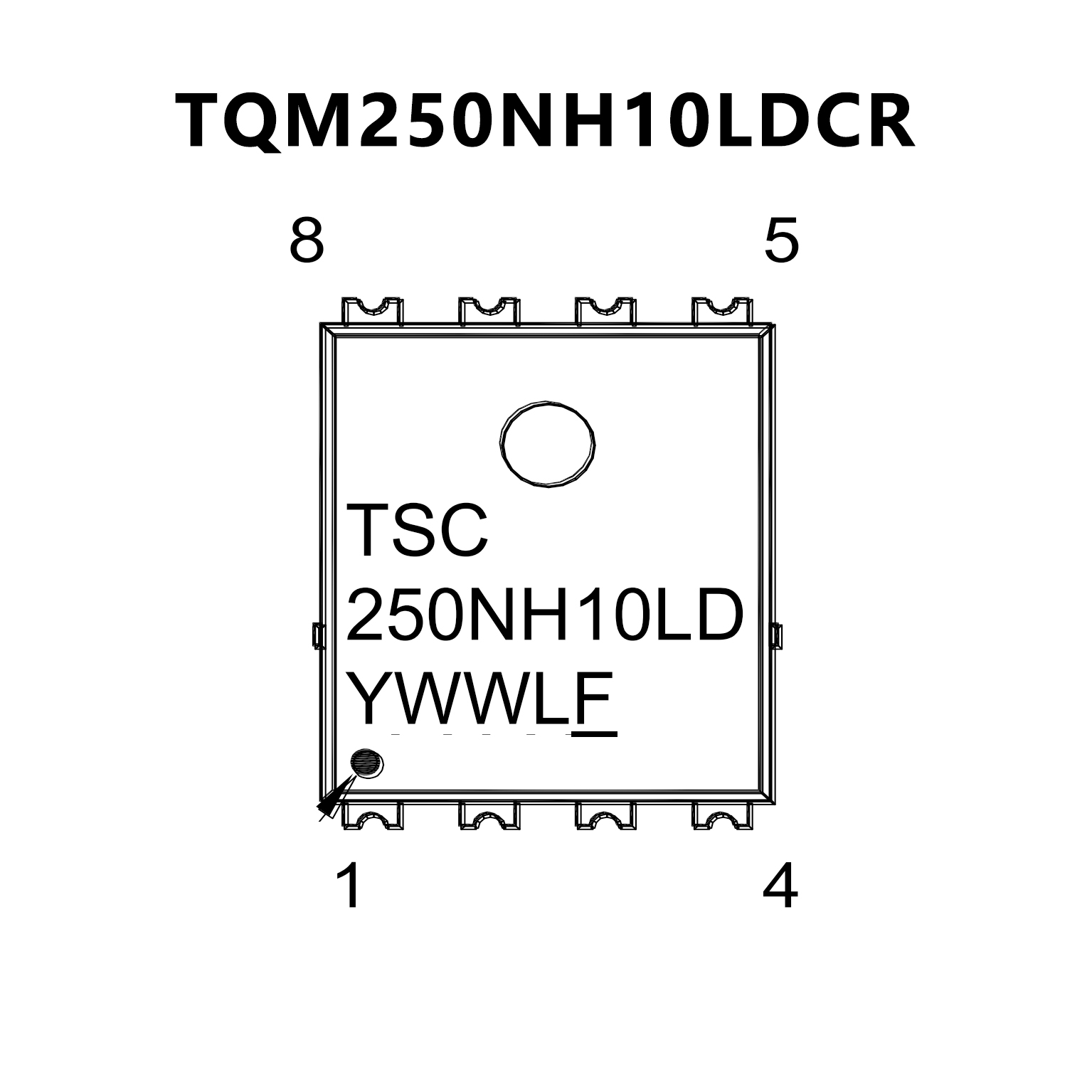

PIN CONFIGUTION
CROSS
FEATURES
• Q101 compliant
• Repetitive avalanche rated
• Suitable for thermally demanding environments
due to 175 °C rating
• True logic level gate with VGS(th) > 0.5 V @ 175 °C

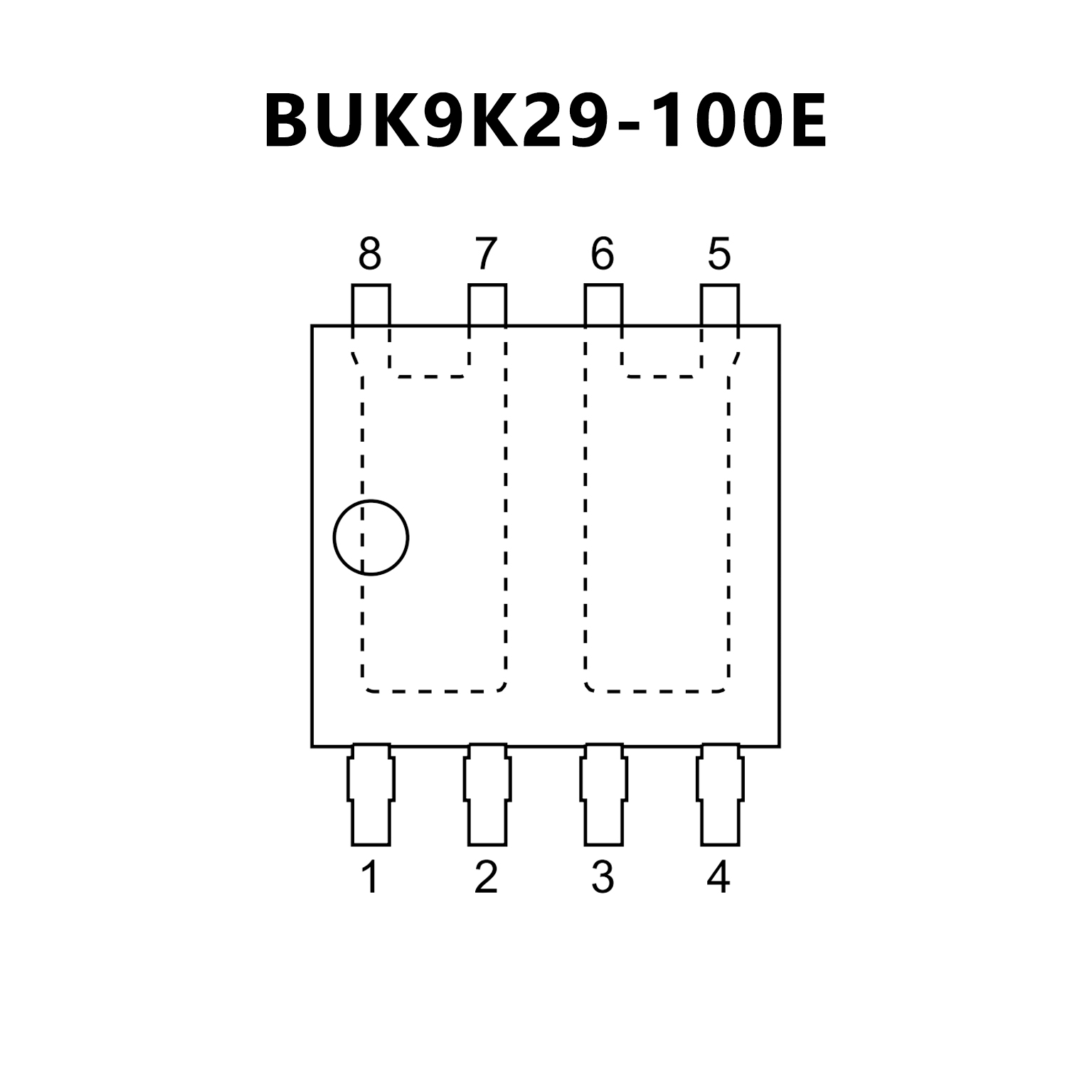

PIN CONFIGUTION
