N-channel 40 V, 20.0 mΩ logic level MOSFET in LFPAK33, TSM150NB04LCV Replace BUK9M20-40H.
TSM150NB04LCV
TSM150NB04LCV.pdf
TSM150NB04LCV.pdfFEATURES
• Low RDS(ON) to minimize conductive losses
• Logic level
• Low gate charge for fast power switching
• 100% UIS and Rg Tested
• RoHS Compliant
• Halogen-free according to IEC 61249-2-21

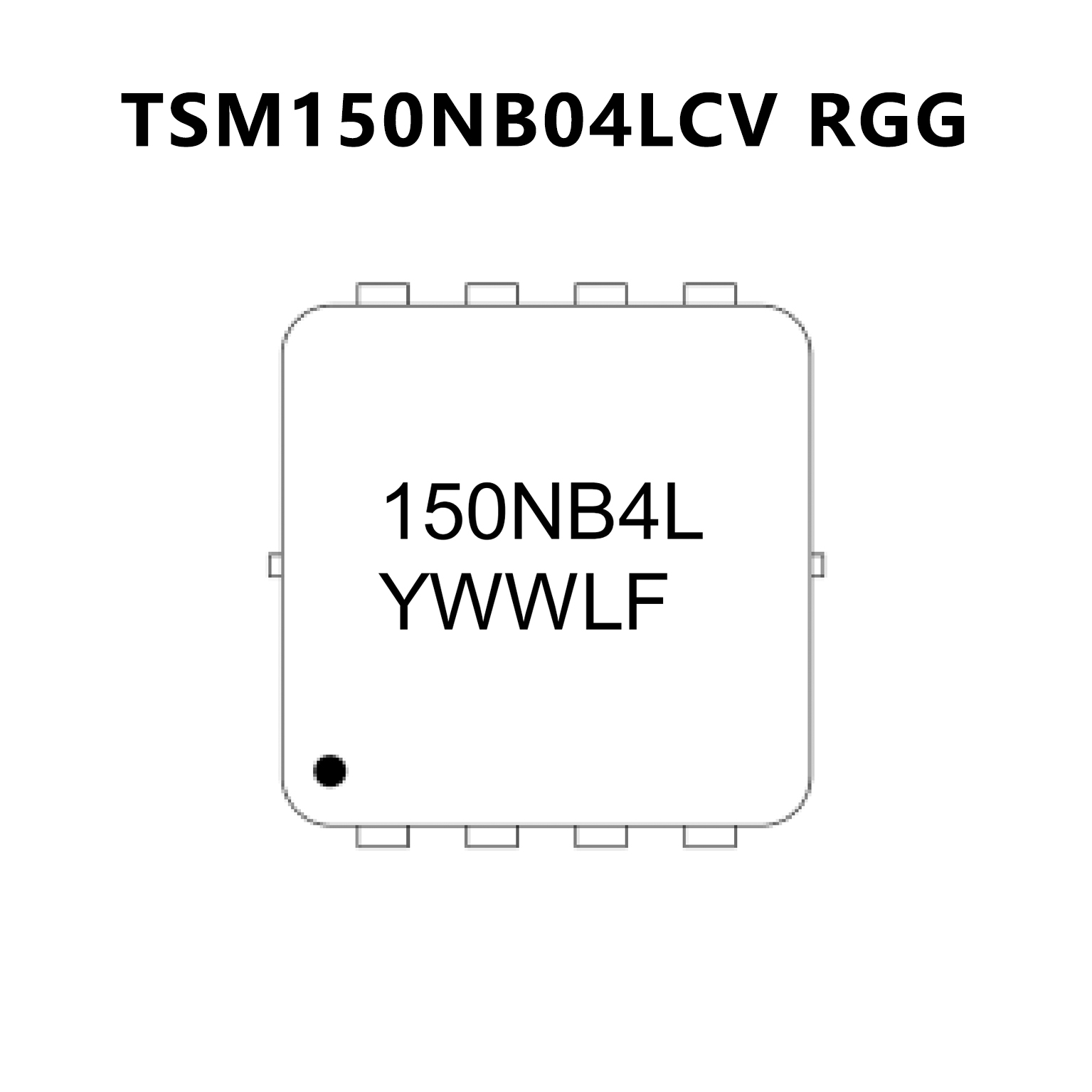

PIN CONFIGUTION
CROSS
FEATURES
• Fully automotive qualified to AEC-Q101 at 175 °C
• Trench 9 superjunction technology:
• Low power losses, high power density
• LFPAK copper clip package technology:
• High robustness and reliability
• Gull wing leads for high manufacturability and AOI
• Repetitive avalanche rated

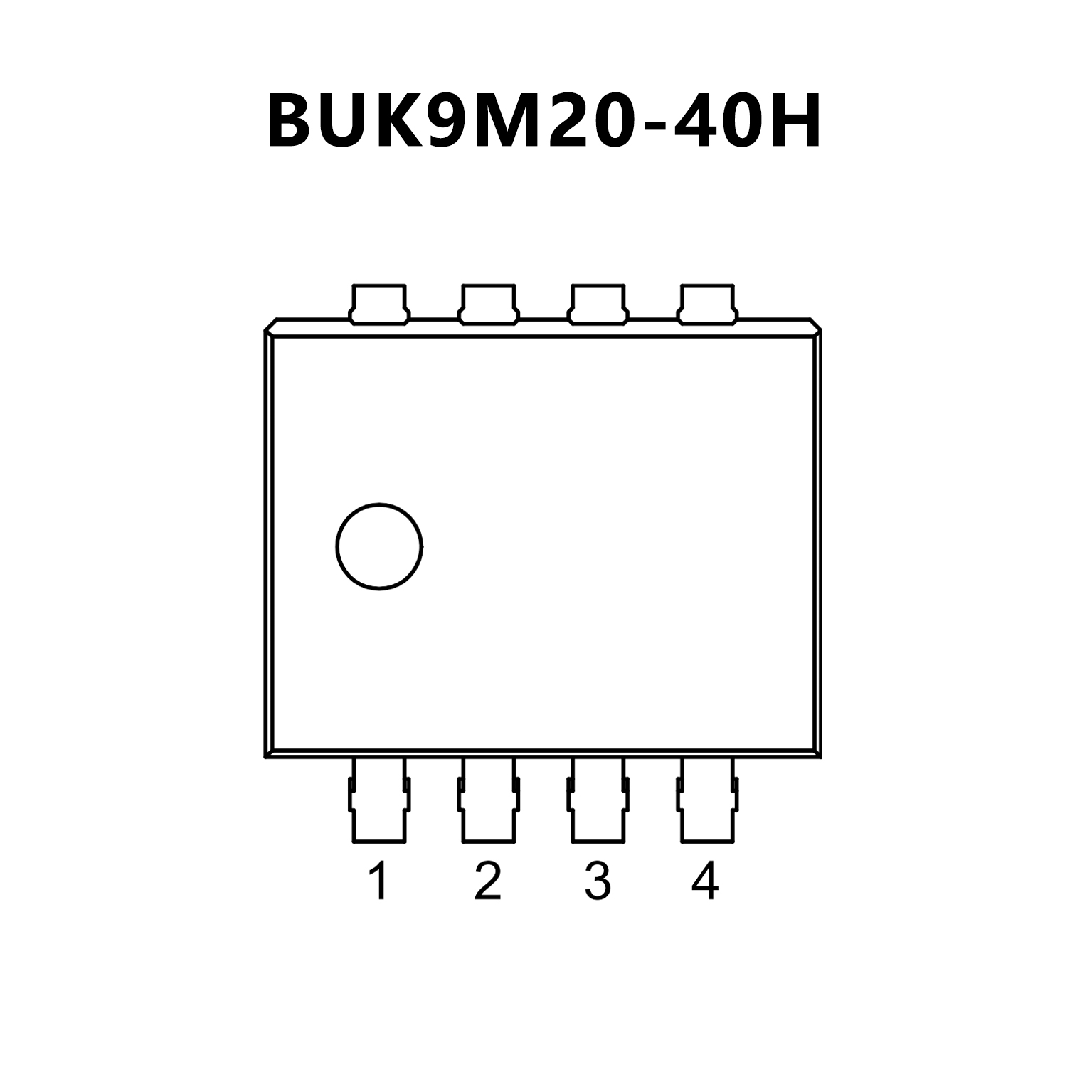

PIN CONFIGUTION
