High-Voltage, High-Current Darlington Transistor Arrays, ULN2003 Replace ON ULN2003ADR2G.
ULN2003
ULN2003.pdf
ULN2003.pdfFEATURES
• 500mA Rated Collector Current (Single Output)
• High-Voltage Outputs: 50V
• Output Clamp Diodes
• Inputs Compatible with Popular Logic Types
• Relay Driver Applications
•“Green” Molding Compound (No Br, Sb)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

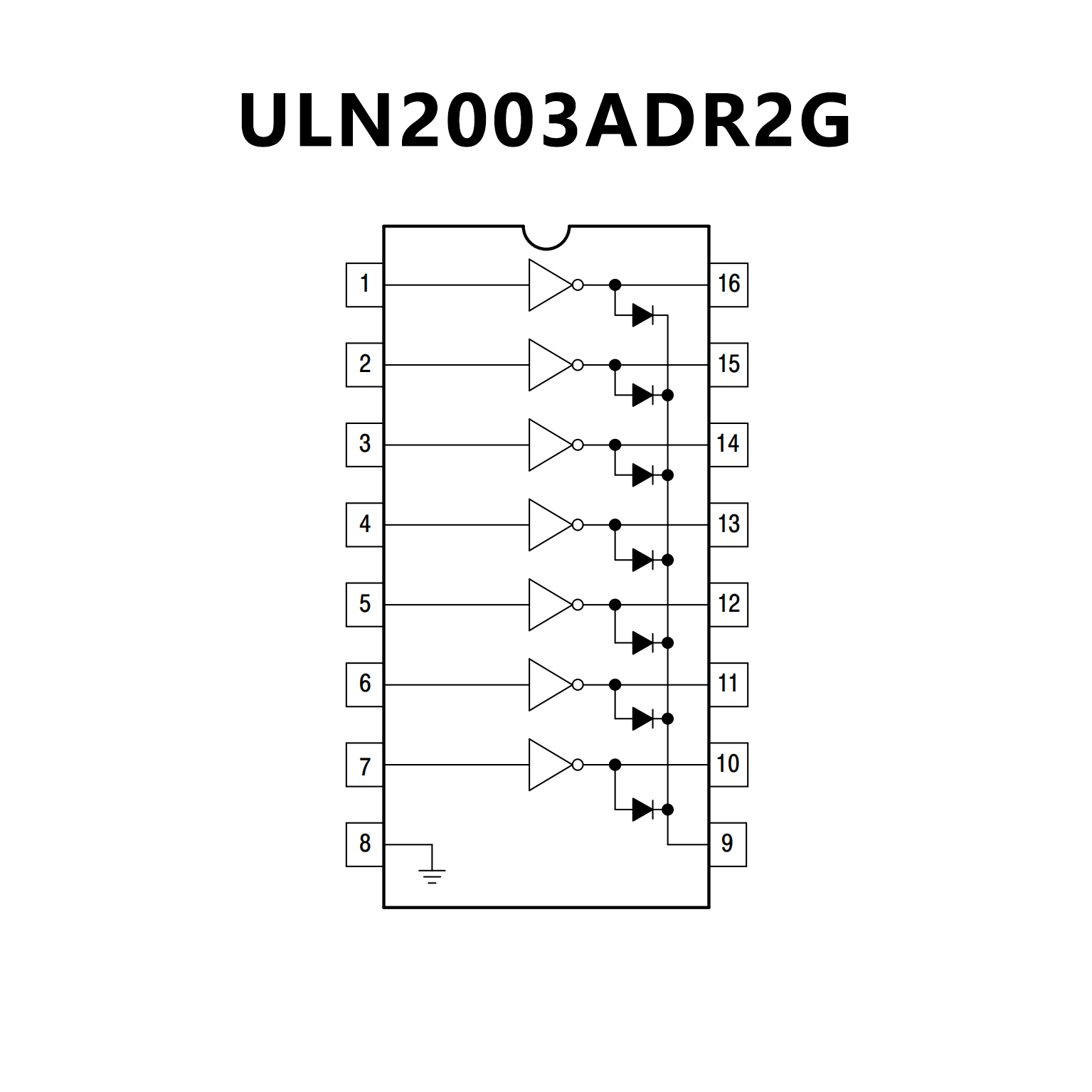

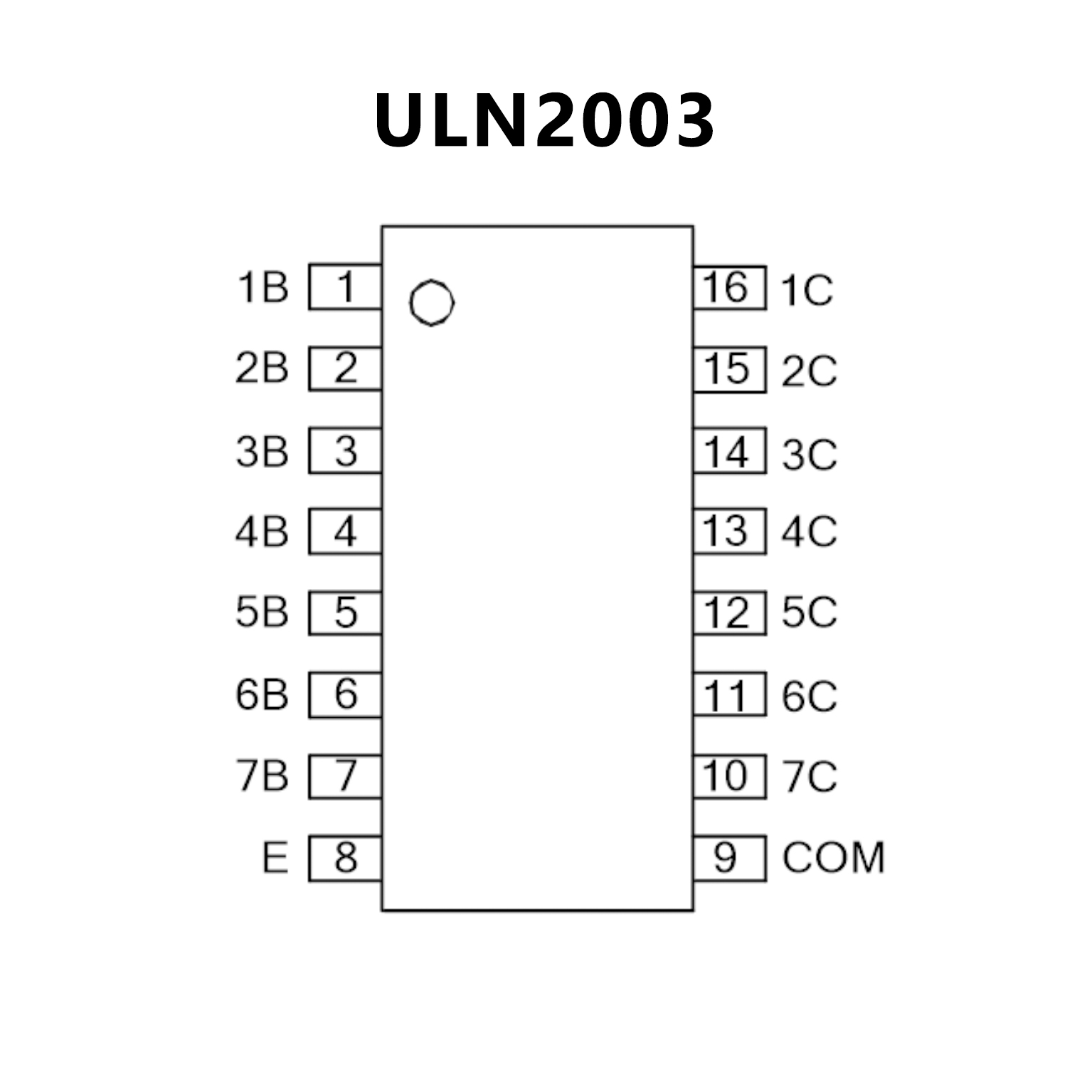

PIN CONFIGUTION
CROSS
