High-Voltage, High-Current Darlington Transistor Arrays, ULN2004 Replace TI ULN2004.
ULN2004
ULN2004.pdf
ULN2004.pdfFEATURES
• 500mA Rated Collector Current (Single Output)
• High-Voltage Outputs: 50V
• Output Clamp Diodes
• Inputs Compatible with Popular Logic Types
• Relay Driver Applications
•“Green” Molding Compound (No Br, Sb)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

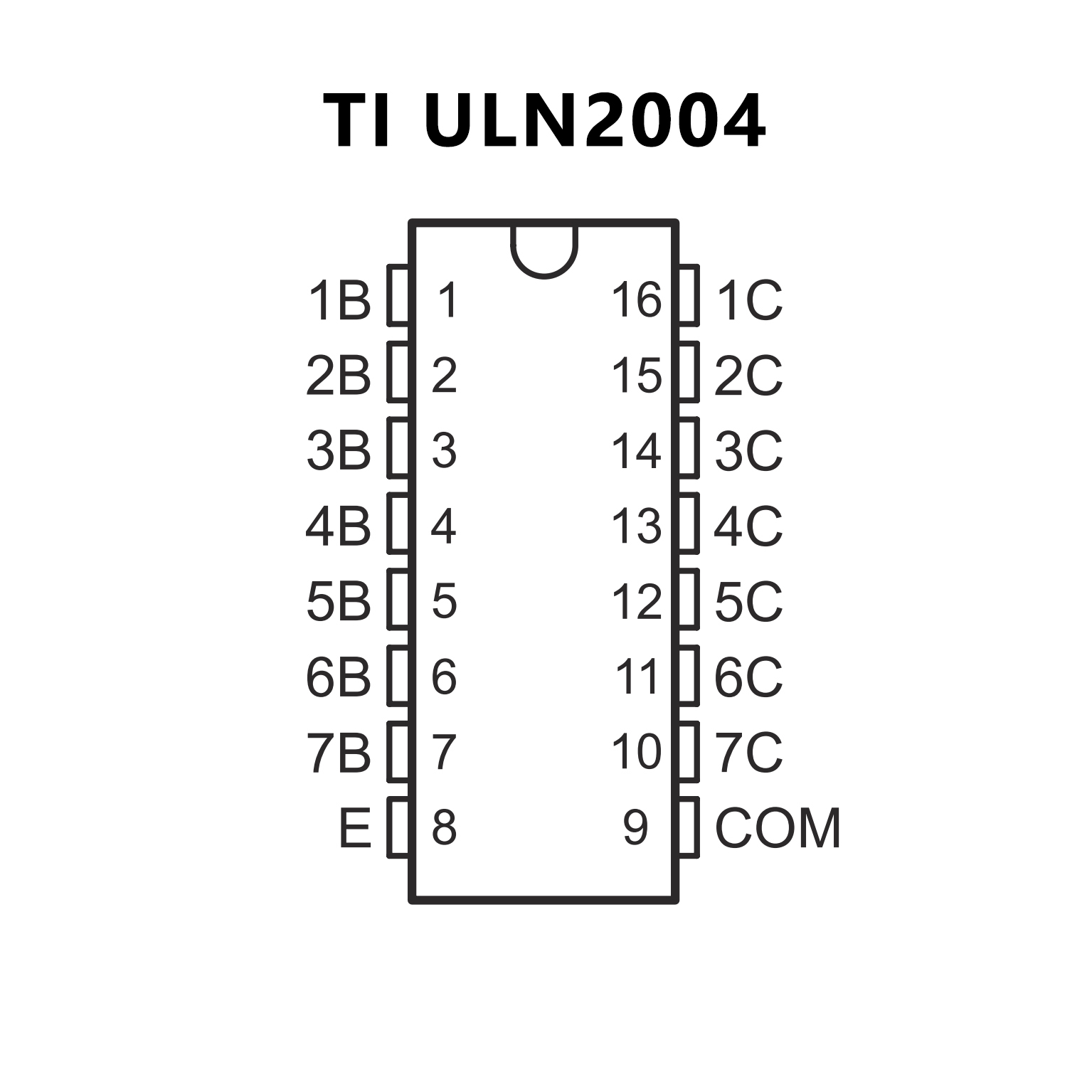

PIN CONFIGUTION
CROSS
FEATURES
• 500mA-rated collector current (single output)
• High-voltage outputs: 50V
• Output clamp diodes
• Inputs compatible with various types of logic
• Relay-driver applications

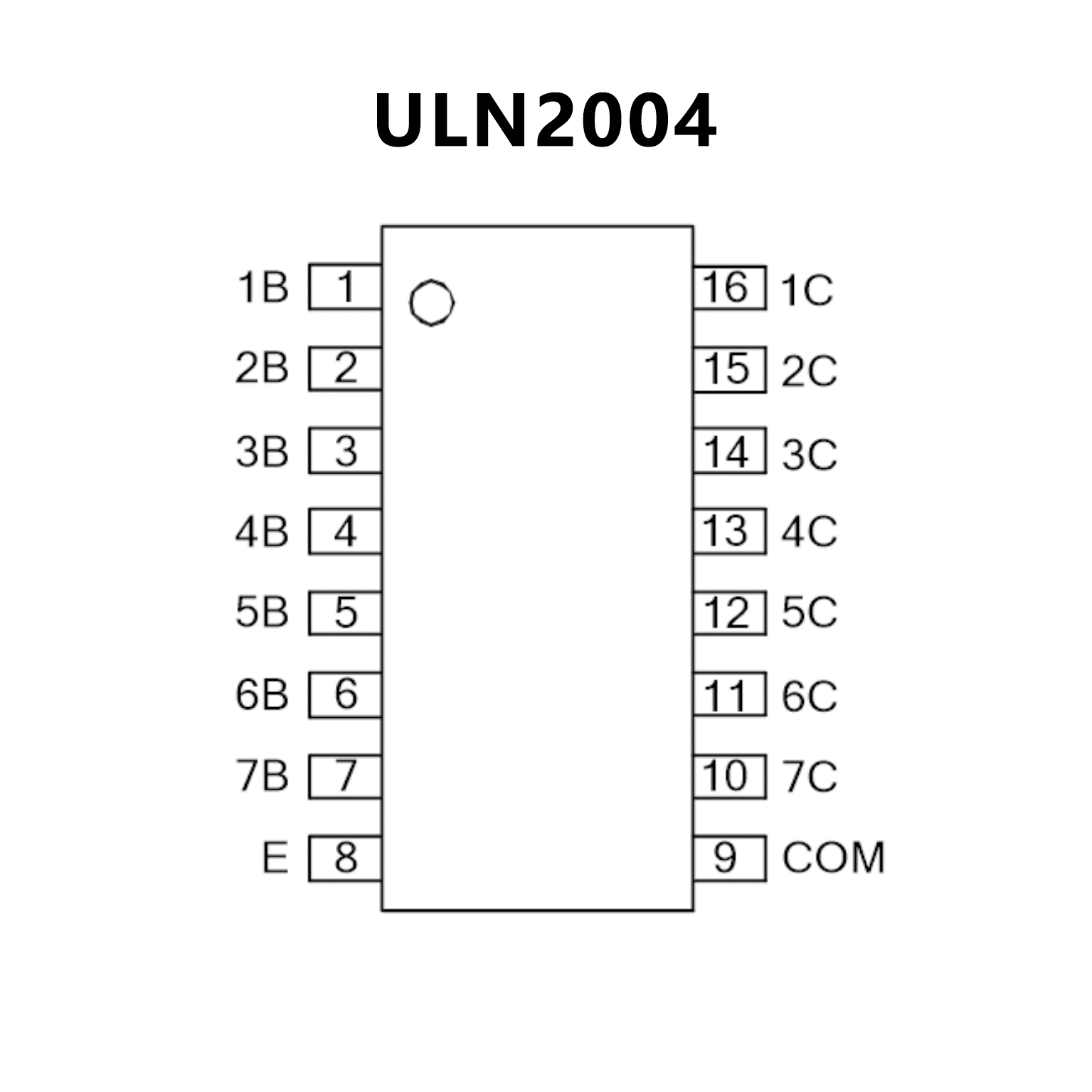

PIN CONFIGUTION
