26V, Bidirectional, Zero-Drift, Low- or High-Side, Voltage-Output, Current-Shunt Monitor, ZXCT199 P2P INA199.
ZXCT199
ZXCT199.pdf
ZXCT199.pdfFEATURES
• Supply Voltage Range: 2.7V to 26V
• Wide Common-Mode Range: -0.1V to 26V
• Gain Error: (Maximum Overtemperature)
• A and B Version: ±1.0%
• C Version: ±0.8%
• Choice of Gains:
• ZXCT 199X1: 50V/V
• ZXCT 199X2: 100V/V
• ZXCT 199X3: 200V/V
• Low Offset Voltage
• A Version max ±150μV
• B Version max ±100μV
• C Version max ±80μV
• Zero-Drift Performance: 0.5μV/°C (max)
• Rail-to-Rail Output Capability
• Low Quiescent Current: 100μA (max)
• Package: 6-Pin SOT363
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An automotive-compliant part is available under separate
datasheet (ZXCT199Q)

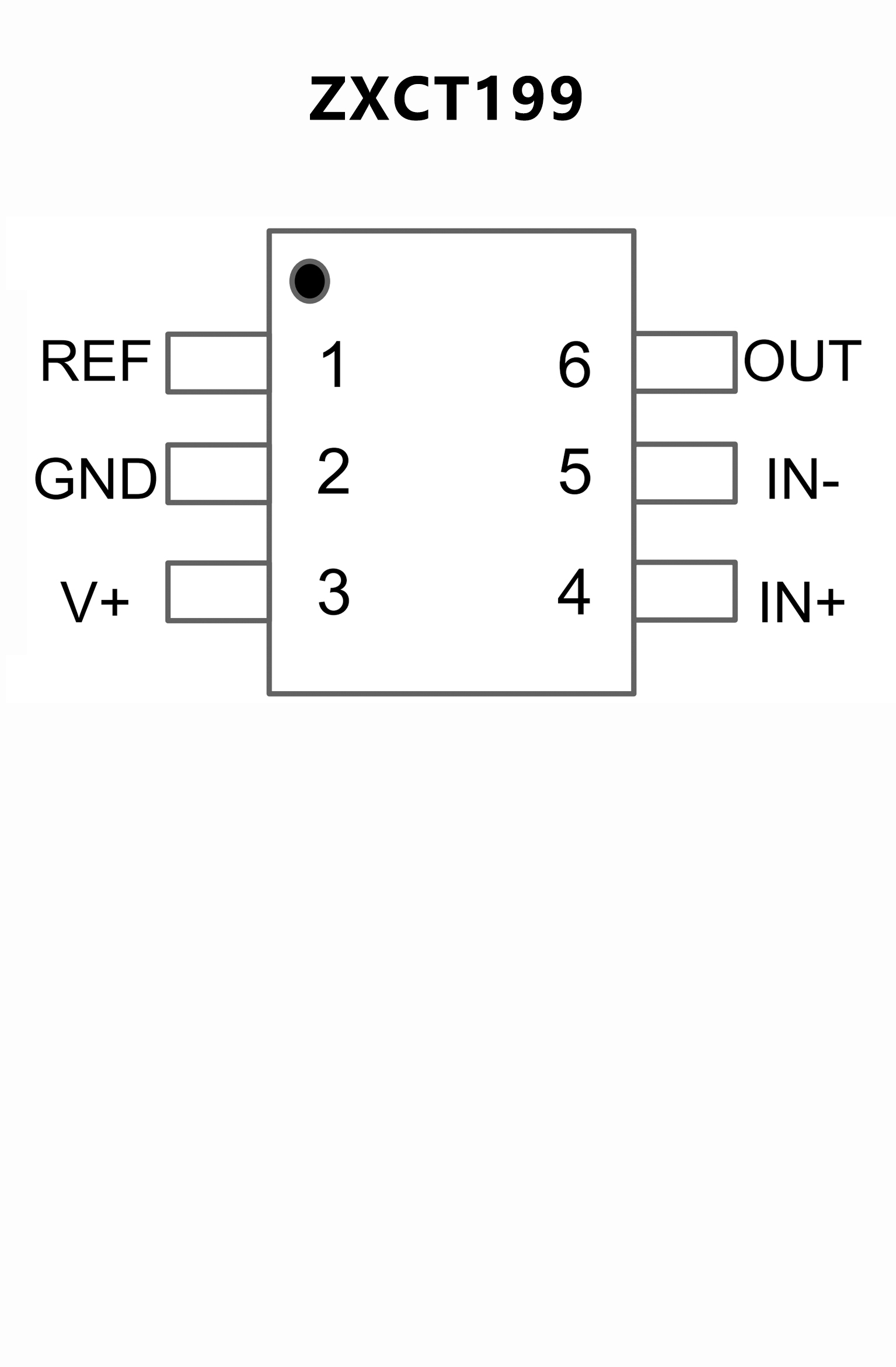

PIN CONFIGUTION
CROSS
FEATURES
• Wide Common-Mode Range: –0.3 V to 26 V
• Offset Voltage: ±150 μV (Maximum)
(Enables Shunt Drops of 10-mV Full-Scale)
• Accuracy:
– Gain Error (Maximum Over Temperature):
– ±1% (C Version)
– ±1.5% (A and B Versions)
– 0.5-μV/°C Offset Drift (Maximum)
– 10-ppm/°C Gain Drift (Maximum)
• Choice of Gains:
– INA199x1: 50 V/V
– INA199x2: 100 V/V
– INA199x3: 200 V/V
• Quiescent Current: 100 μA (Maximum)
• Packages: 6-Pin SC70, 10-Pin UQFN

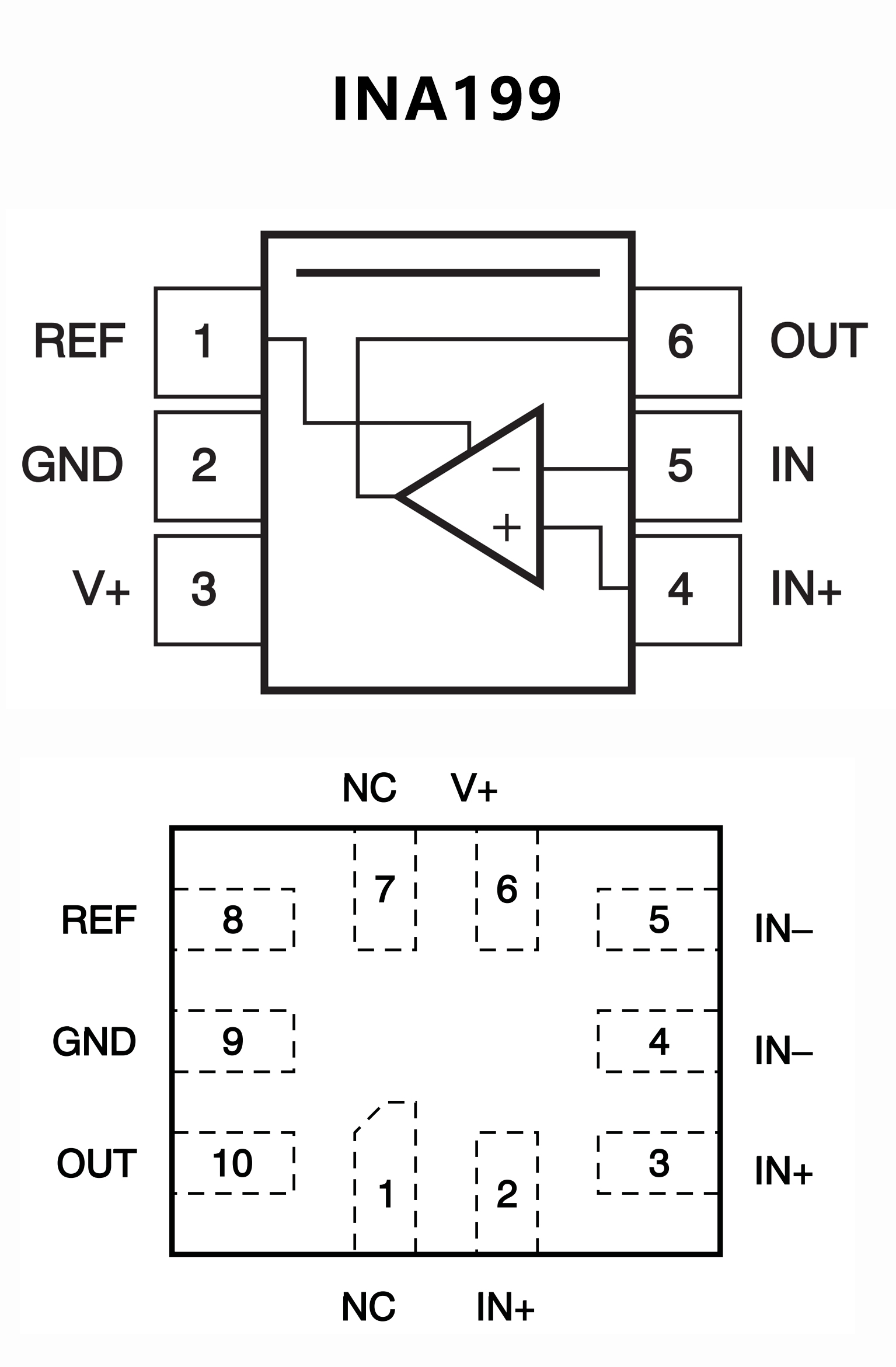

PIN CONFIGUTION
