• Low Power Consumption

• Low Dropout Voltage

• High Input Voltage (up to 36V)

• Output Voltage Tolerance: ±2.5%

• Fixed Output Voltage Versions:

  0.8V to 5.0V with 0.1V per Step

• Adjustable Output Voltages: 0.8V to 5.0V

• -40℃ to +85℃ Operating Temperature Range

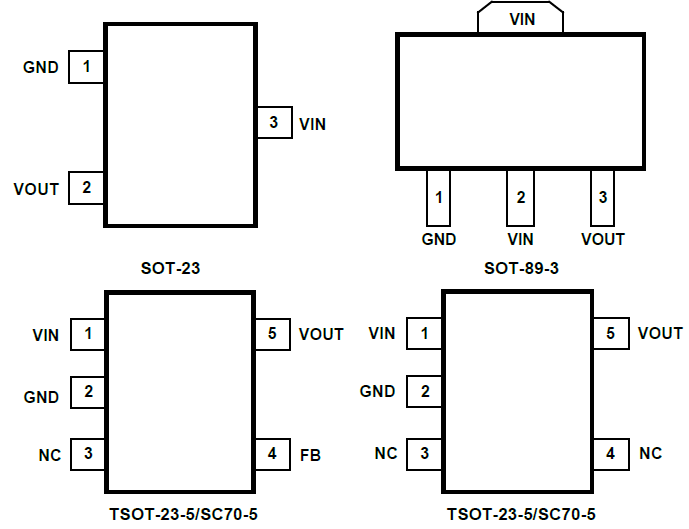

•  Available in Green SOT-89-3, SOT-23, TSOT-23-5 and

   SC70-5 Packages

The SGM2200H series is a set of low power high voltage regulators implemented in CMOS technology. These devices allow input voltages as high as 36V. The SGM2200H series is available in several fixed and adjustable output voltages. CMOS technology ensures low dropout voltage and low quiescent current.

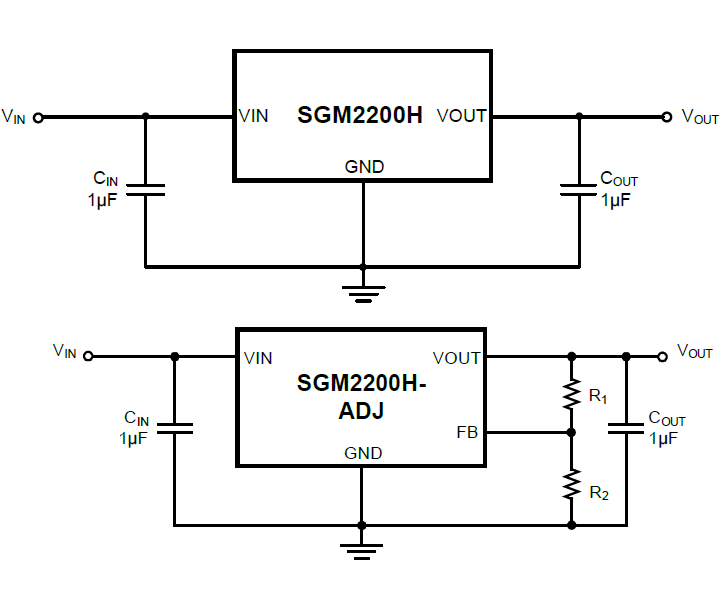

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

The SGM2200H series is available in Green SOT-89-3, SOT-23, TSOT-23-5 and SC70-5 packages. It operates over an ambient temperature range of -40℃ to +85℃.
