● Support up to 4 LEDs

● Low 50mV Dropout at 30mA

● Less than ±5% LED Current Matching

● Simple LED Brightness Control

● Low Shutdown Current

● 2.5V to 5.5V Supply Voltage Range

● Thermal Shutdown Protection

● Operating Temperature Range: -40℃ to +85℃

● Available in Green SOT-23-6 Package

The SGM3127 low-dropout bias supply for white LEDs is a high-performance alternative to the simple ballast resistors used in conventional white LED designs. It is optimized for low power keypad and portable backlighting applications.

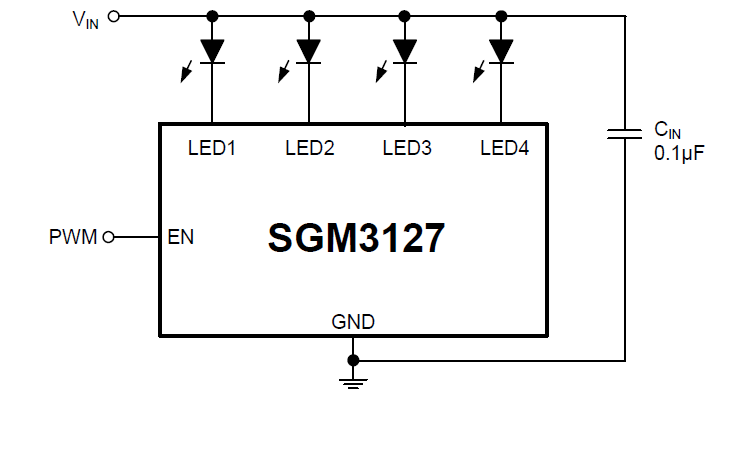

The SGM3127 uses an internal resistor to set the bias current for four LEDs, which are matched to ±5%. The SGM3127's advantages over ballast resistors include much lower bias variation with supply voltage variation, significantly lower dropout voltage, and in some applications, significantly improved efficiency. The SGM3127 requires only a 50mV dropout voltage at a 30mA load on each output to match the LED brightness.

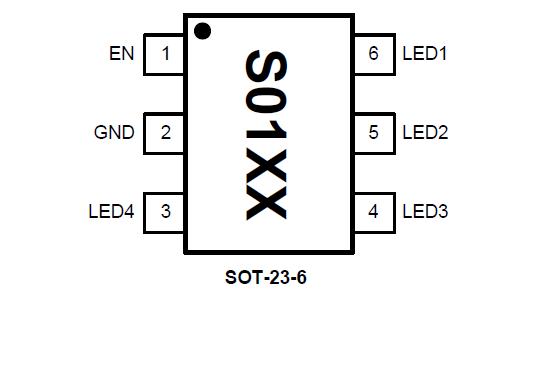

The SGM3127 is available in Green SOT-23-6 package. It operates over an ambient temperature range of -40℃ to +85℃.
