• Input Voltage Range: 2.7V to 5.5V

• Drives up to 6 LEDs at 27mA Each

• PWM Dimming

• High Efficiency by Fractional Conversion with 1× and 1.5× Modes

• Switching Frequency: 0.93MHz

• Regulated Output Current with ±4.8% Matching

• Internal Soft-Start Limits Inrush Current

• Low Input Ripple and Low EMI

• Over Current and Over Temperature Protection

• Under Voltage Lockout with Hysteresis

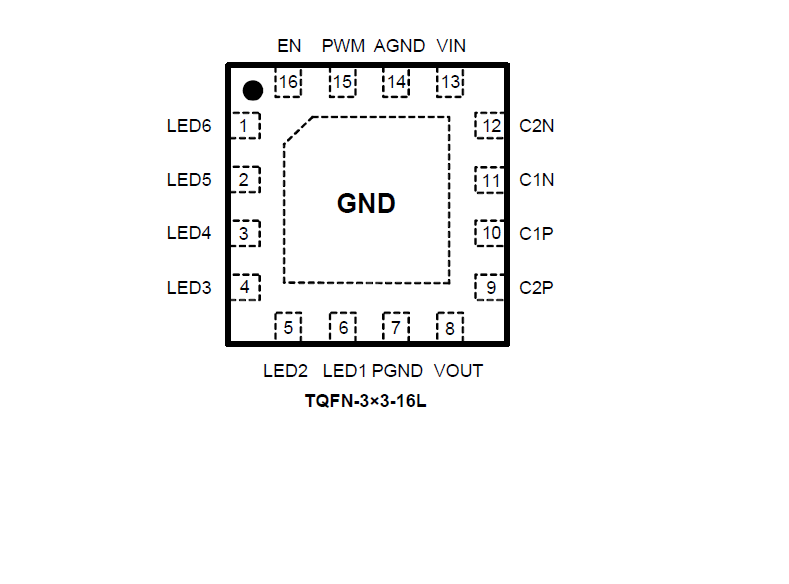

• Available in Green TQFN-3×3-16L Package

The SGM3144 is a high performance white LED driver. It integrates current sources and automatic mode selection charge pump. The part maintains the high

efficiency by utilizing a 1×/1.5× fractional charge pump and low dropout current sources. The small equivalent 1× mode open loop resistance and ultra-low dropout voltage of current source extend the operating time of 1× mode and optimize the efficiency of Li-ion battery in white LED applications.

The SGM3144 supports up to 6 white LEDs and regulates a constant current which the initial value can be set by an internal resistor. The part implements PWM dimming to adjust the brightness of LED. Users can easily configure the LED current from 0mA to 27mA by a digital PWM signal. SGM3144 can be turned off by EN pin. The operating voltage range is 2.7V to 5.5V. Internal soft-start circuitry effectively reduces the in-rush current while both start-up and mode transition.
