• Rail-to-Rail Output 2mV Typical VOS

• High Speed

  350MHz, -3dB Bandwidth (G = +1)

  265V/μs, Slew Rate

  32ns Settling Time to 0.1% with 2V Step

• Operates on 2.5V to 5.5V Supplies

• Input Voltage Range = -0.2V to +3.8V with VS = 5V

• Excellent Video Specs (RL = 150Ω, G = +2)

  Gain Flatness 0.1dB to 70MHz

  Diff Gain: 0.004%, Diff Phase: 0.08 degree

• Low Power

  4.3mA/Amplifier Typical Supply Current

  SGM8093 75μA when Disabled

• Small Packaging

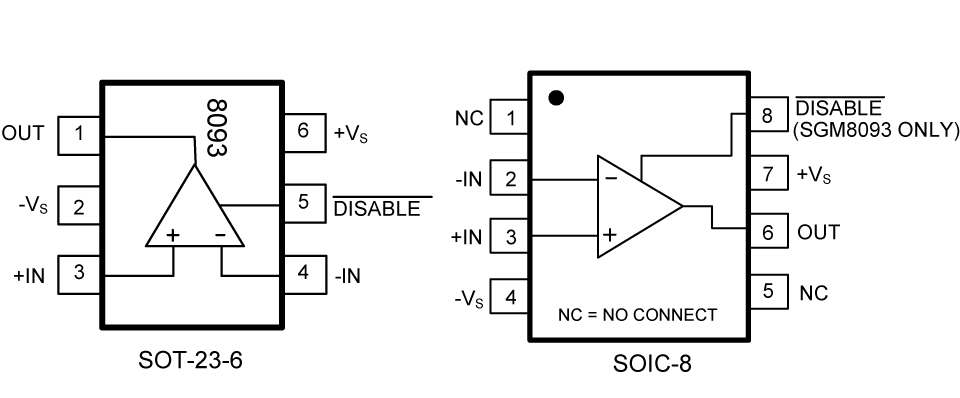

  SGM8093 Available in SOIC-8 and SOT-23-6

The SGM8091/8093(single), SGM8092 (dual), SGM8094 (quad) are rail-to-rail output voltage feedback amplifiers moffering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.5V.

Despite being low cost, the SGM8091 series provide excellent overall performance. They offer wide bandwidth to 350MHz (G = +1) along with 0.1 dB flatness out to 125MHz (G = +1) and offer a typical low power of 4.3mA/amplifier.The SGM8093 has a power-down disable feature that reduces the supply current to 75μA. These features make the SGM8093 ideal for portable and battery-powered applications where size and power are critical. All are specified over the extended -40℃ to +125℃ temperature range.
