● High Accuracy: ±1%

● Low Power Consumption: 0.6μA (TYP) at VCC = 3V

● Detection Voltage: 1.4V

● Operating Voltage Range: 1V to 6V

● Detection Voltage Temperature Coefficient: ±40ppm/℃ (TYP)

● N-Channel Open-Drain Output

● Delay Time: 22ms (TYP)

● Available in a Green TDFN-2×2-6L Package

The SGM813B is a low power consumption voltage detector with high accuracy detection. This miniature device is capable of monitoring 1.4V and has a fixed 22ms time delay. This device is ideal for use in power- supply sequencing and reset sequencing applications.

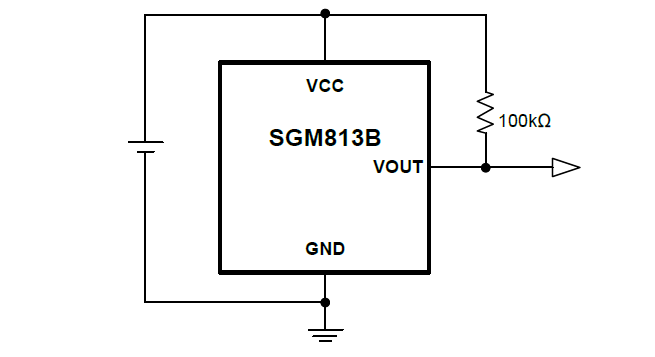

The VCC supply pin provides power and detection voltage, and allows the IC to monitor the power supply.

The VOUT pin is an N-channel open-drain output with active-low reset.

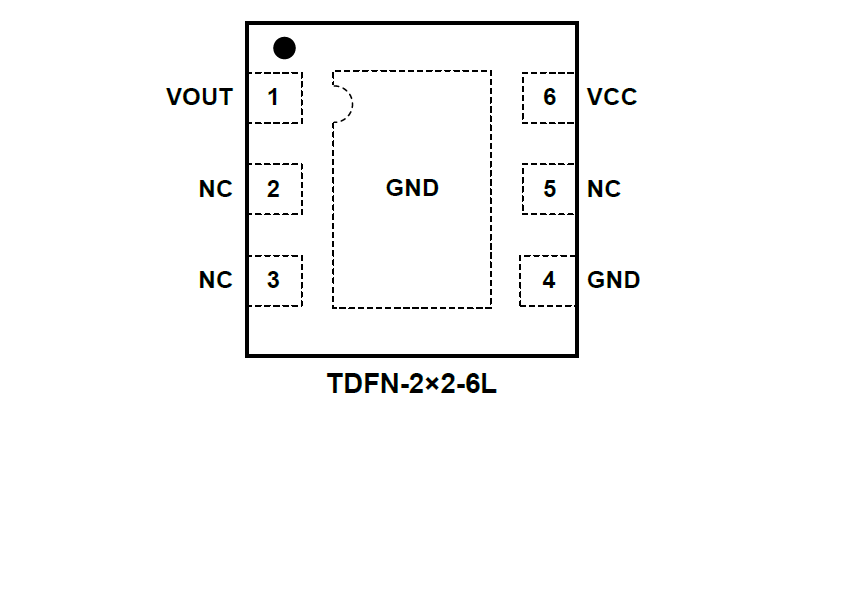

The SGM813B is available in a Green TDFN-2×2-6L package.
