High Speed Operational Amplifier
SGM8654
SGM8654.pdf
SGM8654.pdf
No.10631
FEATURES
• Low Cost
• Rail-to-Rail Output：2mV Typical VOS
• Gain-Bandwidth Product: 50MHz
• High Slew Rate: 66V/µs
• Settling Time to 0.1% with 2V Step: 60ns
• Overload Recovery Time: 25ns
• Low Noise: 8.7nV/ Hz
• Operates on 2.5V to 5.5V Supplies
• Input Voltage Range = -0.2V to + 3.8V with VS = 5V
• Low Power 2.3mA/Amplifier Typical Supply Current
• Small Packaging
SGM8654 Available in TSSOP-14 and SOIC-14
DESCRIPTION
The SGM8651/2/3/4/5 are high precision, low noise, low distortion, rail-to-rail output CMOS voltage feedback operational amplifiers offering ease of use and low cost. They have a wide input common-mode voltage range and output voltage swing, running at single-supply voltage from 2.5V to 5.5V. Despite being low cost, the SGM8651/2/3/4/5 provide excellent overall performance. They offer wide gainbandwidth product to 50MHz and a typical low power of 2.3mA/amplifier.
The SGM8651/2/3/4/5‘s low distortion and fast settling make them ideal for buffering high speed A/D or D/A converters. All are specified over the extended –40℃ to +125℃ temperature range.

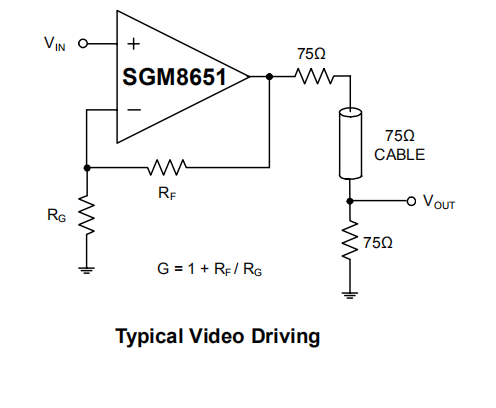

APPLICATION CIRCUIT

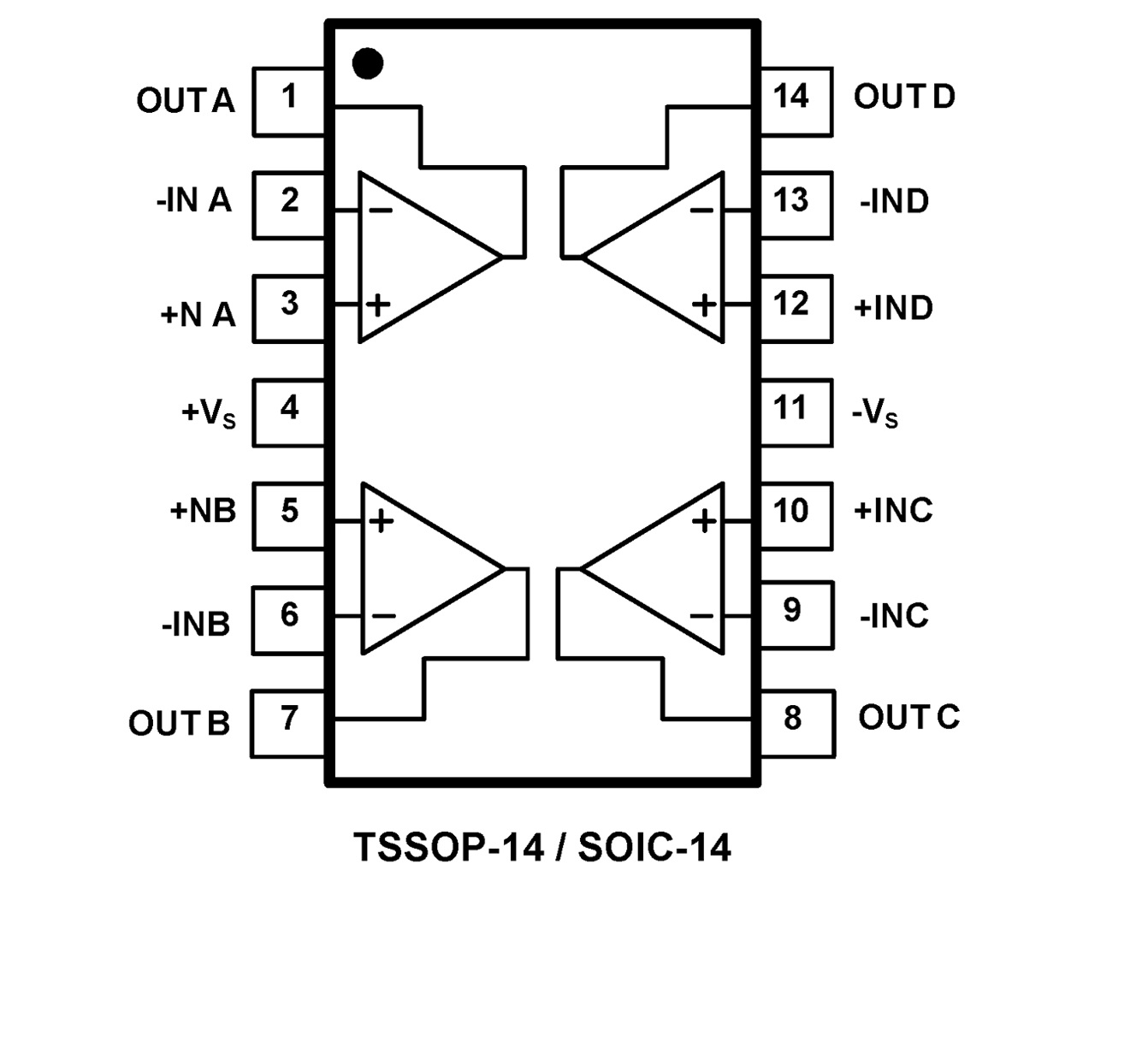

PIN CONFIGUTION
