• Rail-to-Rail Input and Output

• Supply Voltage Range: 1.8V to 5.5V

• Low Input Offset Voltage: 0.2mV (TYP)

• Gain-Bandwidth Product: 110kHz

• Low Supply Current: SGM8951 26μA (TYP)

• Small Packaging:

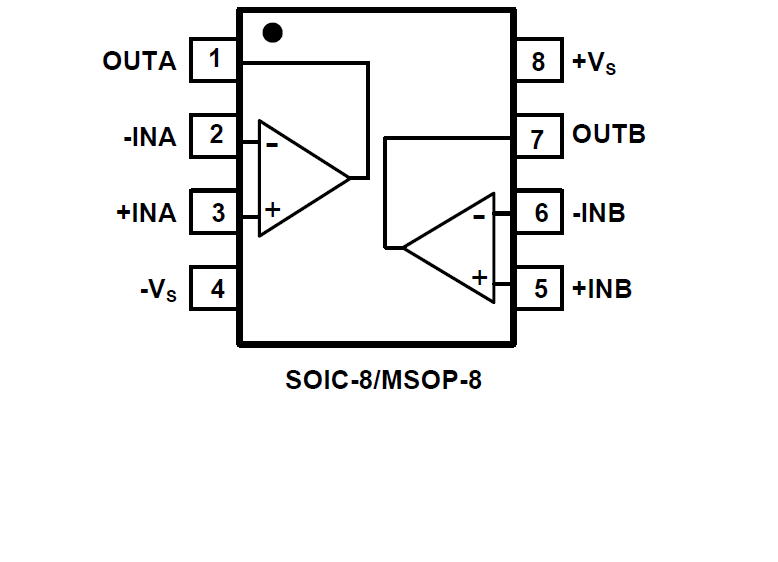

  SGM8952 Available in MSOP-8 and SOIC-8 Packages

The SGM8951 (single) and SGM8952 (dual) are high-performance CMOS operational amplifiers optimized for low supply operation. These amplifiers are designed to operate on single supplies from 1.8V to 5.5V. Applications include sensor amplification and signal conditioning in battery-powered systems. The SGM8951/2 offer excellent CMRR without the crossover distortion associated with traditional complimentary input stages. This results in excellent linearity performance. The input common mode range includes both the negative and positive supplies. The SGM8951/2 provide excellent overall performance. They exhibit low offset, making these devices an excellent choice for high quality, low voltage or battery powered systems.
