• Triple 3rd-Order 8MHz (SD) Filters

• Transparent Input Clamping

• 6dB Output Driver Gain and Drive Dual Video Loads

• Rail-to-Rail Output

• Input Voltage Range Includes Ground

• AC- or DC-Coupled Inputs

• AC- or DC-Coupled Outputs

• Operates from 2.5V to 5.5V Single Power Supply

• Low Power (2.5mA/Channel)

7.4mA Total Supply Current

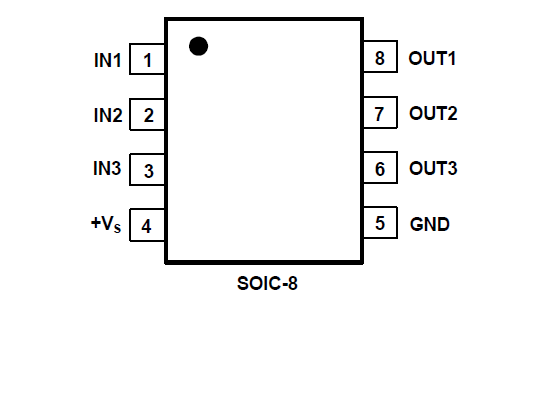

• Available in Green SOIC-8 Package

SGM9123 is a video buffer which integrates triple 6dB gain rail-to-rail output drivers and triple 3rd-order output reconstruction filters with a -3dB bandwidth of 8MHz and 44V/μs slew rate. SGM9123 provides improved image quality compared with passive LC filters and discrete drivers solution. Operating from single power supply ranging from 2.5V to 5.5V and sinking an ultra-low 7.4mA quiescent current, the SGM9123 is ideally suited for battery powered applications.

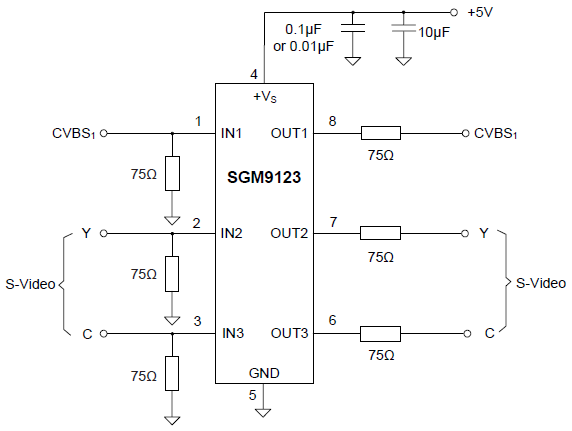

SGM9123 can be DC-coupled or AC-coupled with input video signal, such as the output stage of DAC to eliminate out-of-band noise. Internal diode clamps and bias circuitry may be used if AC-coupled inputs are required. SGM9123 also integrates an internal level shift circuit which avoids sync-pulse being clipped and allows DC-coupled output.  The SGM9123 is available in Green SOIC-8 package and ESD (HBM) reaches 8KV.
