N-Channel Logic Level Enhancement Mode Field Effect Transistor
PW5D8EA
PW5D8EA.pdf
PW5D8EA.pdf
No.10594
FEATURES
• Pb−Free, Halogen Free and RoHS compliant.
• Low RDS(on) to Minimize Conduction Losses.
• Ohmic Region Good RDS(on) Ratio.
• Optimized Gate Charge to Minimize Switching Losses.
• ESD Protection - HBM Class : 1C
DESCRIPTION
• N-Channel Logic Level Enhancement Mode Field Effect Transistor

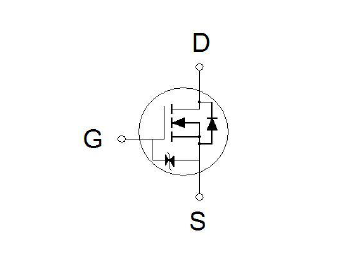

APPLICATION CIRCUIT

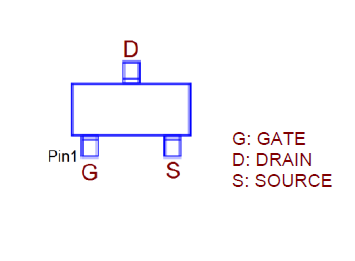

PIN CONFIGUTION
