Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor
PZ5D8JZ
PZ5D8JZ.pdf
PZ5D8JZ.pdf
No.10595
FEATURES
• Pb−Free, Halogen Free and RoHS compliant.
• Low RDS(on) to Minimize Conduction Losses.
• Ohmic Region Good RDS(on) Ratio.
• Optimized Gate Charge to Minimize Switching Losses.
• ESD Protection − HBM Class : 1C
DESCRIPTION
• Dual N-Channel Logic Level Enhancement
Mode Field Effect Transistor

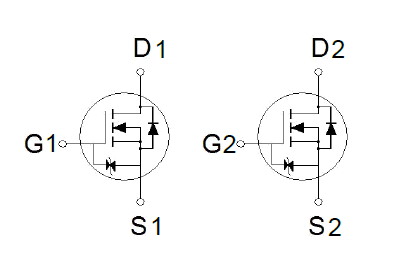

APPLICATION CIRCUIT

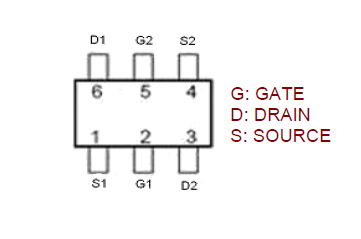

PIN CONFIGUTION
