Data Bus Transient Suppressop
SDA004-7
SDA004-7.pdf
SDA004-7.pdf
No.10606
FEATURES
• ESD Protection >30kV (Human Body Model) (Note 1)
• Ultra-Small Surface Mount Package
• Protects 2 Data Lines
• Low Leakage <25nA
• Low Capacitance 3pF Typ.
• Protects USB 2.0 and USB 1.1
DESCRIPTION
• Data Bus Transient Suppressop
• Case: SOT-363

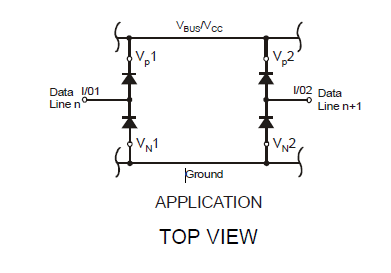

APPLICATION CIRCUIT

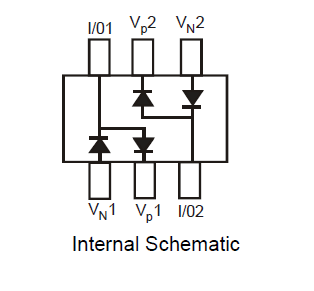

PIN CONFIGUTION
