Dual Surface Mount Schottky Barrier Diode
SDM40E20LC-7
SDM40E20LC-7.pdf
SDM40E20LC-7.pdf
No.10607
FEATURES
• Very Low Forward Voltage Drop
• Guard Ring Construction for Transient Protection
• High Conductance
DESCRIPTION
• Dual Surface Mount Schottky Barrier Diode

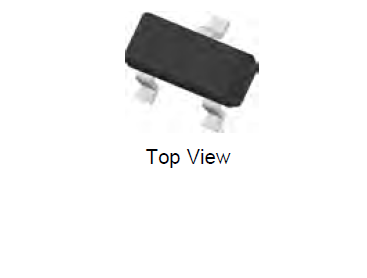

• Case: SOT-23
APPLICATION CIRCUIT

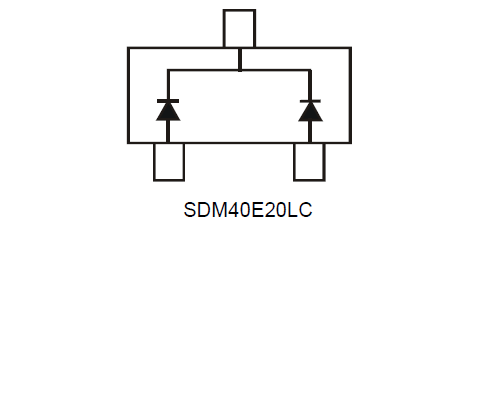

PIN CONFIGUTION
