Surface Mount Schottky Barrier Diode
SDMP0340LCT-7-F
SDMP0340LCT-7-F.pdf
SDMP0340LCT-7-F.pdf
No.10608
FEATURES
• Low Forward Voltage Drop
• Guard Ring Die Construction for Transient Protection
• Ideal for Low Logic Level Applications
• Low Capacitance
DESCRIPTION
• Surface Mount Schottky Barrier Diode

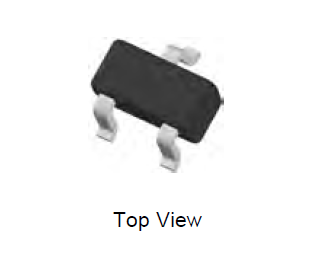

• Case: SOT-523
APPLICATION CIRCUIT

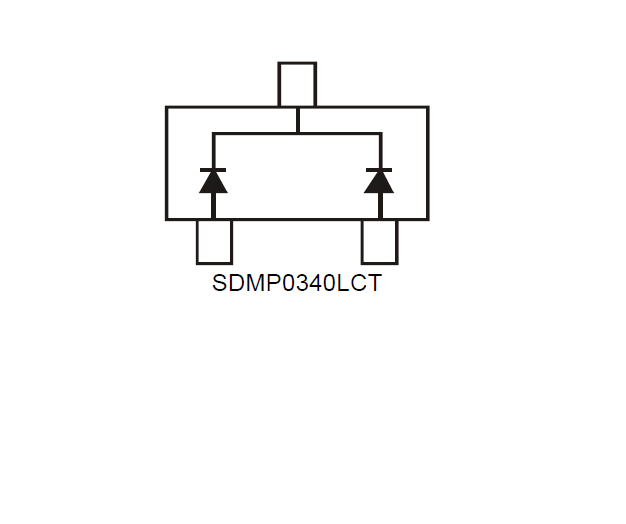

PIN CONFIGUTION
