• 500mA Guaranteed Output Current

• Ultra Low Dropout Voltage

• Low Output Noise

• Thermal-Overload Protection

• Output Current Limit

• High PSRR (73dB at 1kHz)

• 1.8V Logic-Controlled Shutdown

• 110kΩ Pull Down Resistor at EN Pin

• Fixed Output Voltages: 2.8V, 3.0V and 3.3V

• Adjustable Output from 1.2V to 5.0V

• -40℃ to +85℃ Operating Temperature Range

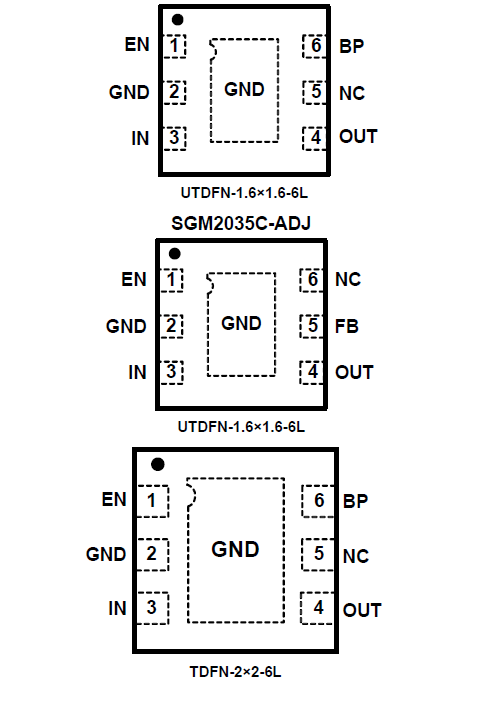

• Available in Green UTDFN-1.6×1.6-6L and TDFN-2×2-6L Packages

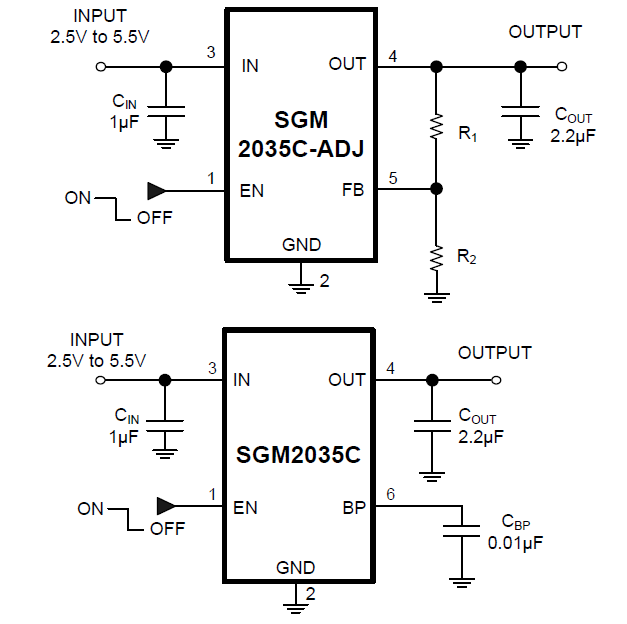

The SGM2035C is a low-power, low-noise, low-dropout, CMOS linear voltage regulator that operates from a 2.5V to 5.5V input voltage. The SGM2035C is the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The SGM2035C also offers ultra low dropout voltage to prolong battery life in portable electronics. Systems requiring a quiet voltage source, such as RF applications, will benefit from the SGM2035C’s ultra low output noise (30μVRMS) and high PSRR. An external noise bypass capacitor connected to the device’s BP pin can further reduce the noise level.

Other features include a 110kΩ pull down resistor at EN pin, current limit and thermal shutdown protection.
