● Input Voltage Range: 2.7V to 20V

● Available in 1.8V, 2.5V, 2.8V, 3.3V, 5V and Adjustable Versions

● Current Limiting and Thermal Protection

● Output Current: 800mA

● Line Regulation: 0.03% (TYP)

● Load Regulation: 0.1% (TYP)

● -40℃ to +125℃ Operating Temperature Range

● Available in Green SOT-223-3 and TDFN-3×3-8L Packages

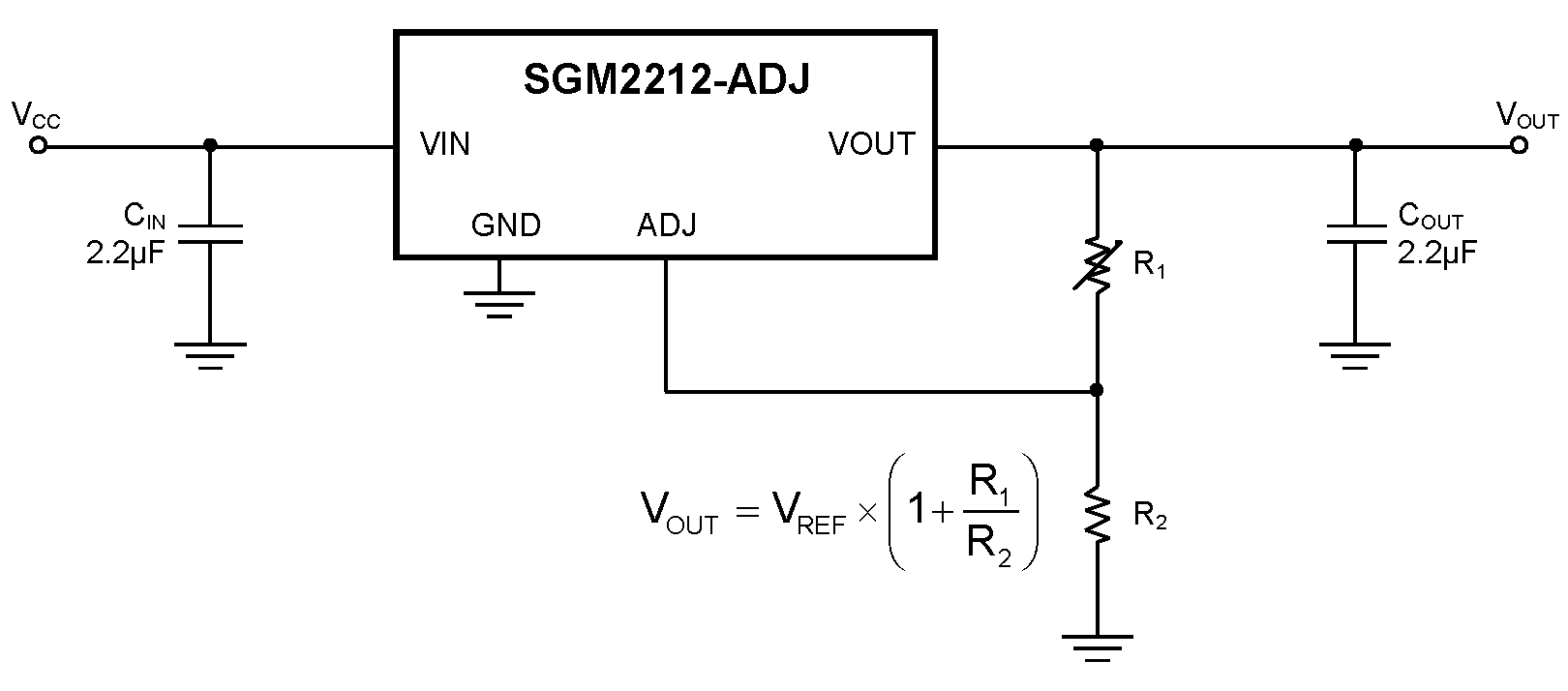

The SGM2212 is a low noise, low quiescent current, high PSRR and low dropout voltage regulator with a dropout of 420mV at 800mA of load current. The SGM2212 is available in an adjustable version, which can set the output voltage from 1.25V to 15V with only two external resistors. In addition, it is available in five fixed voltages, 1.8V, 2.5V, 2.8V, 3.3V and 5V.

The SGM2212 offers current limiting and thermal shutdown. A minimum of 1μF ceramic capacitor is required at the output to improve the transient response and stability. The SGM2212 is available in Green SOT-223-3 and TDFN-3×3-8L packages. It operates over an ambient temperature range of -40℃ to +125℃.
