● Ultra Low Dropout: 35mV/20mA

● Support up to 4 LEDs

● LED Sink Current 20mA

● Deglitch Circuit

● Thermal Shutdown Protection

● 16-Step Brightness Control

● No EMI and Switch Noise

● Operating Temperature Range: -40℃ to +85℃

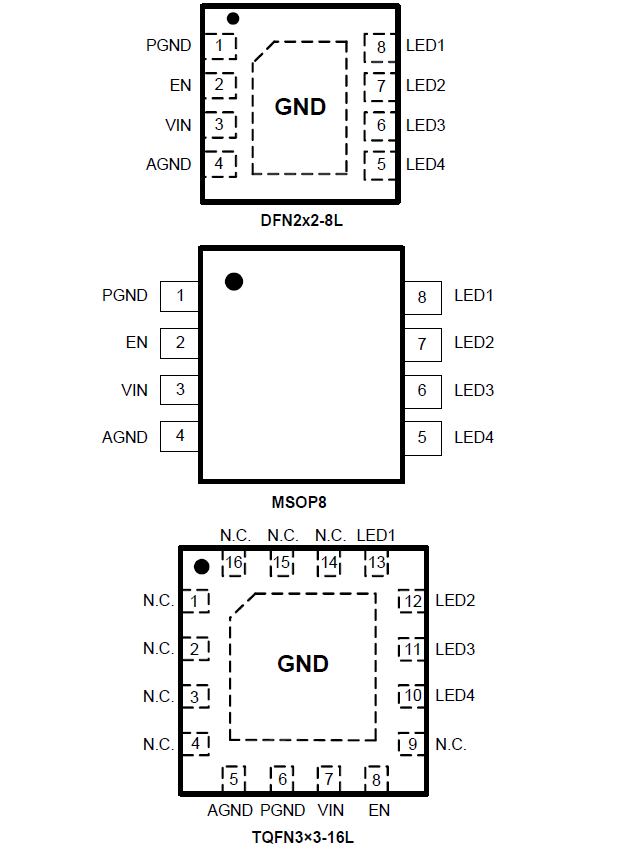

● Available in Green TQFN3×3-16L, DFN2×2-8L and MSOP8 Packages

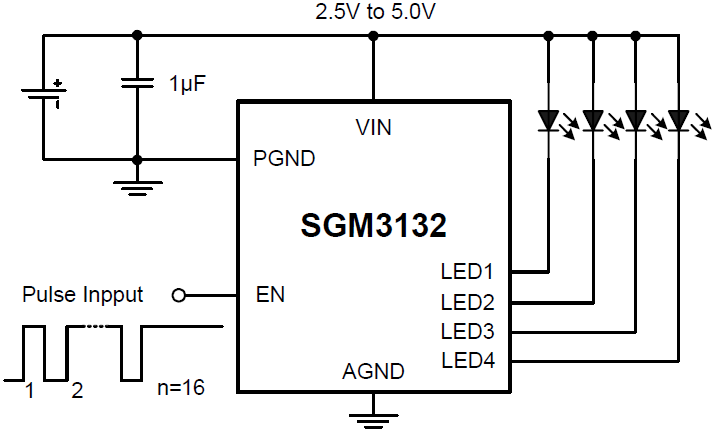

The SGM3132 is a 4-channel ultra low dropout constant source parallel LED driver. The SGM3132 uses an internal resistor to set the bias current for four LEDs. The SGM3132 incorporates a single wire interface to program the output current at 16 continuous steps. It has an internal deglitch circuit for filtering the noise of the EN input.

The SGM3132 requires only a 35mV dropout voltage at a 20mA load. The feature makes SGM3132 ideal for battery-operated systems, such as personal digital assistants.

The SGM3132 is available in Green TQFN3×3-16L, DFN2×2-8L and MSOP8 packages and is specified over an ambient temperature range of -40℃ to +85℃.
