● Equivalent Input Noise Voltage: 5nV/Hz (TYP) at 1kHz

● Unity-Gain Bandwidth: 8.5MHz (TYP)

● Common Mode Rejection Ratio: 140dB (TYP)

● High DC Voltage Gain: 140dB (TYP)

● High Slew Rate: 18V/μs (TYP)

● -40℃ to +85℃ Operating Temperature Range

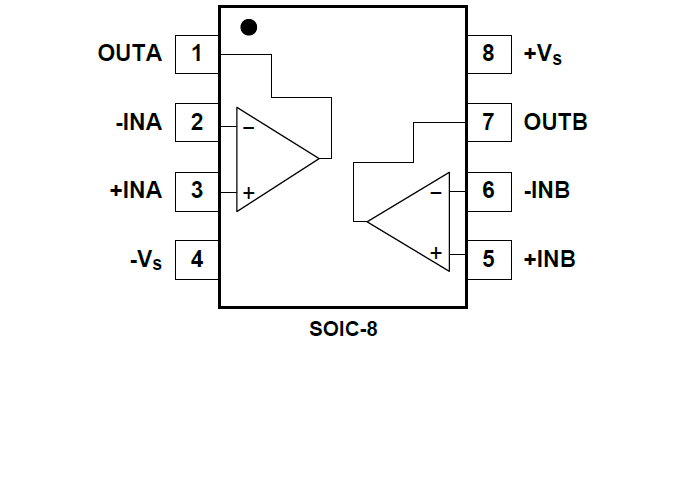

● Available in Green SOIC-8 Package

The SGM5532 is a high-performance operational amplifier combining excellent DC and AC characteristics. It features very low noise, high output-drive capability, high unity-gain and maximum output-swing bandwidths, low distortion, high slew rate, input protection diodes and output short-circuit protection. The operational amplifier is compensated internally for unity-gain operation.

The SGM5532 is available in Green SOIC-8 package. It operates over an ambient temperature range of -40℃ to +85℃.
