• Low Cost

• Excellent Video Performance

• 5-Pole Reconstruction Filter

• Internal Gain: 6dB

• Rail-to-Rail Output

• Input Voltage Range Includes Ground

• AC-Coupled Input

• Operates on 3.0V to 5.5V Single-Supplies

• Low Power

• 7mA Typical Supply Current

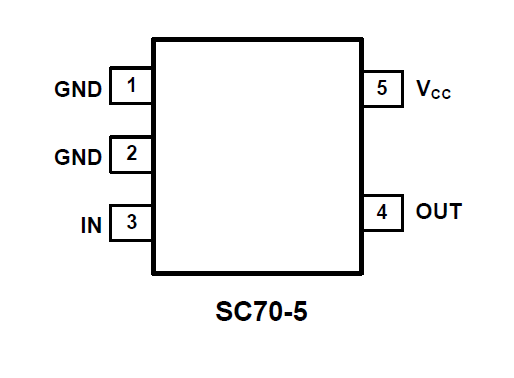

• Small Packaging SGM9111 Available in Green

  SOIC-8 and SC70-5 Packages

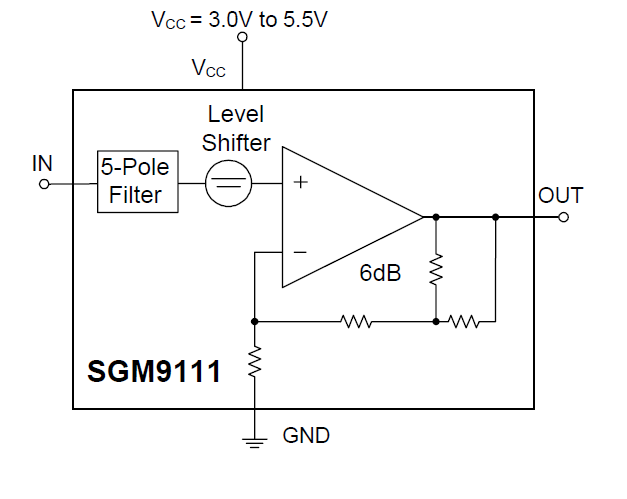

The SGM9111 is single rail-to-rail 5-pole output reconstruction filter with a -3dB bandwidth of 8MHz and a slew rate of 34.8V/μs. Operating from single supplies ranging from 3.0V to 5.5V and sinking an ultra-low 7mA quiescent current, the SGM9111 is ideally suited for low power, battery-operated applications.

The SGM9111 employs an internal level shift circuit that avoids sync-pulse clipping and allows DC-coupled output. It is specified over the extended -40°C to +85°C temperature range. It has Green of SOIC-8 and SC70-5 packages.
