1.0W Surface Mount Zener Diode
SMAZ18-13-F
SMAZ18-13-F.pdf
SMAZ18-13-F.pdf
No.10619
FEATURES
• 1.0W Power Dissipation
• Ideally Suited for Automated Assembly
• 5.1V - 39V Nominal Zener Voltage Range
• Standard VZ Tolerance is ± 5%
DESCRIPTION
• 1.0W Surface Mount Zener Diode

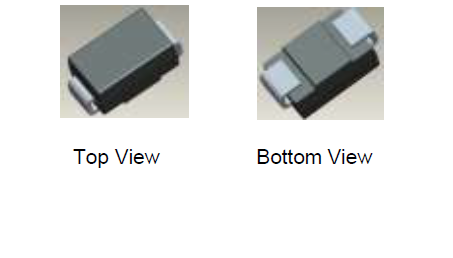

• Case: SMA
APPLICATION CIRCUIT

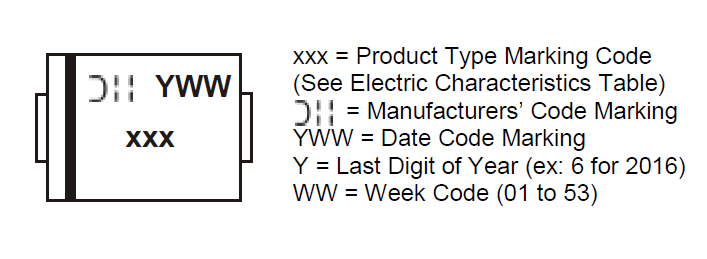

PIN CONFIGUTION
