Single Positive Edge Triggered D Type Flip Flop with Clear and Preset, 74LVC1G74XVS8G P2P SN74LVC1G74.
74LVC1G74XVS8G 74LVC1G74XVS8G.pdf
FEATURES

资料完善中

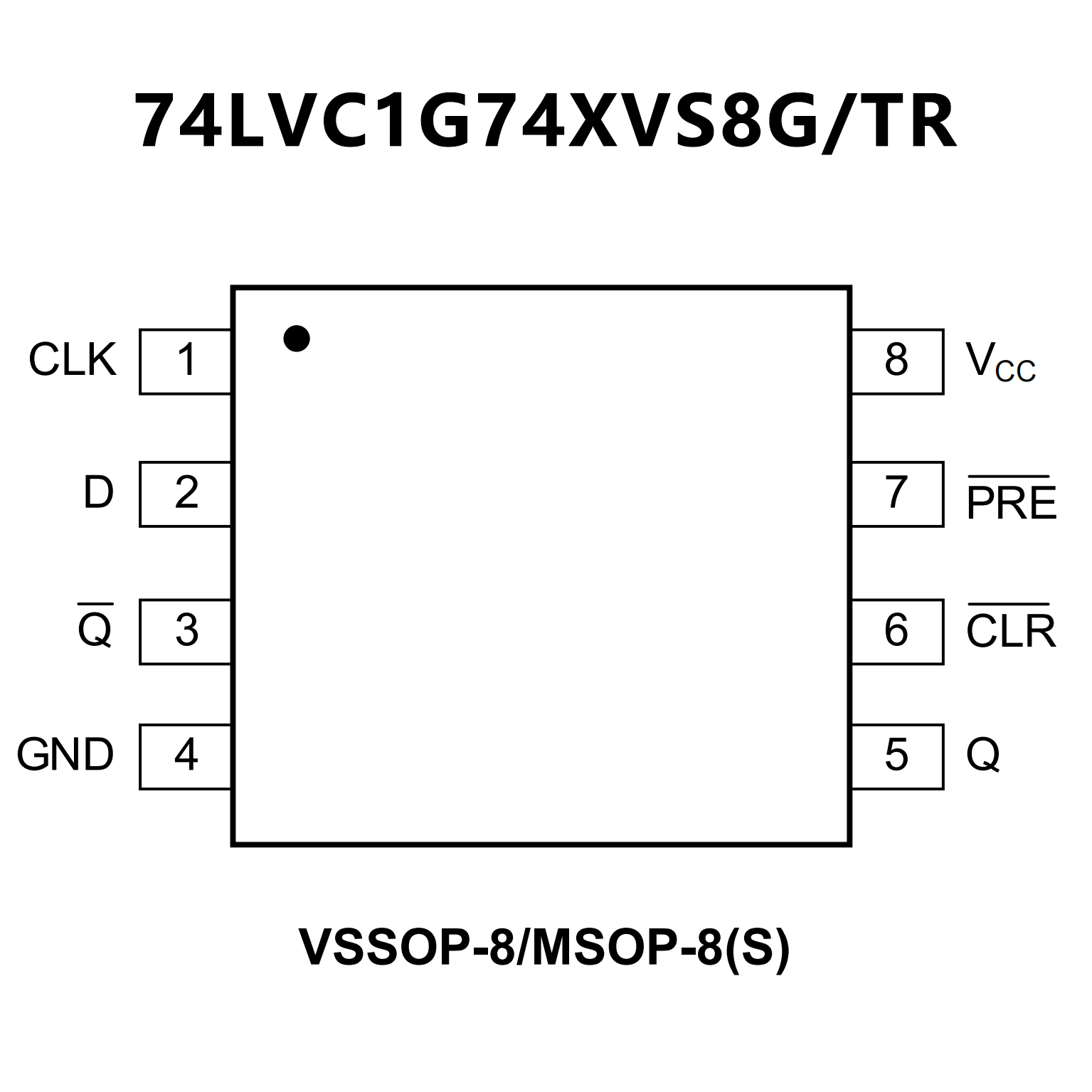

PIN CONFIGUTION
CROSS
SN74LVC1G74 SN74LVC1G74.pdf

No.13677

FEATURES

 Available in the Texas Instruments

  NanoFree™ package

 Supports 5-V VCC operation

 Inputs accept voltages to 5.5-V

 Supports down translation to VCC

 Maximum tpd of 5.9-ns at 3.3-V

 Low power consumption, 10-µA maximum ICC

 ±24-mA output drive at 3.3-V

 Typical VOLP (output ground bounce)

  0.8-V at VCC = 3.3-V, TA = 25°C

 Typical VOHV (output VOH undershoot)

  2-V at VCC = 3.3 V, TA = 25°C

 Ioff supports live insertion, partial-

  power-down mode, and back-drive protection

 Latch-up performance exceeds 100 mA

  per JESD 78, class II

 ESD protection exceeds JESD 22

  2000-V human-body model

  200-V machine model

  1000-V charged-device model

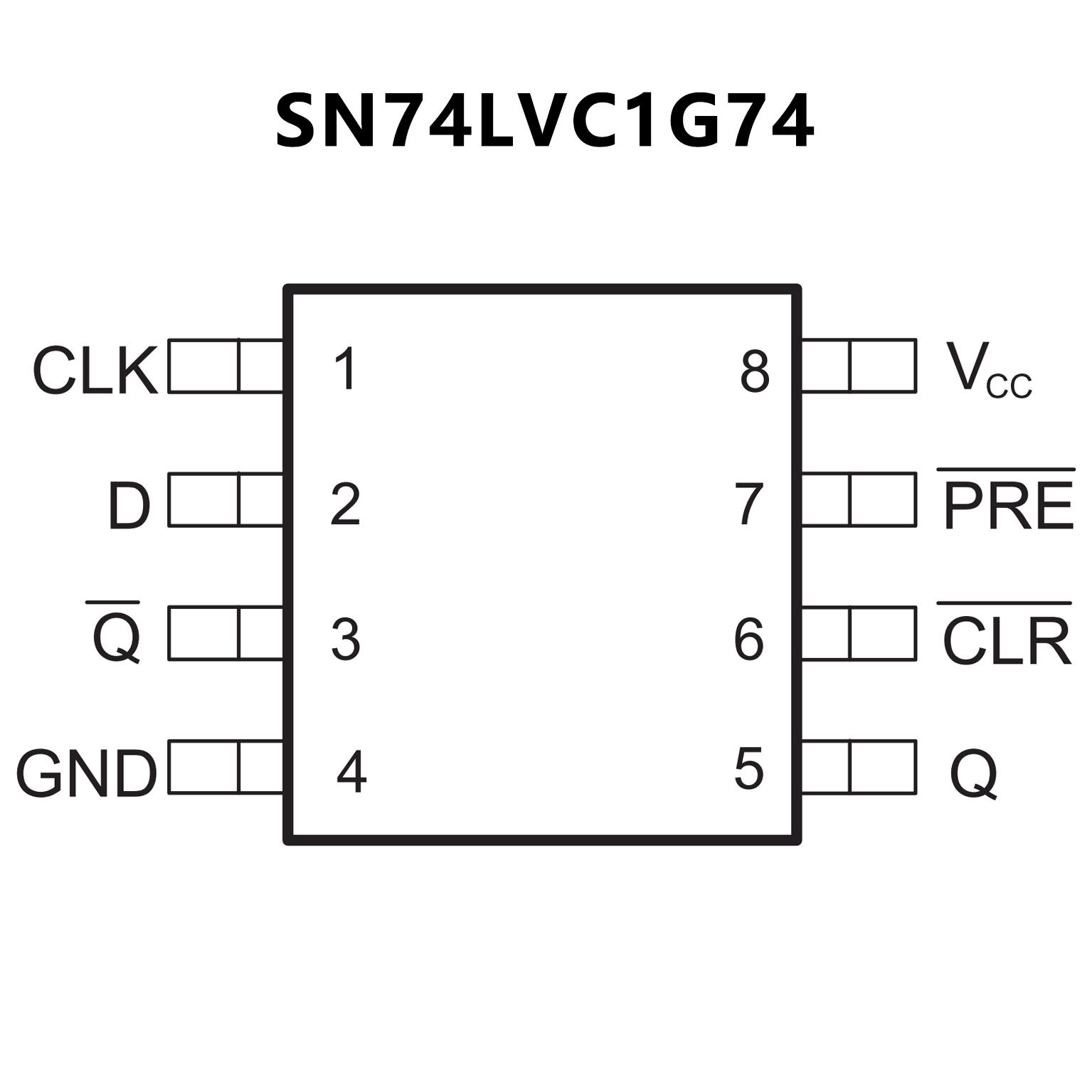

PIN CONFIGUTION
