Dual unbuffered inverter, 74LVC2G04XC6G Replace 74LVC2GU04GW.
74LVC2G04XC6G/TR
74LVC2G04XC6G/TR.pdf
74LVC2G04XC6G/TR.pdfFEATURES
• 1.65V to 5.5V Wide Operating Voltage Range
• Input and Output Interface Capability to 5V
System Environment
• +24mA/-24mA Output Current at VCC = 3.0V
• CMOS Low Power Consumption
• Direct Interface with TTL Levels
• High Noise Immunity
• Latch-up Performance Exceeds 250mA
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-6 and SC70-6 Packages

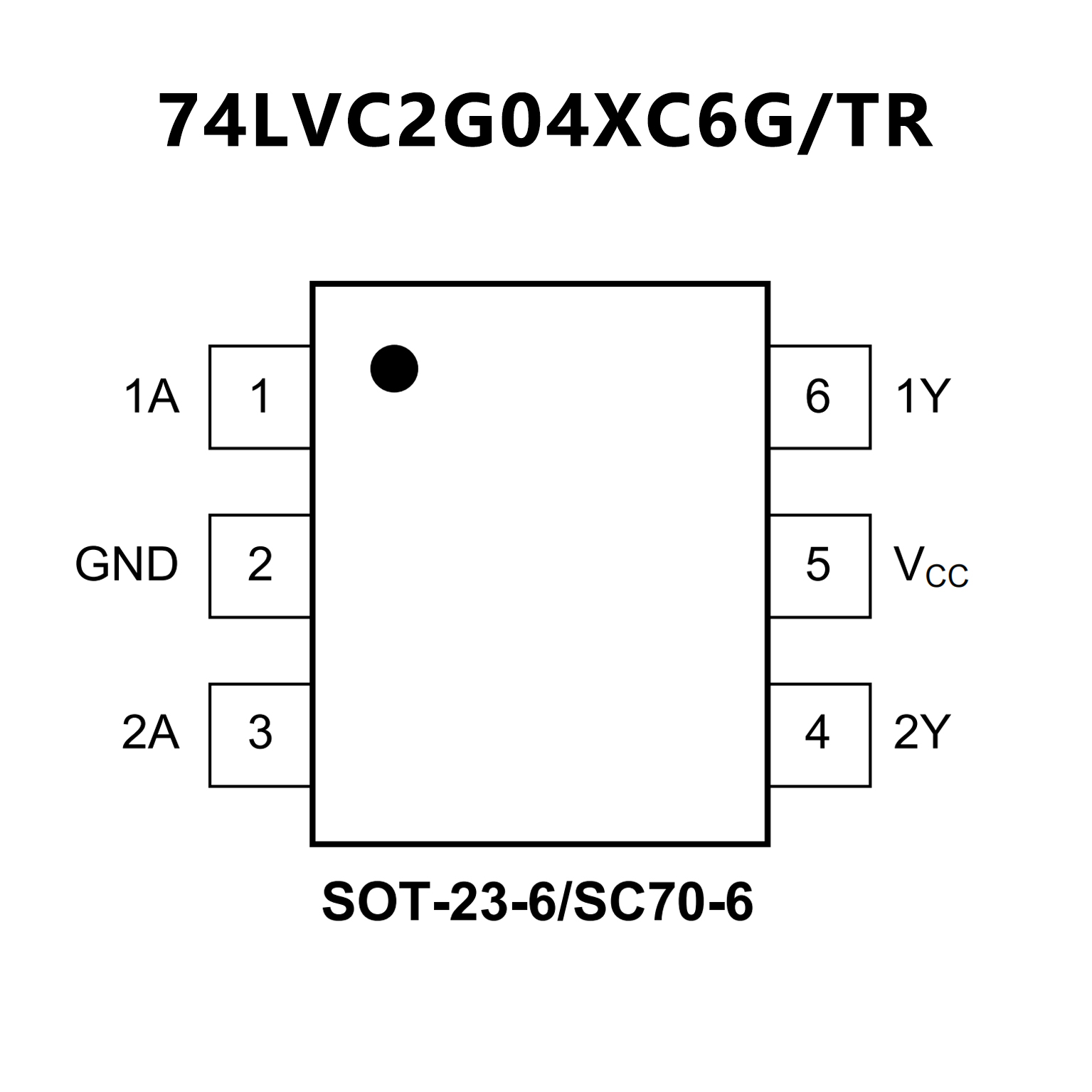

PIN CONFIGUTION
CROSS
FEATURES
• Wide supply voltage range from 1.65V to 5.5V
• Overvoltage tolerant inputs to 5.5V
• High noise immunity
• ±24 mA output drive (VCC = 3.0V)
• CMOS low power dissipation
• Latch-up performance exceeds 250mA
• Complies with JEDEC standard no. 8-1A
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C

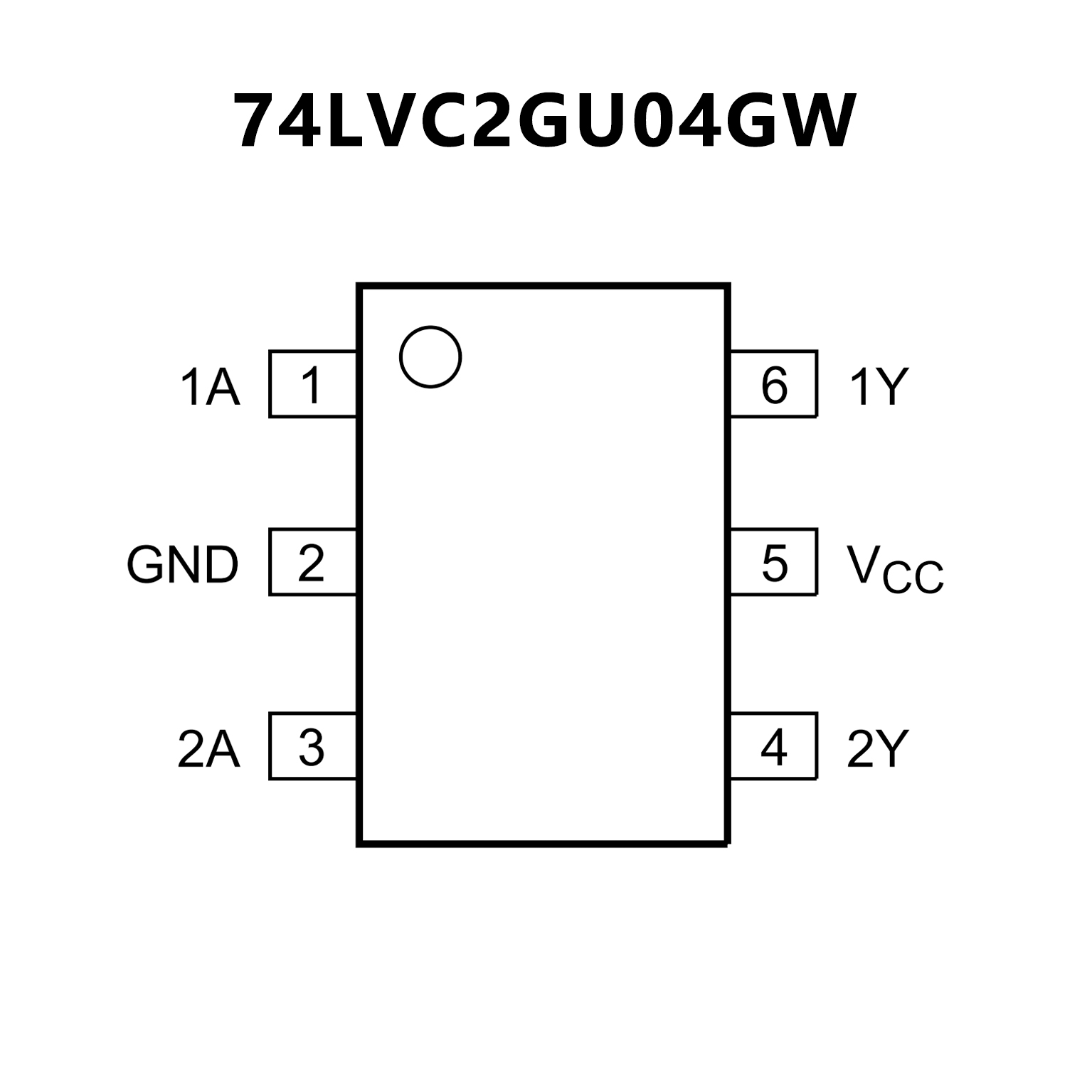

PIN CONFIGUTION
