• VLDOIN Input Voltage Range: 1.1V to 3.5V

• VIN Input Voltage Range: 2.375V to 5.5V

• Typically 3×10μF MLCCs stable for DDR

• Fast Load-Transient Response

• ±10mA Buffered Reference (REFOUT)

• Meet DDR, DDR2 JEDEC Specifications.

  Supports DDR3 and Low-Power DDR3/DDR4

  VTT Applications

• Power-Good Window Comparator

• With Soft Start, UVLO and OCP

• Thermal Shutdown

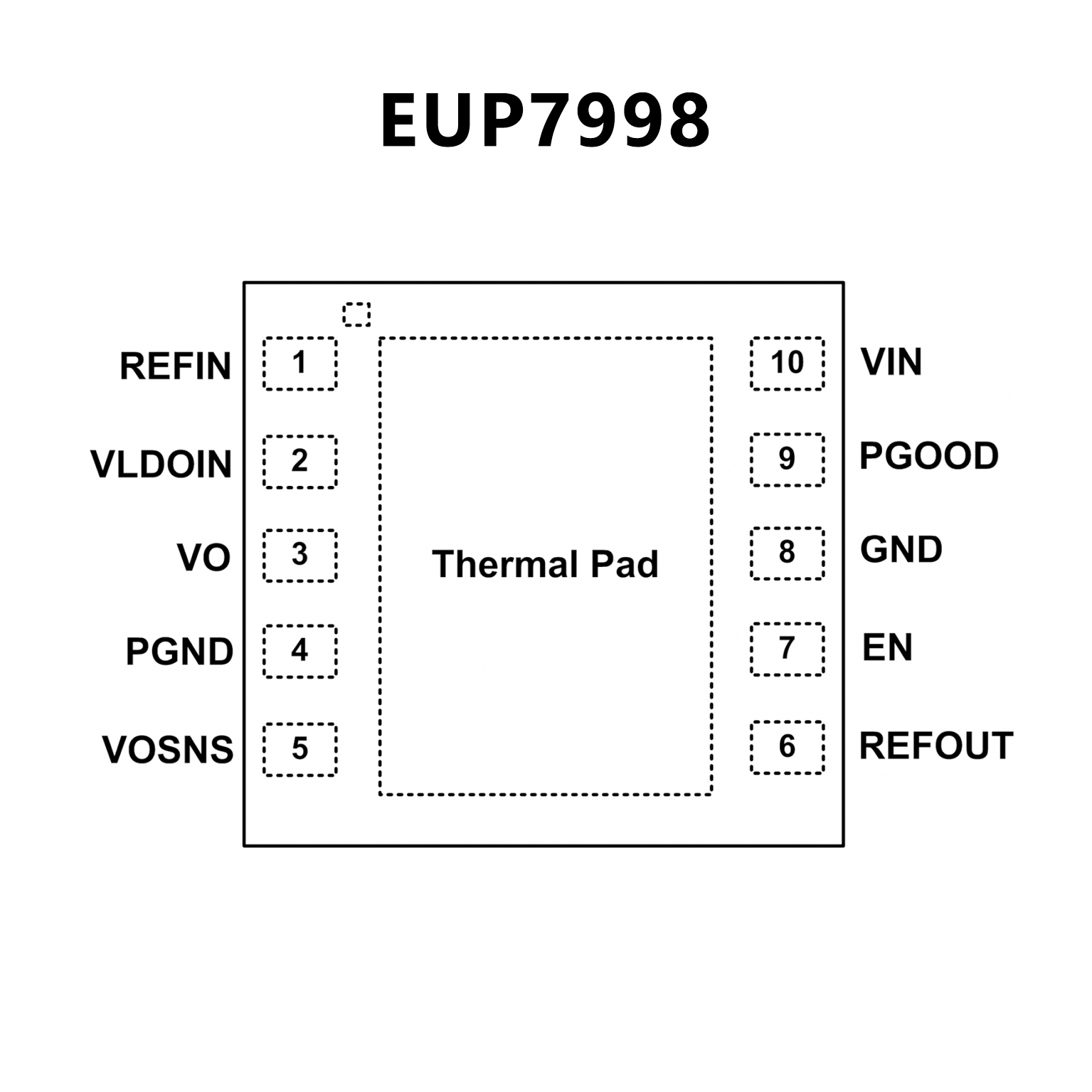

• Available in 10-Pin 3mm×3mm TDFN and

  SOP-8 (EP) packages

• RoHS Compliant and 100% Lead(Pb)-Free

  Halogen-Free
