4-Bits Bi-directional Level Translator Auto Direction 110Nbps PUSH-PULL Applications, LXB0104 Replace TXB0104.
LXB0104
LXB0104.pdf
LXB0104.pdfFEATURES
• Bi-Directional Voltage Translation for Push-Pull
Applications
• Specified from -40°C to +125°C
• VCCA for A Port: 1.2V to 3.6V
• VCCB for B Port: 1.65V to 5.5V
• Up & Down Translation Data Rate
▪ ≤ 110Mbps, CL = 15pF, 3.3V to 5.0V Translation
▪ ≤ 60Mbps, CL = 15pF, 1.8V to 3.3V Translation
▪ ≤ 30Mbps, CL = 15pF, 1.2V to 1.8V Translation
• IOFF Circuitry Provides Partial-Power-Down Mode
Operation
• OE Pin Supports High-Impedance Exists Between Ports
• ESD Protection Exceeds JESD 22
▪ 7000V HBM (B Port), 3000V HBM (A Port)
▪ 1500V CDM (C101)
• Latchup Exceeds 100mA per JESD 17
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

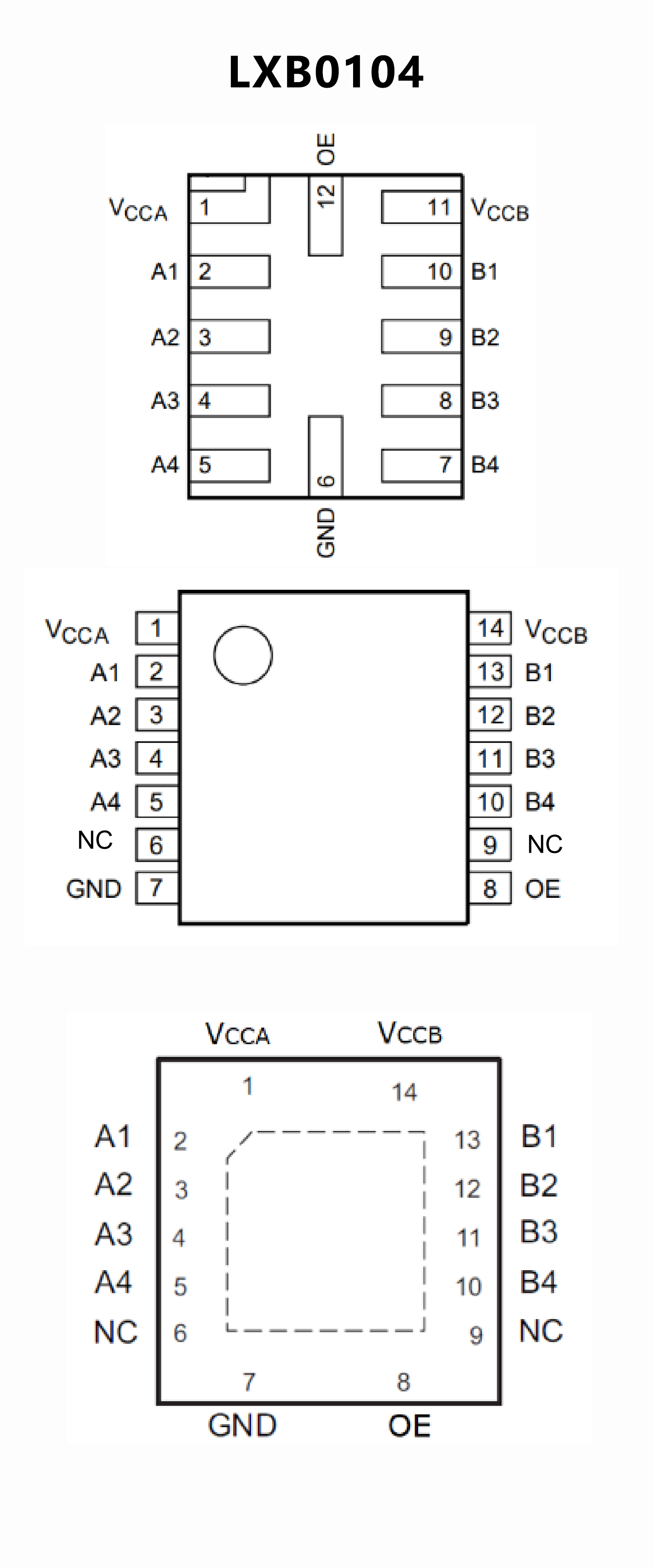

PIN CONFIGUTION
CROSS
FEATURES
• 1.2-V to 3.6-V on A port and 1.65-V to 5.5-V
on B port (VCCA ≤ VCCB)
• VCC isolation feature: if either VCC input ss at GND,
all outputs are in the high-impedance state
• Output enable (OE) input circuit referenced to VCCA
• Low power consumption, 5-μA maximum ICC
• I OFF supports partial power-down mode operation
• Latch-up Performance Exceeds 100 mA Per JESD
78, Class II
• ESD Protection Exceeds JESD 22
A Port:
• 2500-V Human-Body Model (A114-B)
• 1500-V Charged-Device Model (C101)
B Port:
• ±15-kV Human-Body Model (A114-B)
• 1500-V Charged-Device Model (C101)

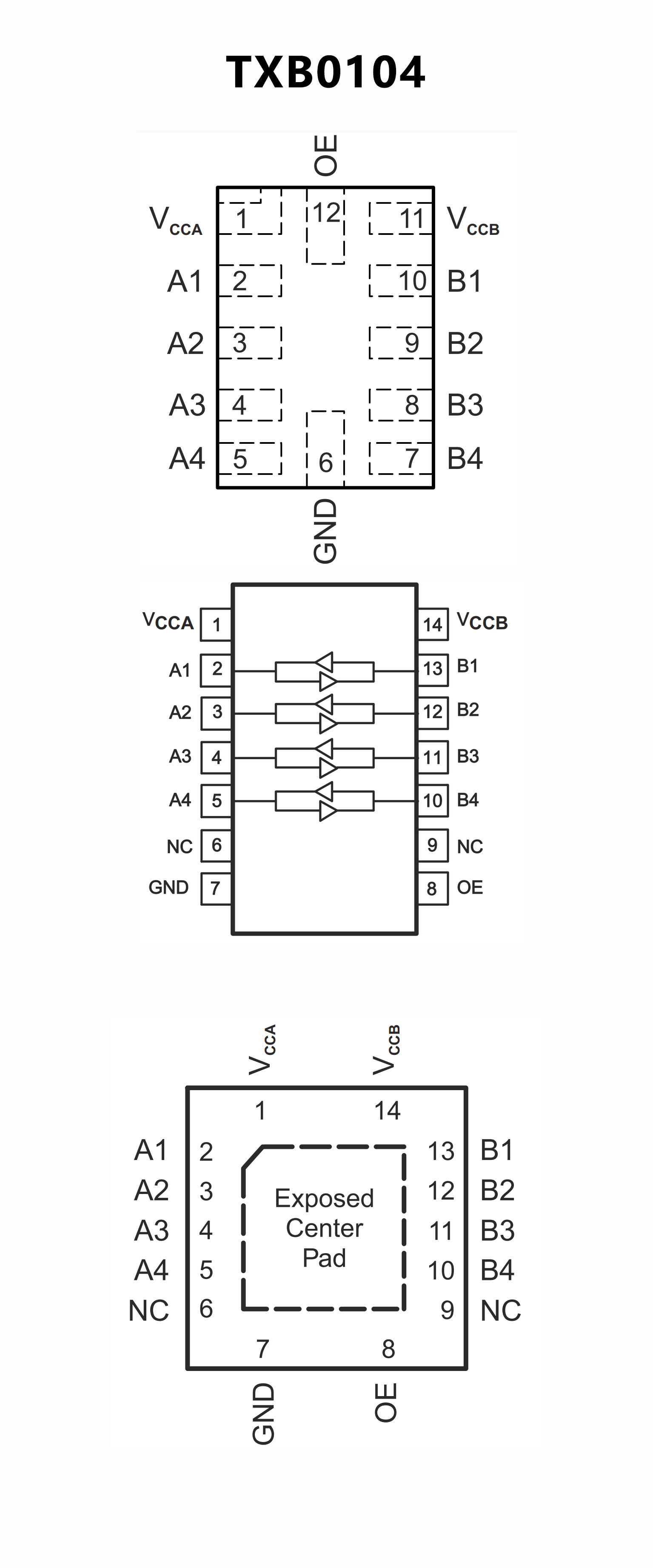

PIN CONFIGUTION
