4-Channel 2:1 Mux/DeMux, Enable Low 1.8V/2.5V/3.3V, High-Bandwidth, Hot Plug, PI3CH480 P2P SN74CB3Q3257.
PI3CH480 PI3CH480.pdf
FEATURES

• Near-Zero Propagation Delay

• 50 Switches Connect Inputs to Outputs

• High Signal Passing Bandwidth (50oMHz)

• Beyond Rail-to-Rail Switching

  - 0 to 5V Switching with 3.3V Power Supply

  - 0 to 3.3V Switching with 2.5V Power Supply

• 5V I/O Tolerant with Supply in OFF and ON State

• 1.8V,2.5V, and 3.3V Supply Voltage Operation

• Hot Insertion Capable

• Industrial Operating Temperature: -40C to +85°C

• 8kV ESD Protection (Human Body Model)

• Latch-up Performance: >20OmA per JESD17

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Packaging (Pb-free & Green available):

  -16-pin 173-mil Wide Plastic TSSOP (L)

  -16-pin 150-mil Wide Plastic QSOP (Q)

  -16-pin UQFN3x3-16(ZHD)










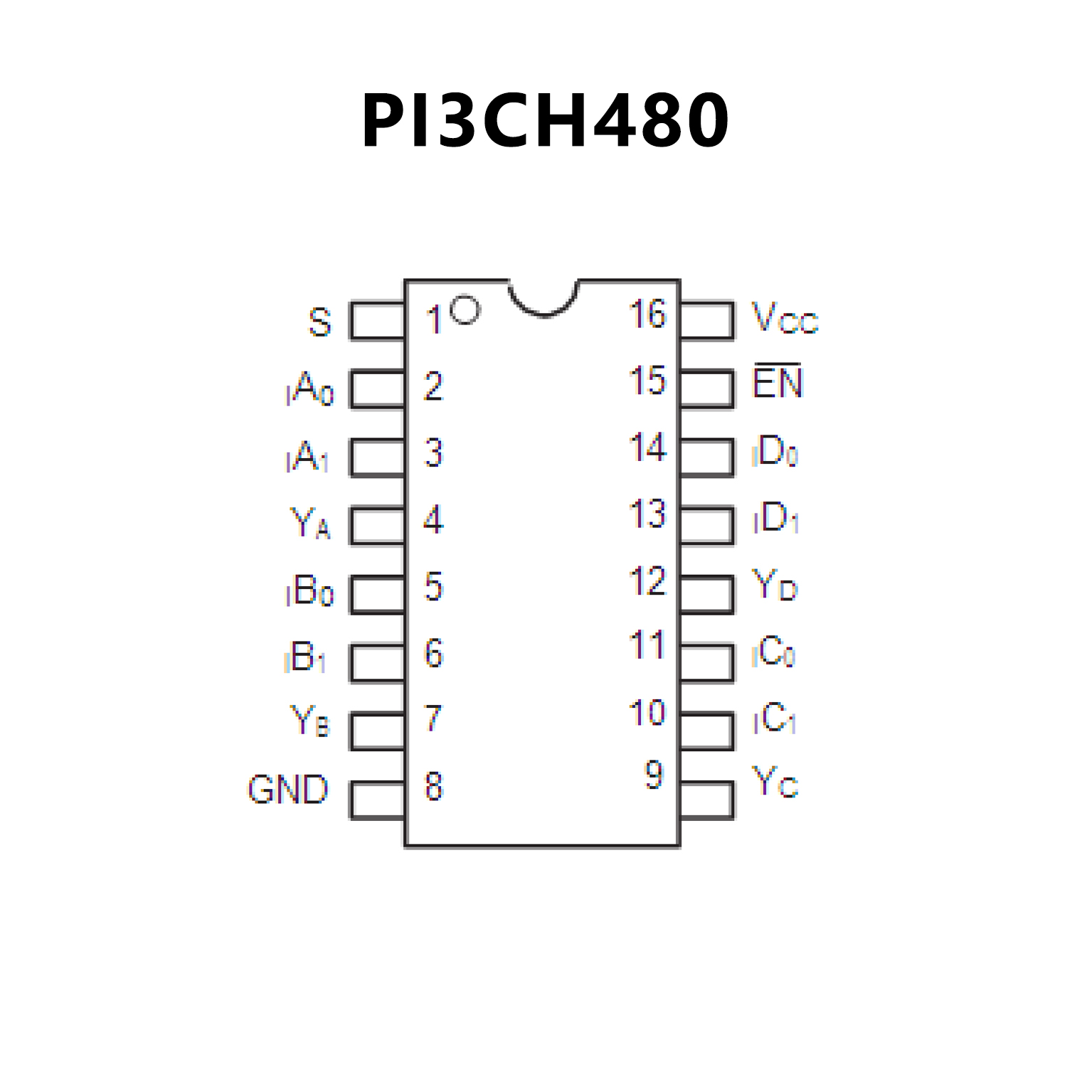

PIN CONFIGUTION
CROSS
SN74CB3Q3257 SN74CB3Q3257.pdf

No.14289

FEATURES

• High-bandwidth data path (up to 500MHz)

• 5V Tolerant I/Os with device powered up or powered

  down

• Low and flat on-state resistance (ron)
  characteristics over operating range (ron= 4Ω typical)
• Rail-to-rail switching on data I/O ports
  – 0- to 5V Switching with 3.3V VCC
  – 0- to 3.3V Switching with 2.5V VCC
• Bidirectional data flow with near-zero propagation delay
• Low input and output capacitance minimizes
  loading and signal distortion (Cio(OFF) = 3.5pF typical)
• Fast switching frequency (f OE = 20MHz maximum)
• Data and control inputs provide undershoot clamp diodes
• Low power consumption (ICC = 0.7mA typical)
• VCC Operating range from 2.3V to 3.6V
• Data I/Os support 0- to 5V signaling levels (0.8V,
  1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V)
• Control inputs can be driven by TTL or 5V and
  3.3V CMOS outputs
• Ioff Supports partial-power-down mode operation
• Latch-up performance exceeds 100mA Per JESD 78, class II
• ESD Performance tested per JESD 22
  – 2000V Human body model (A114-B, class II)
  – 1000V Charged-device model (C101)
• Supports both digital and analog applications: USB
  interface, differential signal interface, bus isolation,
  low-distortion signal gating

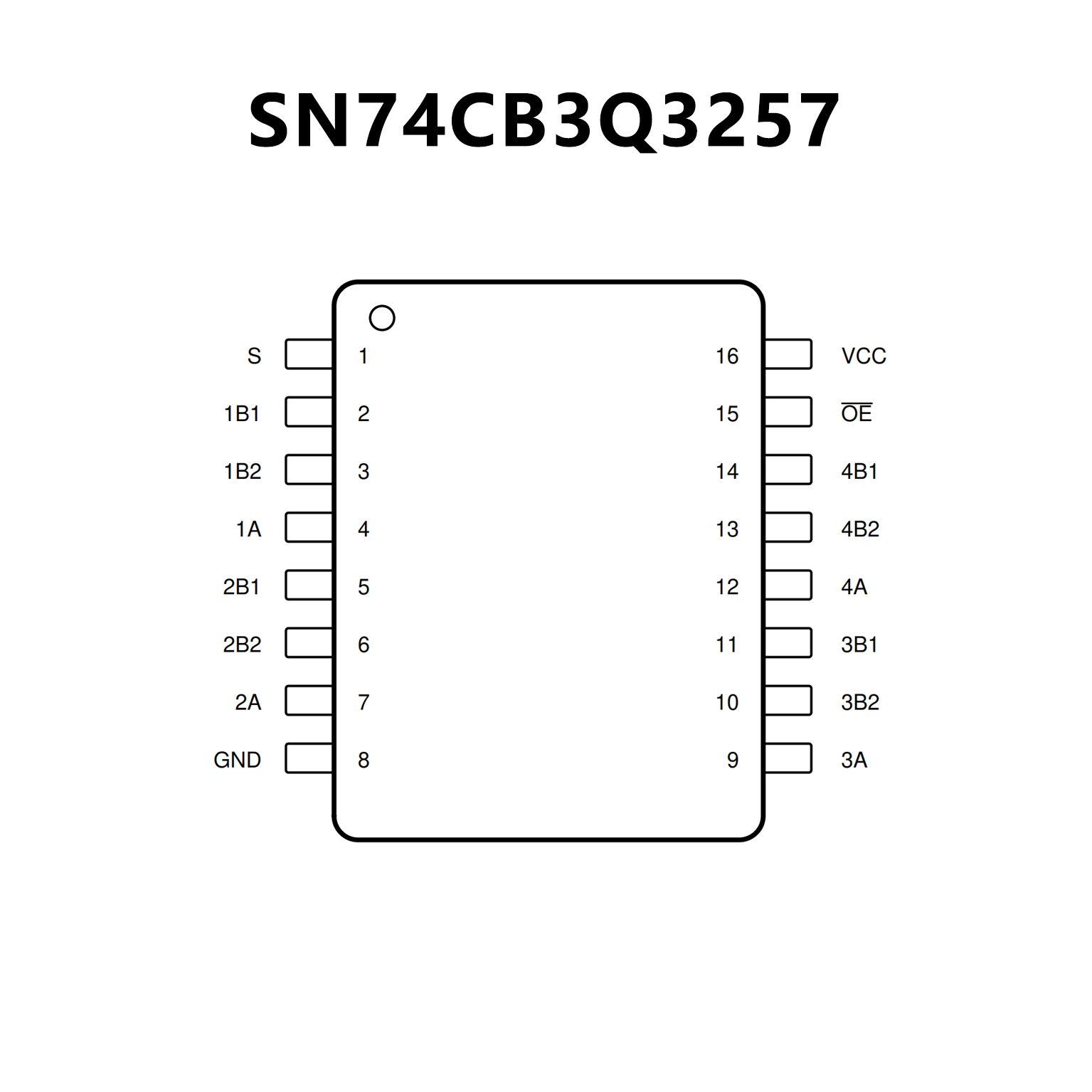

PIN CONFIGUTION
