2-Channel, 1:3, USB 2.0 and MHL MUX/DeMUX, PI3USB3031 Replace TS3USB3031.
PI3USB3031 PI3USB3031.pdf
FEATURES

 Wide VCC Range: 1.8V to 5.5V

 Mobile High-Definition Link (MHL) or Mobility Display
  Port (MyDP) Switch:
  Bandwidth (-3dB): 6.5GHz
  RON (Typical): 5.5Ω
  CON (Typical): 1.3pF
 USB Switches (2 Sets):
  Bandwidth (-3dB): 6.5GHz
  RON (Typical): 4.5Ω
  CON (Typical): 1pF
 Current Consumption: 28 µA (Typical)
 IOFF Protection Prevents Current Leakage in Powered
  -Down State (VCC = 0V)
 1.8V Compatible Control Inputs (SEL)
 Overvoltage Tolerance (OVT) on All I/O Pins Up to 5V
  Without External Components
 ESD Protection : 2kV(HBM), 1kV(CDM)
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 For automotive applications requiring specific change control
 Packaging (Pb-free & Green):
  12-Pin, 1.8mm x 1.8mm, 0.4mm pitch (WQFN)
  12-Pin, 1.6mm x 1.6mm, 0.4mm pitch (X2-QFN)

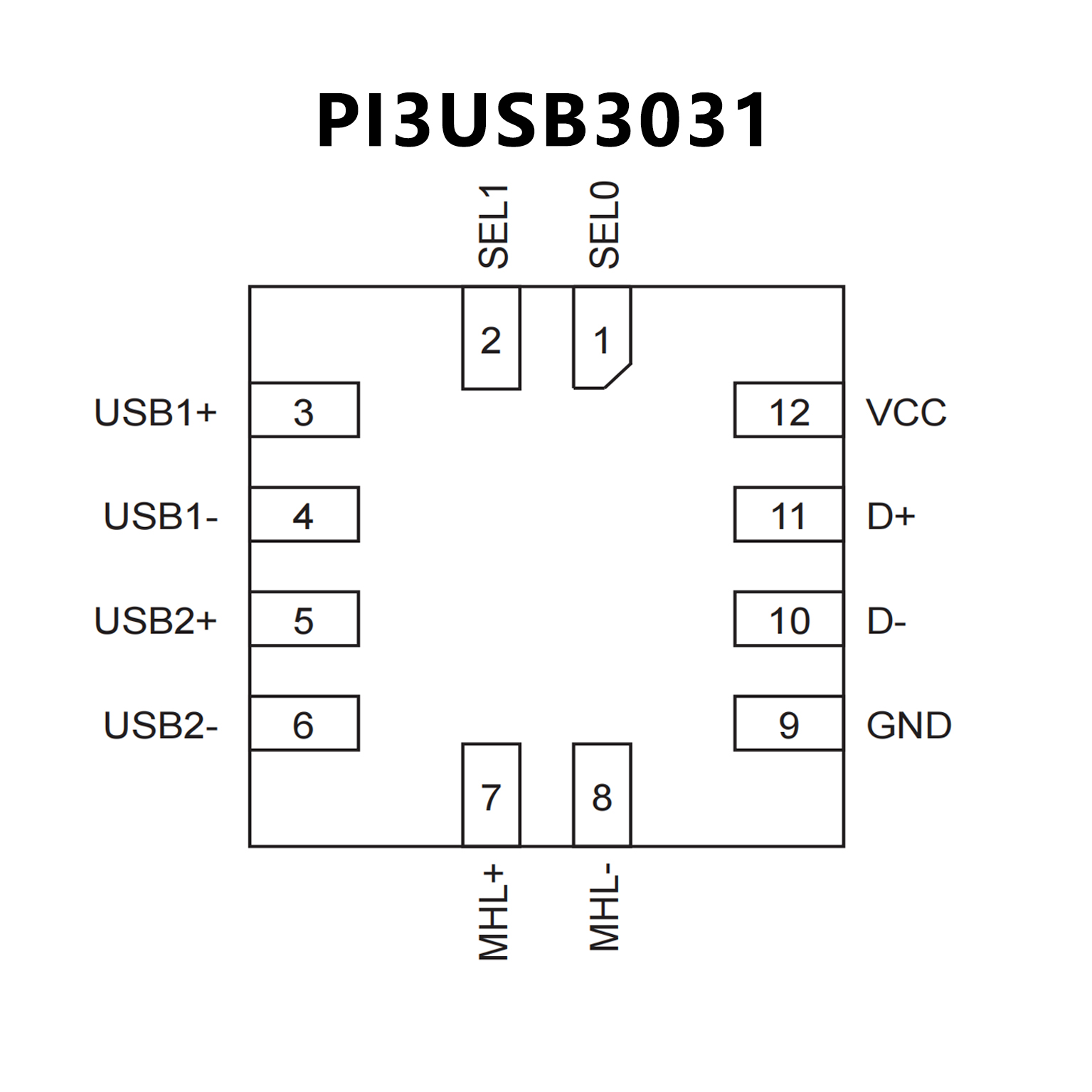

PIN CONFIGUTION
CROSS
TS3USB3031 TS3USB3031.pdf

No.14323

FEATURES

• VCC range: 2.5V to 4.3V

• Mobile high-definition link (MHL) or mobility display
  port (MyDP) switch:
  – Bandwidth (–3dB): 6.5GHz
  – RON (typical): 5.5Ω
  – CON (typical): 1.3pF
• USB switches (2 sets):
  – Bandwidth (–3dB): 6.5GHz
  – RON (typical): 4.5Ω
  – CON (typical): 1pF
• Current consumption: 28µA (typical)
• Special features:
  – IOFF protection prevents current leakage in
    powered-down state (VCC = 0V)
  – 1.8V compatible control inputs (SEL)
  – Overvoltage tolerance (OVT) on all I/O pins up
     to 5.5V without external components
• ESD performance:
  – 2kV human-body model (A114B, class II)
  – 1kV charged-device model (C101)
• Package:
  – 12-pin VQFN package (1.8mm × 1.8mm,0.4mm pitch)

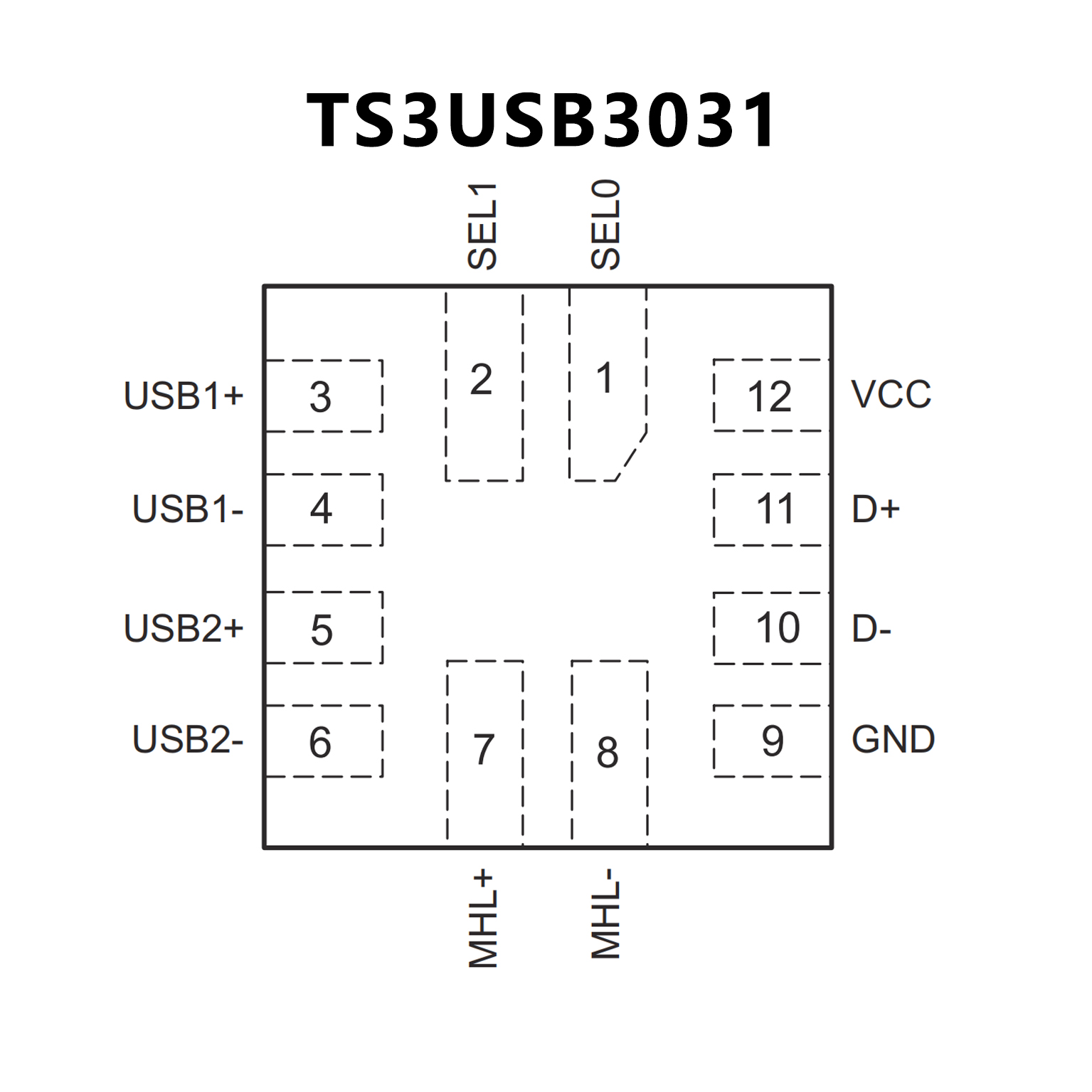

PIN CONFIGUTION
