USB2.0 High-Speed (480Mbps) Signal Switch With Vbus Short Protection, PI3USB42 Replace TS3USB30.
FEATURES

• USB 2.0 compliant (high speed and full speed)

• Ron is 4.0Ω typical @ Vpp = 3.0V

• Low bit-to-bit skew

• Low Crosstalk:-41dB @ 240 MHz

• Off Isolation:-37dB @ 240 MHz

• Wide -3db bandwidth: 770MHz

• Near-Zero propagation delay: 250ps

• Support for 1.8V/2.5V/3.3V Logic on Control pins

• Channel On Capacitance: 6.0pF

• VDD Operating Range: 1.8V to 4.5V

• Data pin I/O ESD: >8kV HBM protection per JESD22-

  Al14D specification

• I/O pins have over-voltage protection and can tolerate a

  shortto Vbus

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Gren” Device (Note 3)

• For automotive applications requiring specific change

  control

• Packaging (Pb-free & Green): 10-pin UQFN (ZM10)

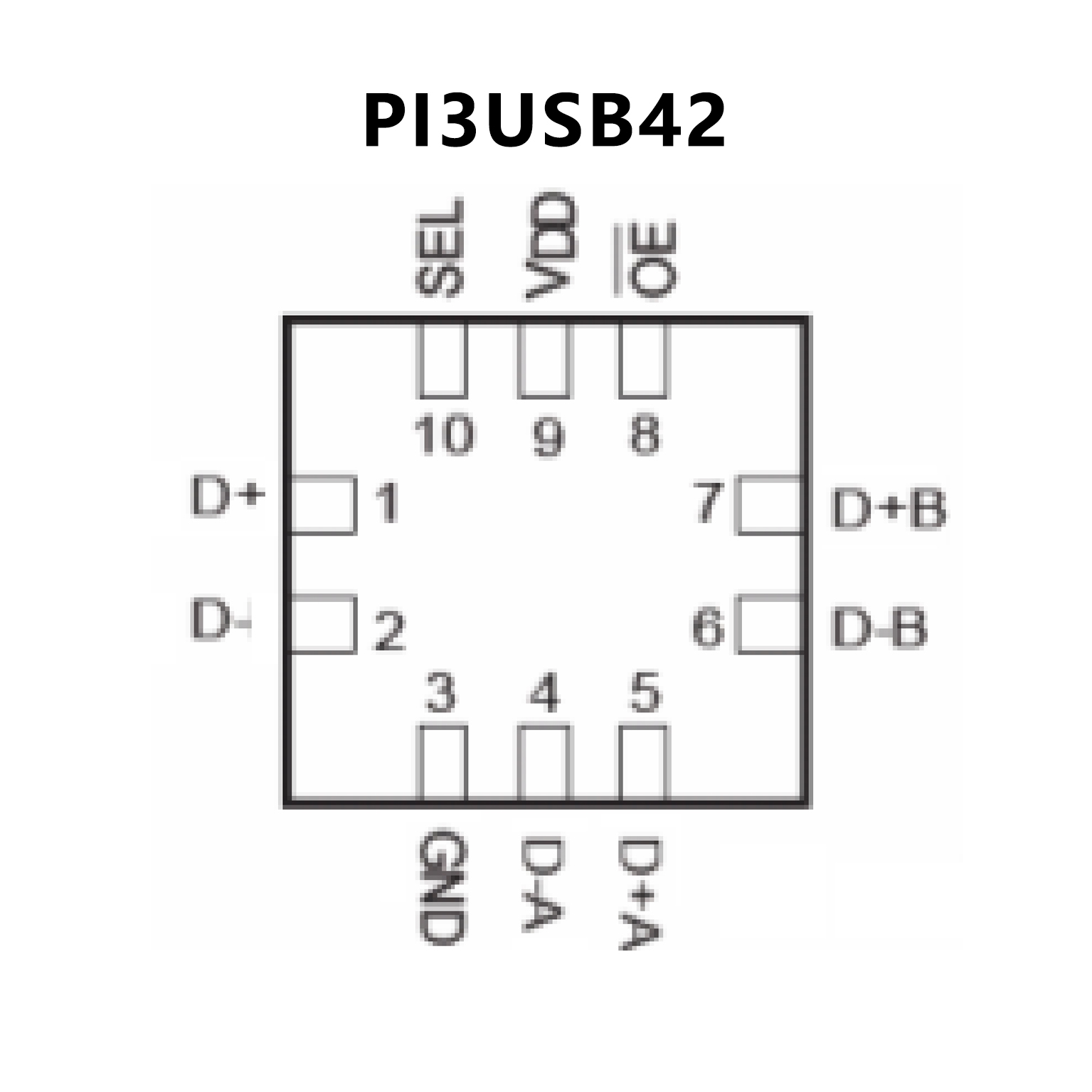

PIN CONFIGUTION
CROSS
TS3USB30 TS3USB30.pdf

No.14286

FEATURES

• VCC Operation at 3 V and 4.3 V

• 1.8-V Compatible Control-Pin Inputs

• IOFF Supports Partial Power-Down-Mode Operation

• Ron = 10 Ω Maximum

  ΔRon <0.35 Ω Typical

• Cio(ON) = 7 pF Typical

• Low Power Consumption (1 μA Maximum)

• ESD Performance Tested Per JESD 22

  6000-V Human Body Model (HBM)

  (A114-B, Class II)

  1000-V Charged-Device Model (C101)

  250-V Machine Model (A115-A)

• –3-dB Bandwidth = 955 MHz Typical

• Packaged in 10-pin UQFN (1.4 mm × 1.8 mm)

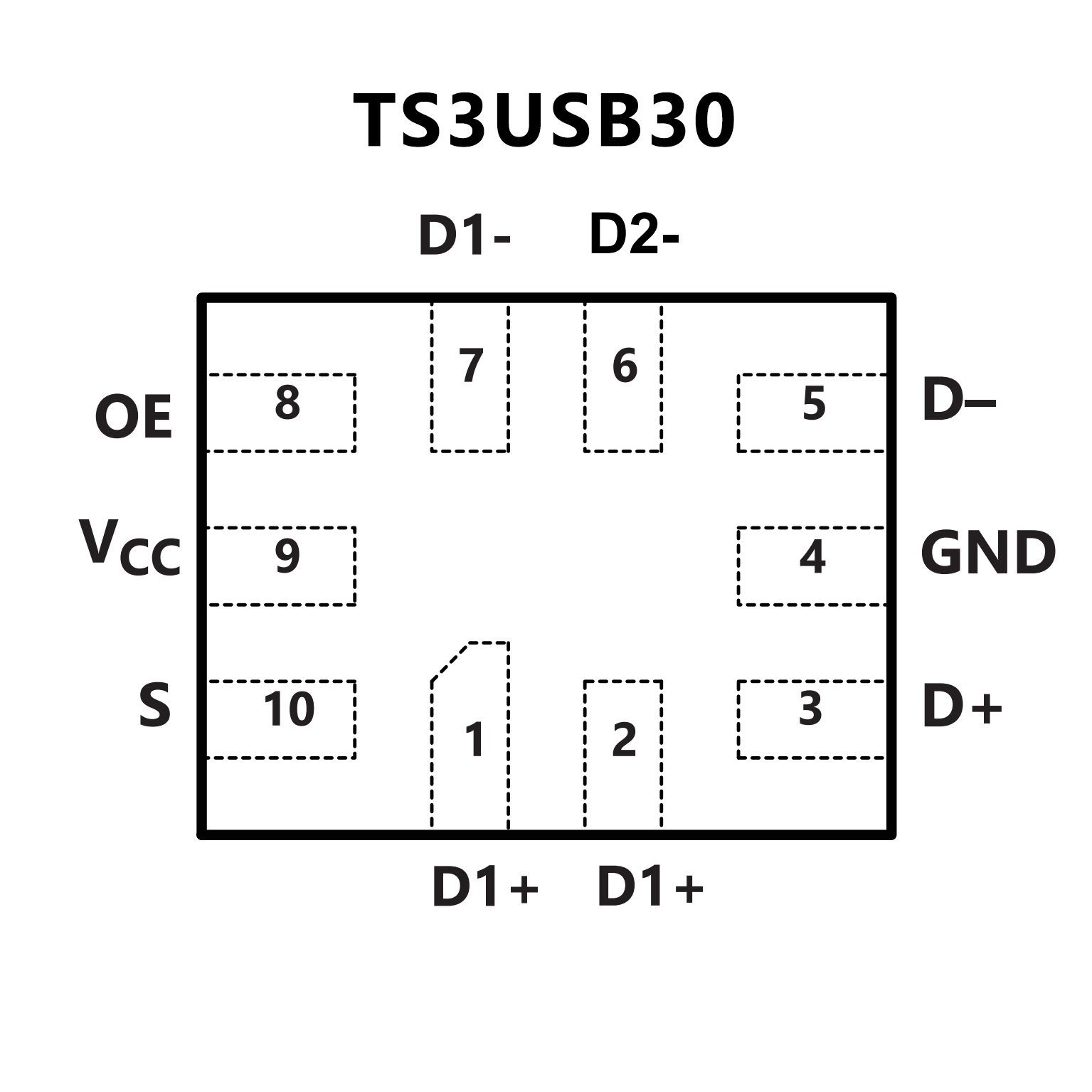

PIN CONFIGUTION
