• Operatingpower supply voltage range of0.V to 3.6V on

  the I2C bus side

• Allows bidirectional voltage-level translation and GPIO

  expansion between:

  0.8V to 3.6V SCL/SDA and 1.8/2.5/3.3/5.5V Port

•  Low standby current consumption:

  2uA typical at 3.3V Voop)

 •  5.5V tolerant I/O ports and 3.6V tolerant PC-bus pins

•  1MHz Fast-mode Plus FC-bus interface

•  Compliant with the PC-bus Fast-mode plus, Fast-mode

  and Standard mode

•  I/O Features

  Output port configuration: bank selectable or pin

  sekctable push-pull or open-drain output stages

  Interrupt status: read-only register identifies the

  source of an interrupt

•  I/O programming features:

  Output drive strength: four programmable drive strengths

  to reduce rise and falltimes in low-capacitance applications

  Input latch:InputPort registervalues changesarekept

  until the Input Port registeris read

  Pull-up/pu-downenable:oating inputorpull-up/pull-down

  resistor enable

  Pull-up/pull-down selection: 100 kohm pull-up/pull-down

  resistor selection

  Interrupt mask:mask prevents the generation of the

  interrupt when input changes state to prevent spurious

  interrupts

  Interrupt edge specificationonabit-by-bit basis

  Interrupt individual clear without disturbing other events

  Read all interrupt events without clear

  Switch debounce hardware

  General call software reset

  PC software Device ID function

•  Power-on reset

• Active LOW open-drain interrupt output (INT)

• Active LOW reset input(RESET)

• Latch-up tested (exceeds 100mA)

• Latched Outputs for Directly Driving LEDs

• Totally Lead-Free & Fully RoHS Compliant (Notes 1&2)

• Halogen and Antimony Free."Green" Device (Note 3)

• For automotive applictionsrequiringspecicchangecontrole.

  parts qualified to AEC-Q100/i01104200,PPAP capable, and

  manufactured inIATF16949 certified facilities), pleasecontact

  us or your local Diodes representative.

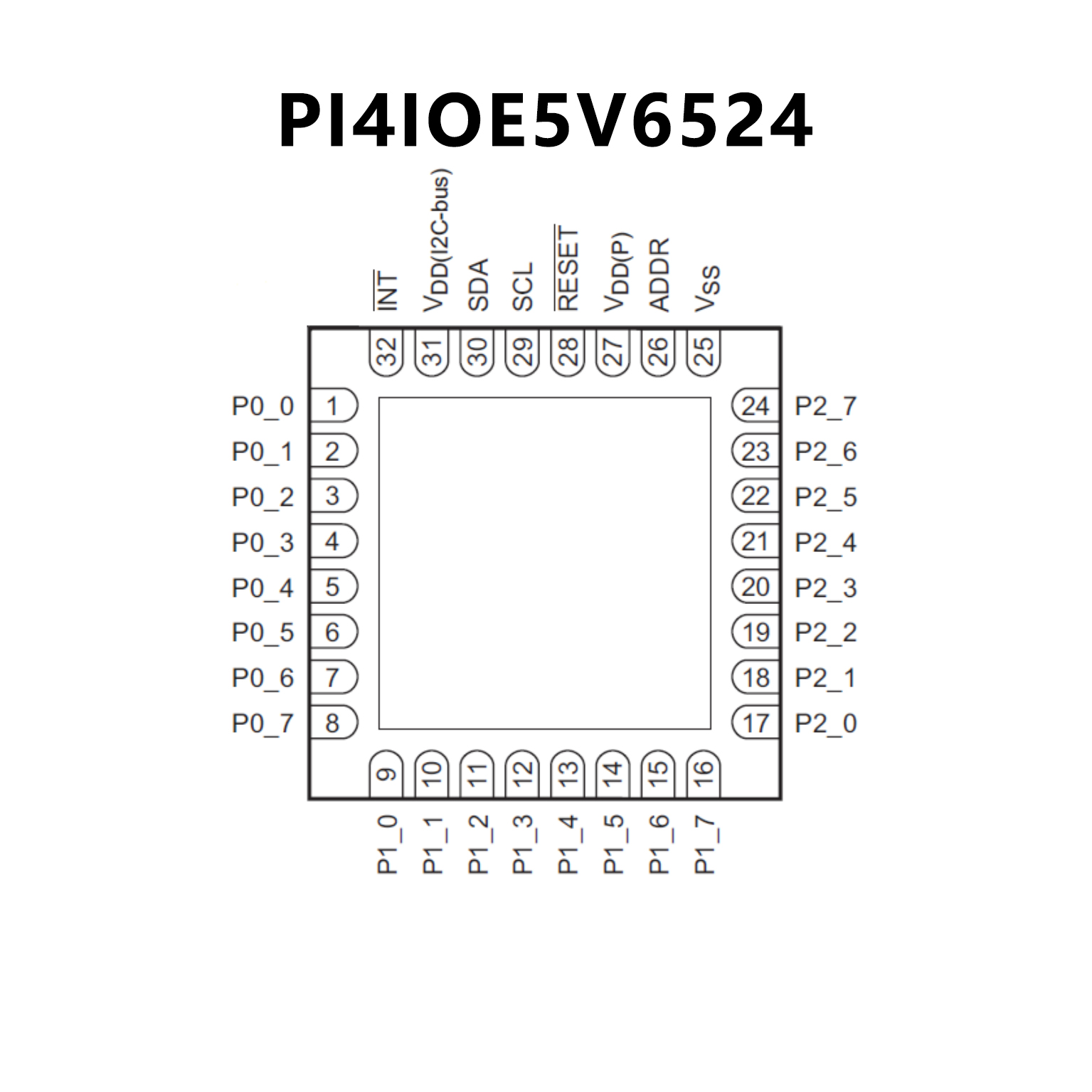

•  Packaging (Pb-free & Green): 32-Pin TQFN 5x5mm
