30W Fully Integrated Synchronous Boost Converter with Load Disconnection Control, P2P TPS61088.
SCT12A1
SCT12A1.pdf
SCT12A1.pdfFEATURES
• Wide Input Voltage Range: 2.7V-14.0V
• Wide Output Voltage Range: 4.5V-14.6V
• Fully Integrated 13mΩ High Side FET and
11mΩ Low Side FET
• Up to 92% Efficiency at Vin=3.6V, Vout=9V, and
Iout=3A
• Up to 12A Switch Current and Programmable
Peak Current Limit
• Load Disconnection Control with an External P
Channel MOSFET
• Typical Shut-down Current: 1uA
• Programmable Switching Frequency: 200kHz-
2.2MHz
• Selectable PFM or Forced PWM Mode
• Programmable Soft Start
• Output and Feedback Overvoltage Protection
• Thermal Shutdown Protection: 150°C
• Available in DFN-20 3.5mmx4.5mm Package

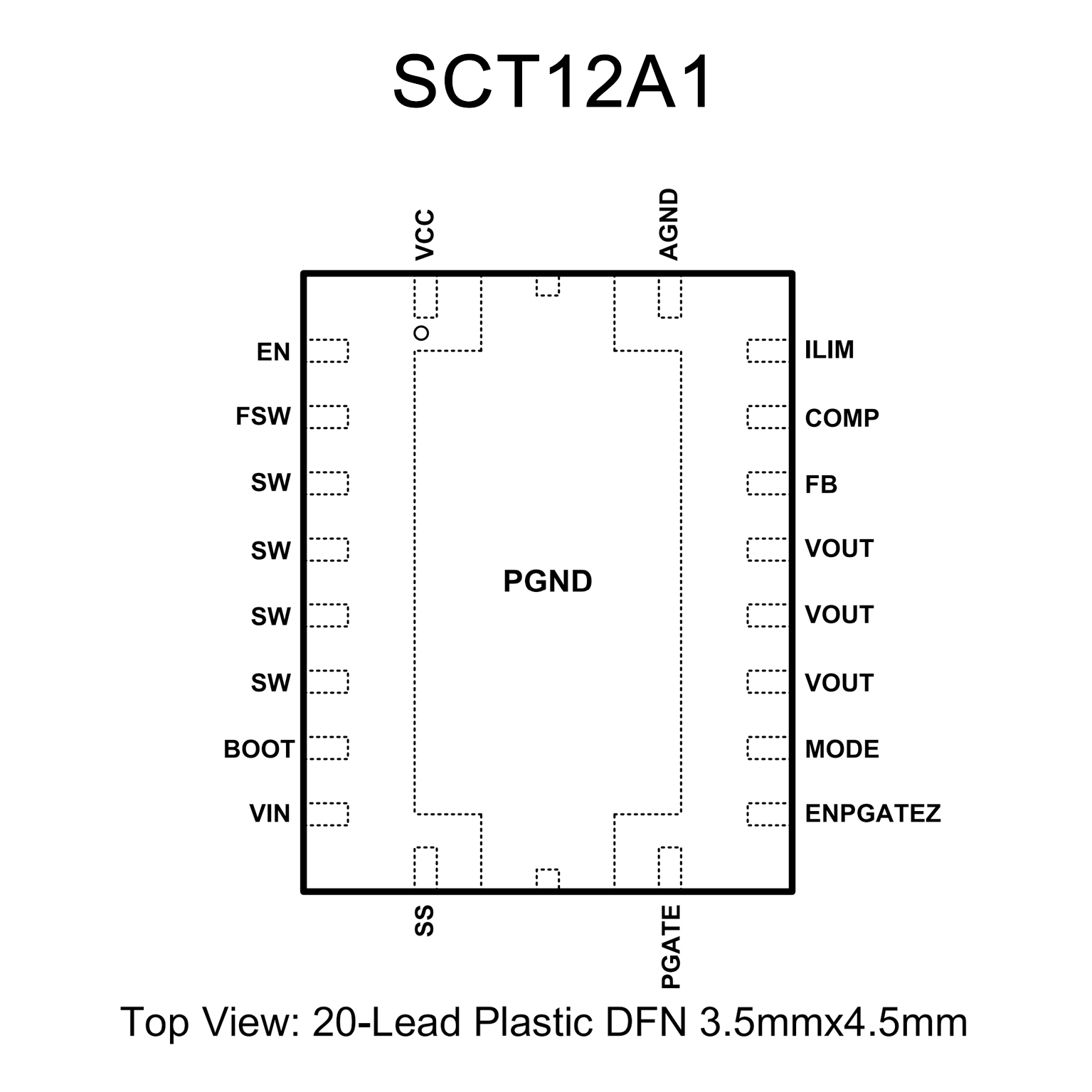

PIN CONFIGUTION
CROSS
FEATURES
• Input Voltage Range: 2.7 to 12 V
• Output Voltage Range: 4.5 to 12.6 V
• 10-A Switch Current
• Up to 91% Efficiency at VIN = 3.3 V, VOUT = 9 V,
and IOUT = 3 A
• Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
• 1.0 µA Current into VIN Pin during Shutdown
• Resistor-Programmable Switch Peak Current Limit
• Adjustable Switching Frequency: 200 kHz to 2.2
MHz
• Programmable Soft Start
• Output Overvoltage Protection at 13.2 V
• Cycle-by-Cycle Overcurrent Protection
• Thermal Shutdown
• 4.50-mm × 3.50-mm 20-Pin VQFN Package
• Create a Custom Design Using the TPS61088
with the WEBENCH Power Designer

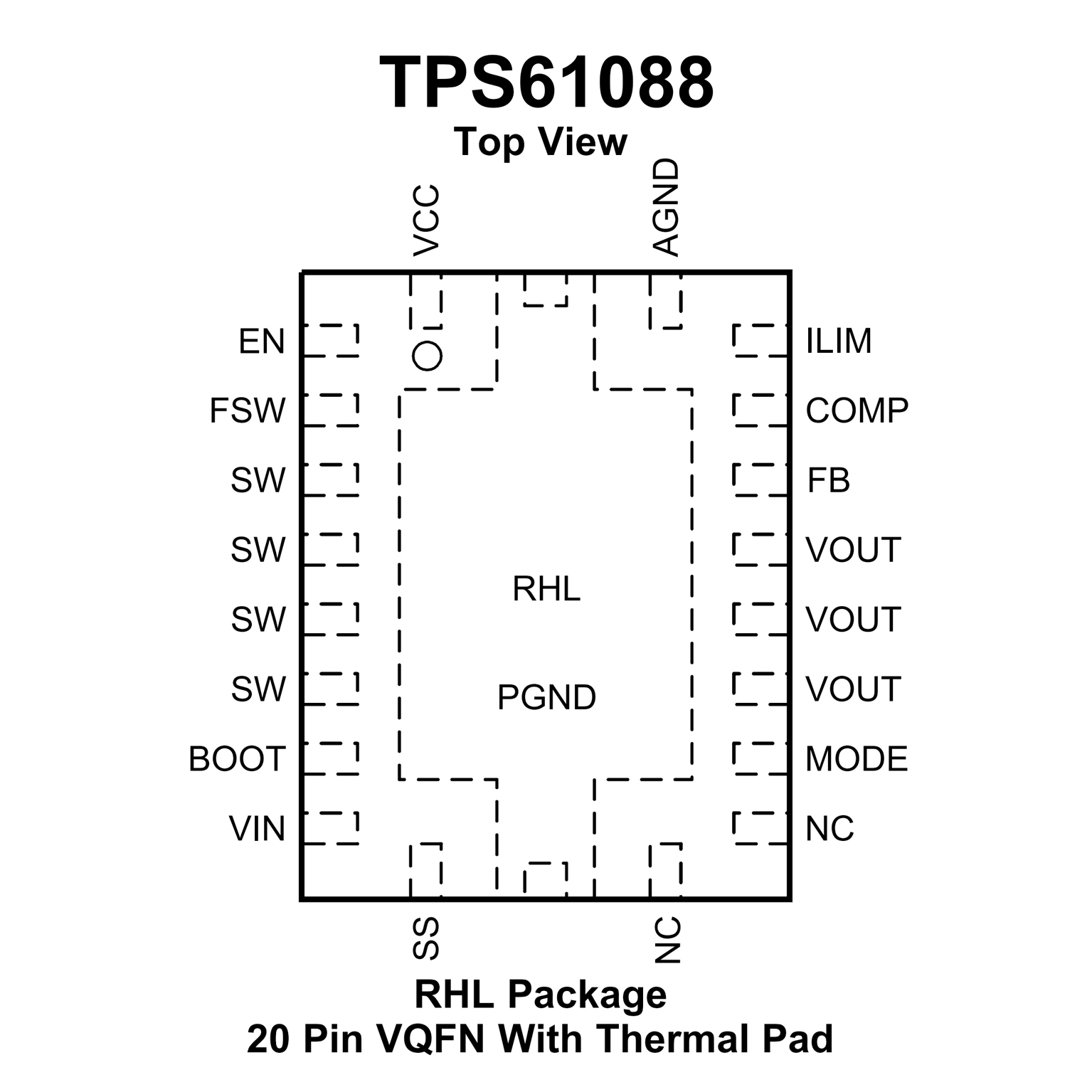

PIN CONFIGUTION
