Up to 24V Supply, 4A Dual Channel High Speed Low Side Driver, SCT52240Q Replace UCC27524A-Q1.
FEATURES

• Qualified for Automotive Applications

• AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
    Ambient Operating Temperature Range
  - Device HBM ESD Classification Level H2
  - Device CDM ESD Classification Level C3B
• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
  Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C

• Available in SOP-8 Package




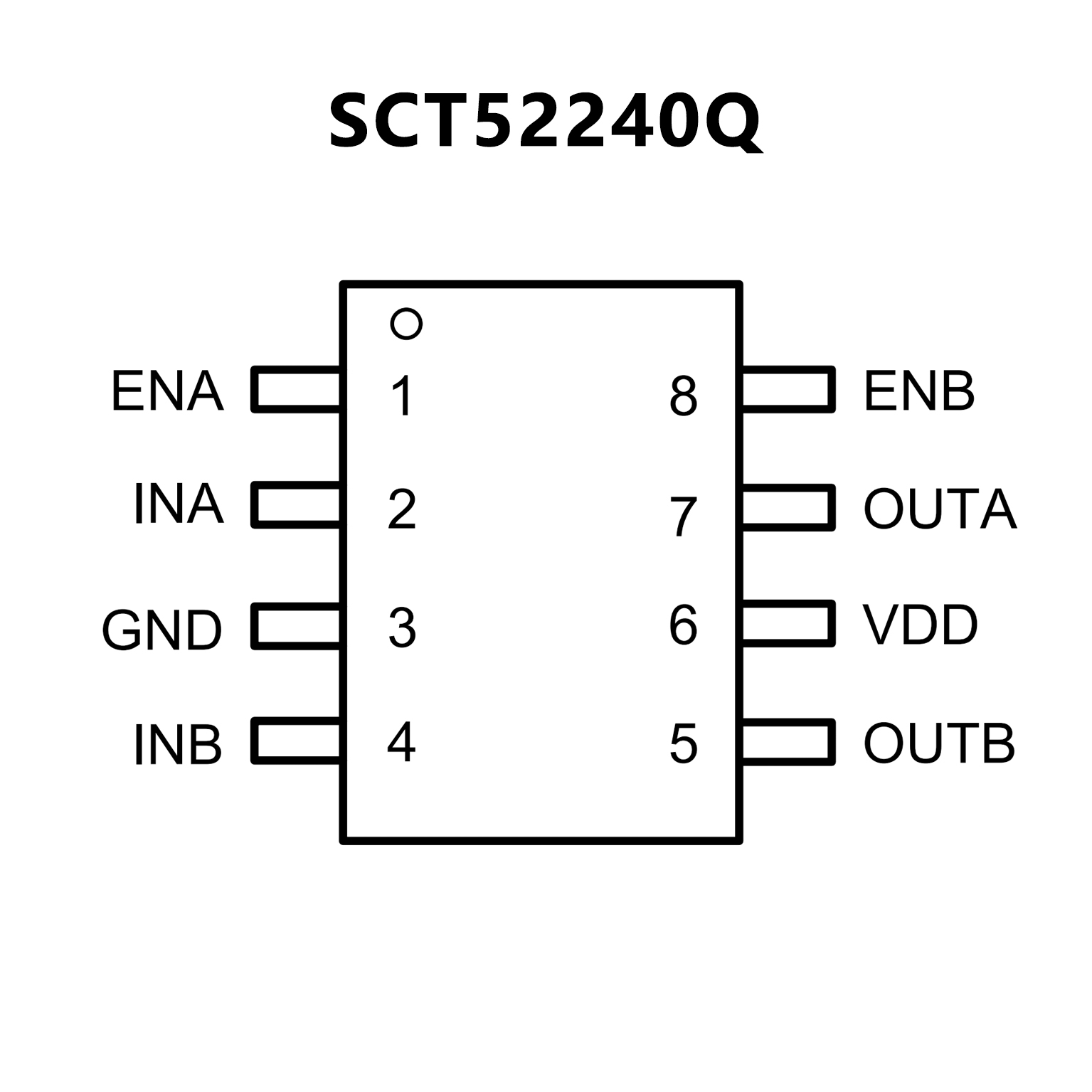

PIN CONFIGUTION
CROSS
UCC27524A-Q1 UCC27524A-Q1.pdf

No.14422

FEATURES

• Qualified for automotive applications

• AEC-Q100 qualified with the following results
  – Device temperature grade 1
• Industry-standard pin out
• Two independent gate-drive channels
• 5A peak source and sink-drive current
• Independent enable function for each output
• TTL and CMOS-compatible logic threshold
  independent of supply voltage
• Hysteretic-logic thresholds for high-noise immunity
• Ability to handle negative voltages (–5V) at inputs
• Inputs and enable pin-voltage levels not restricted
  by VDD pin bias supply voltage
• 4.5V to 18V single-supply range
• Outputs held low during VDD-UVLO, (ensures
  glitch-free operation at power-up and power-down)
• Fast propagation delays (17ns typical)
• Fast rise and fall times (6ns and 10ns typical)
• 1ns typical delay matching between 2-channels
• Ability to parallel two outputs for high-drive current
• Outputs held in low when inputs are floating
• SOIC-8 and VSSOP-8 PowerPad™ package options
• Operating temperature range of –40°C to 150°C

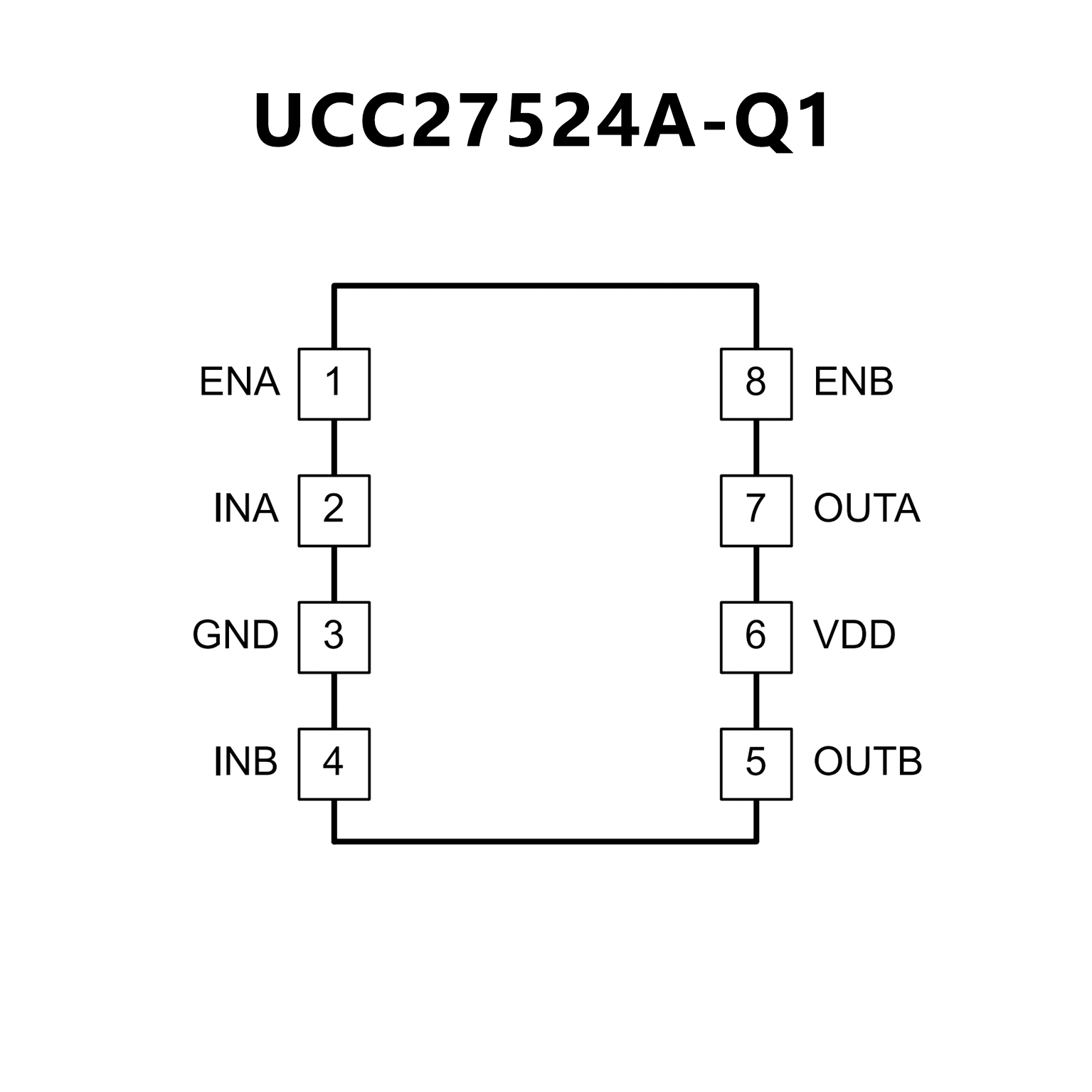

PIN CONFIGUTION
