Ultra-Low Capacitance 1-Channel ESD Protection, SGM05UB1B3 Replace ESD341.
SGM05UB1B3
SGM05UB1B3.pdf
SGM05UB1B3.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
• Working Voltage: 5V (MAX)
• Rated Peak Pulse Current: 4.2A
• Channel Input Capacitance: 0.5pF (TYP)

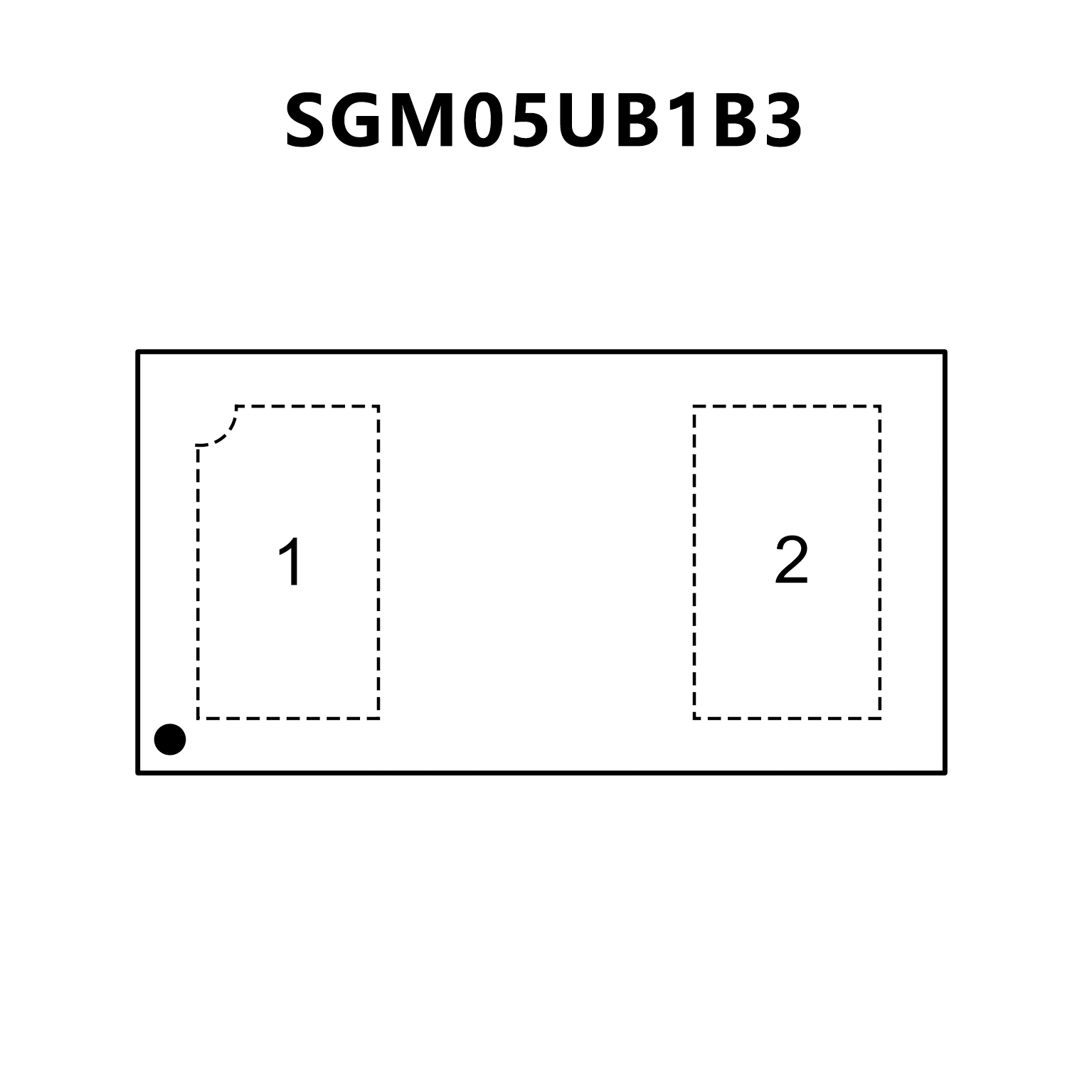

PIN CONFIGUTION
CROSS
FEATURES
• IEC 61000-4-2 level 4 ESD protection
– 30 kV contact discharge
– 30 kV air gap discharge
• IEC 61000-4-5 surge protection
– 5.4 A (8/20 µs)
• IO capacitance:
– 0.66 pF (typical)
• DC breakdown voltage: ±6.2 V (typical)
• Ultra low leakage current: 100 nA (maximum)
• Low ESD clamping voltage: 10.2 V at 16 A TLP
• Low insertion loss: 5 GHz (–3 dB bandwidth, DPL)
• Supports high speed interfaces up to 3.4 Gbps
• Industrial temperature range: –40°C to +125°C
• Space-saving industry standard 0201 footprint
(0.6 mm × 0.3 mm × 0.3 mm)

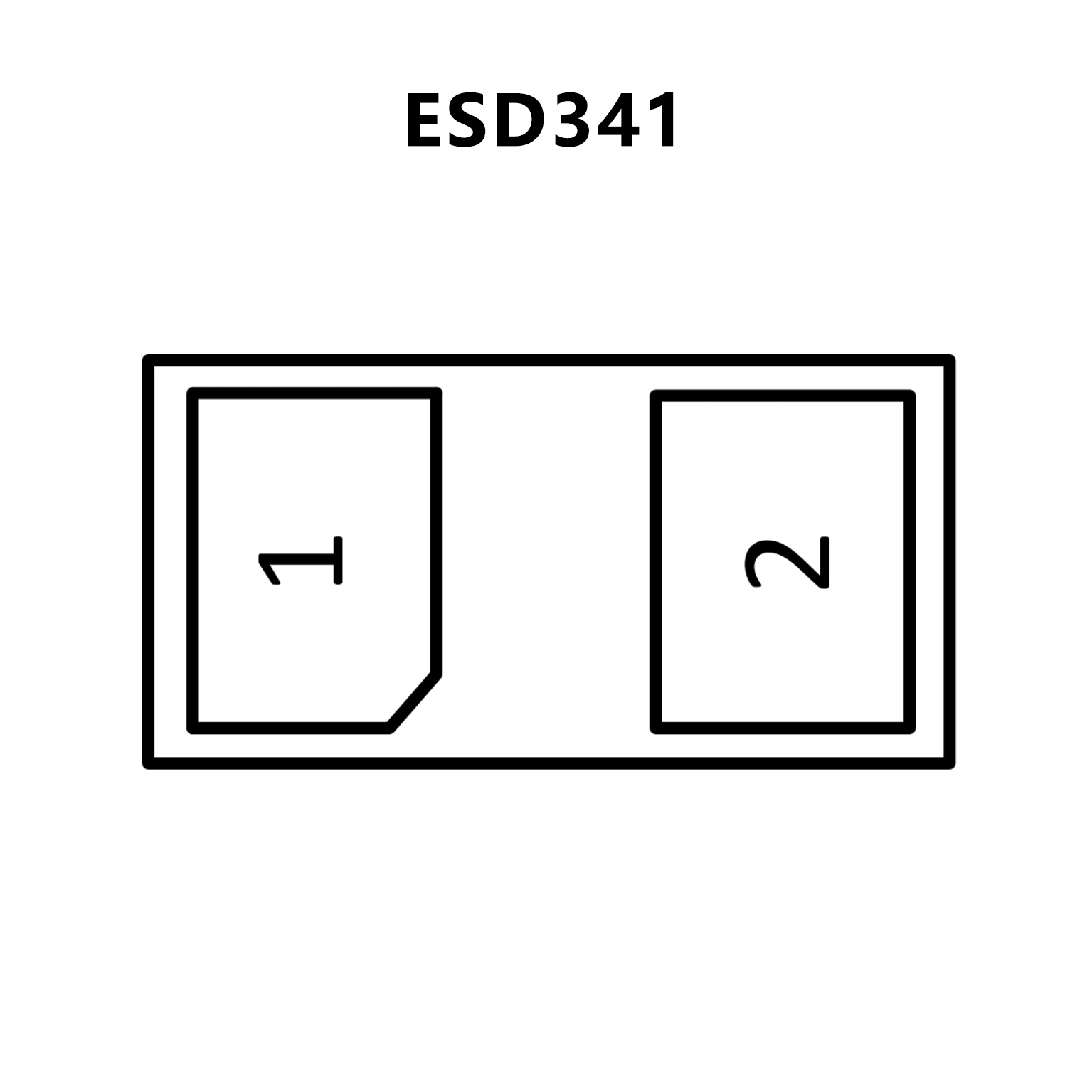

PIN CONFIGUTION
